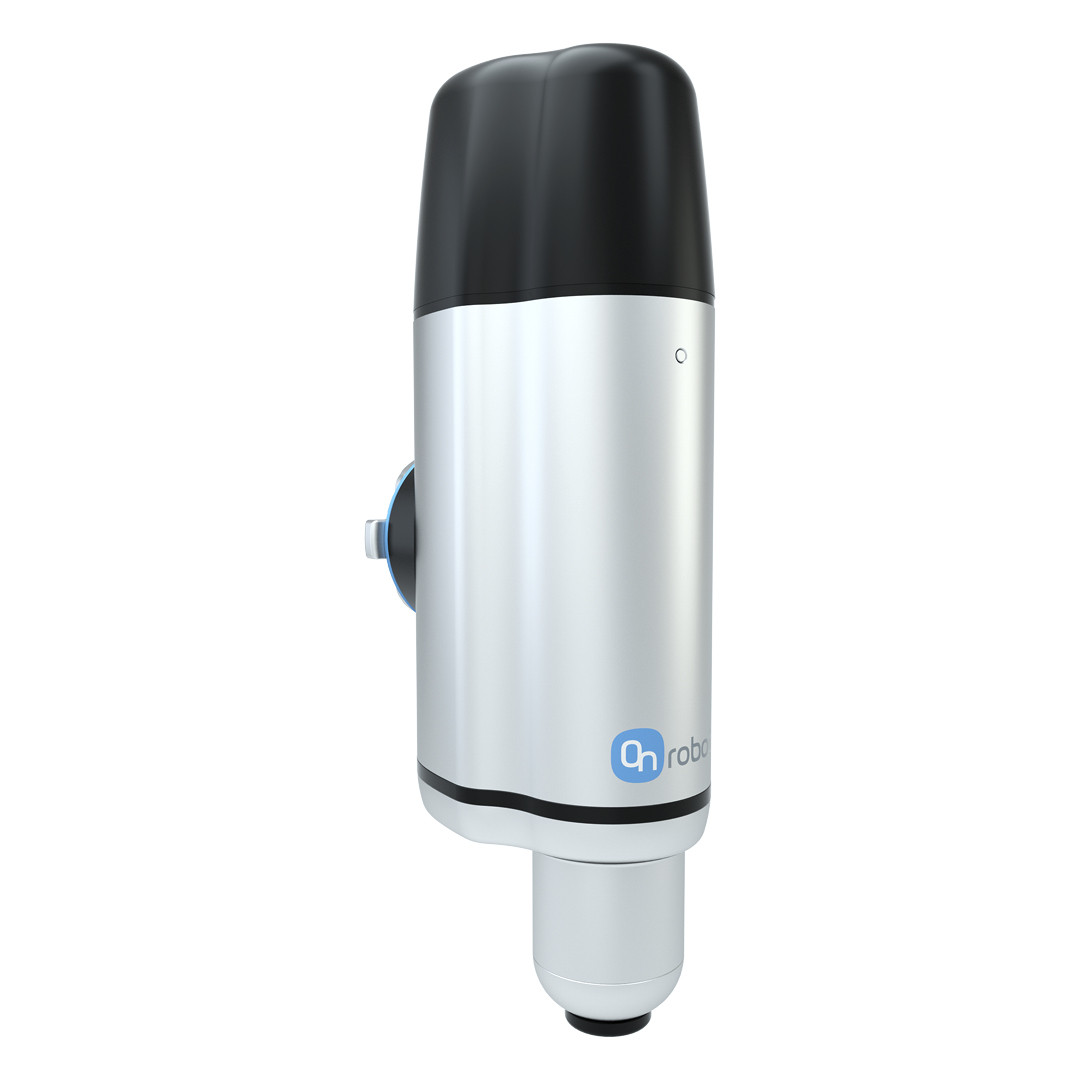

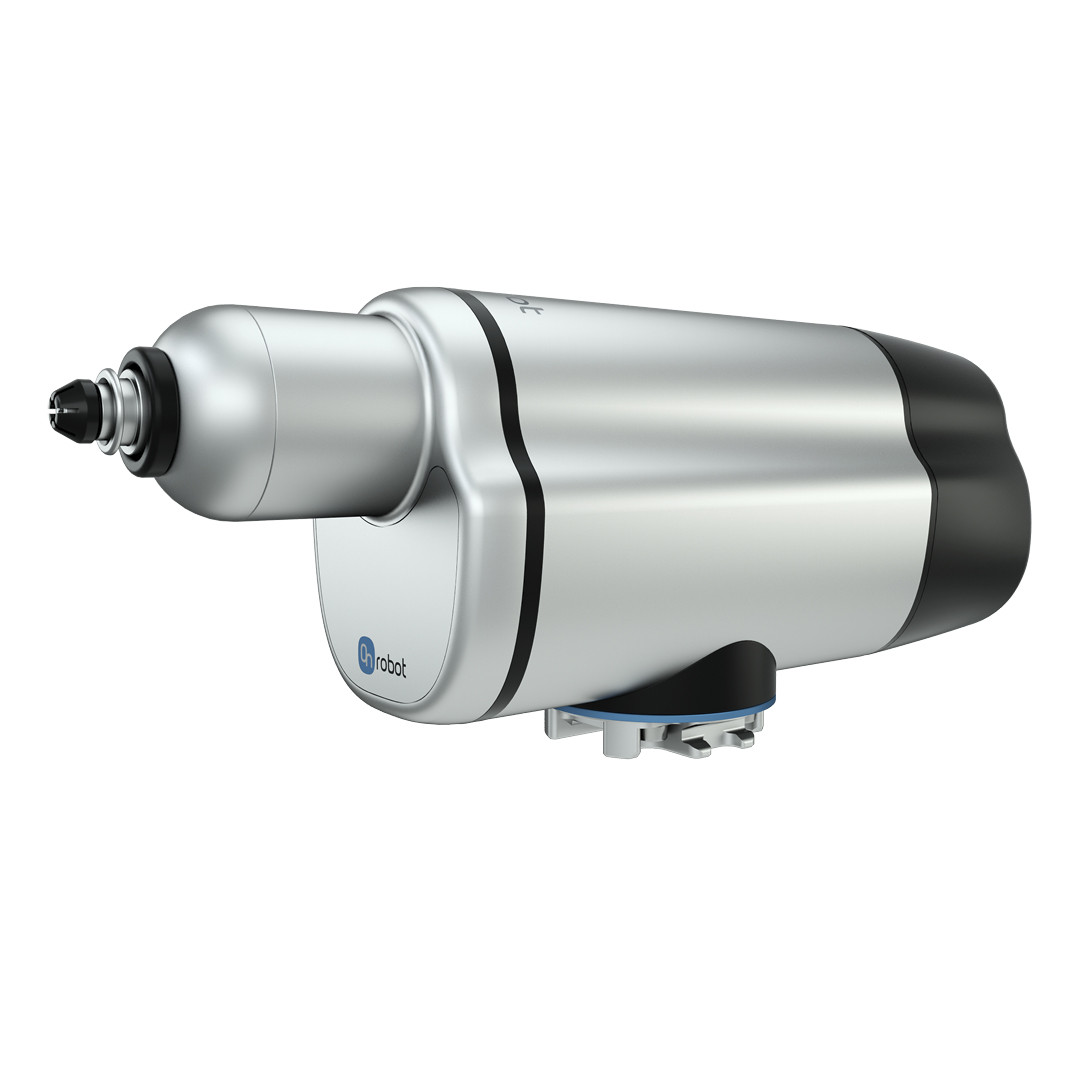

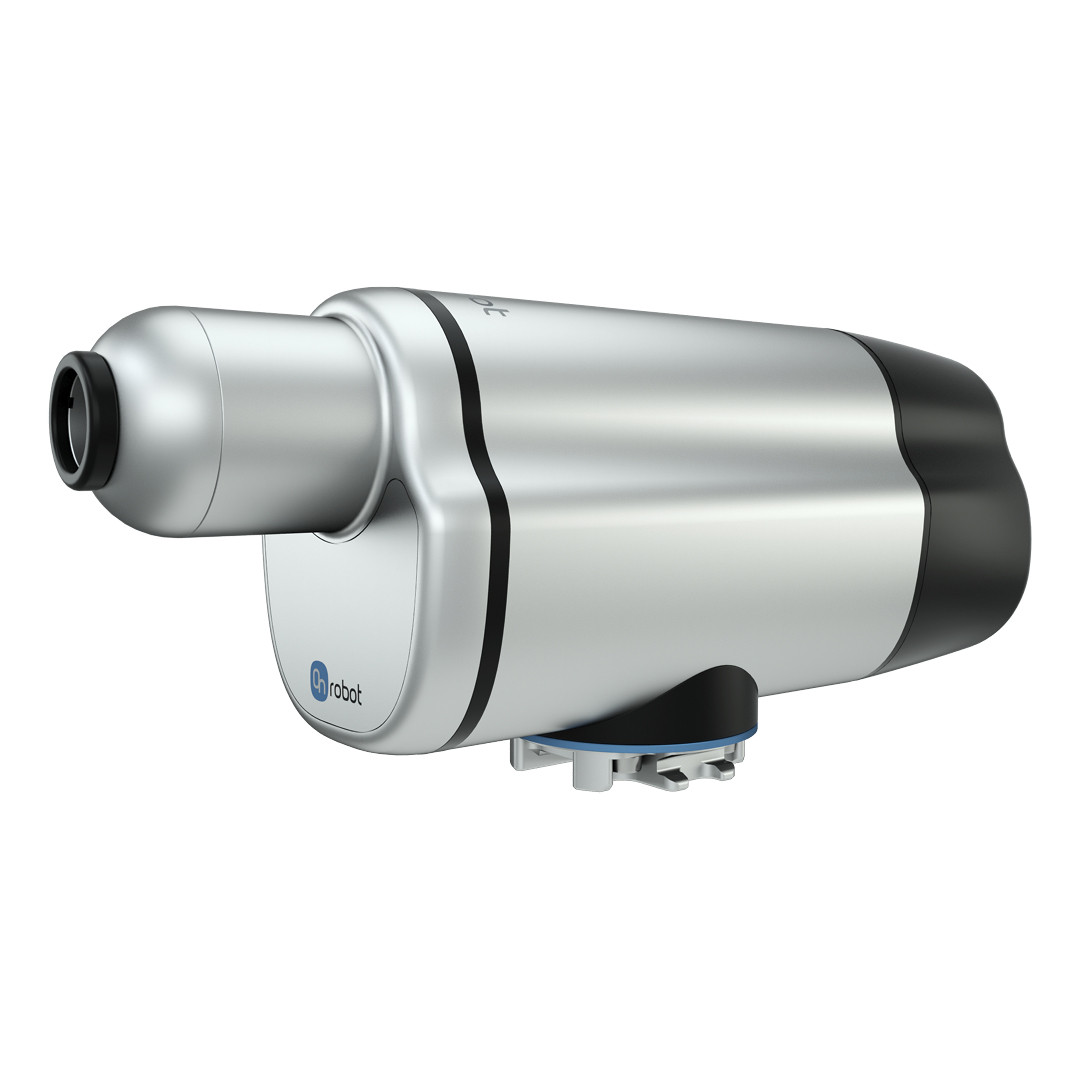

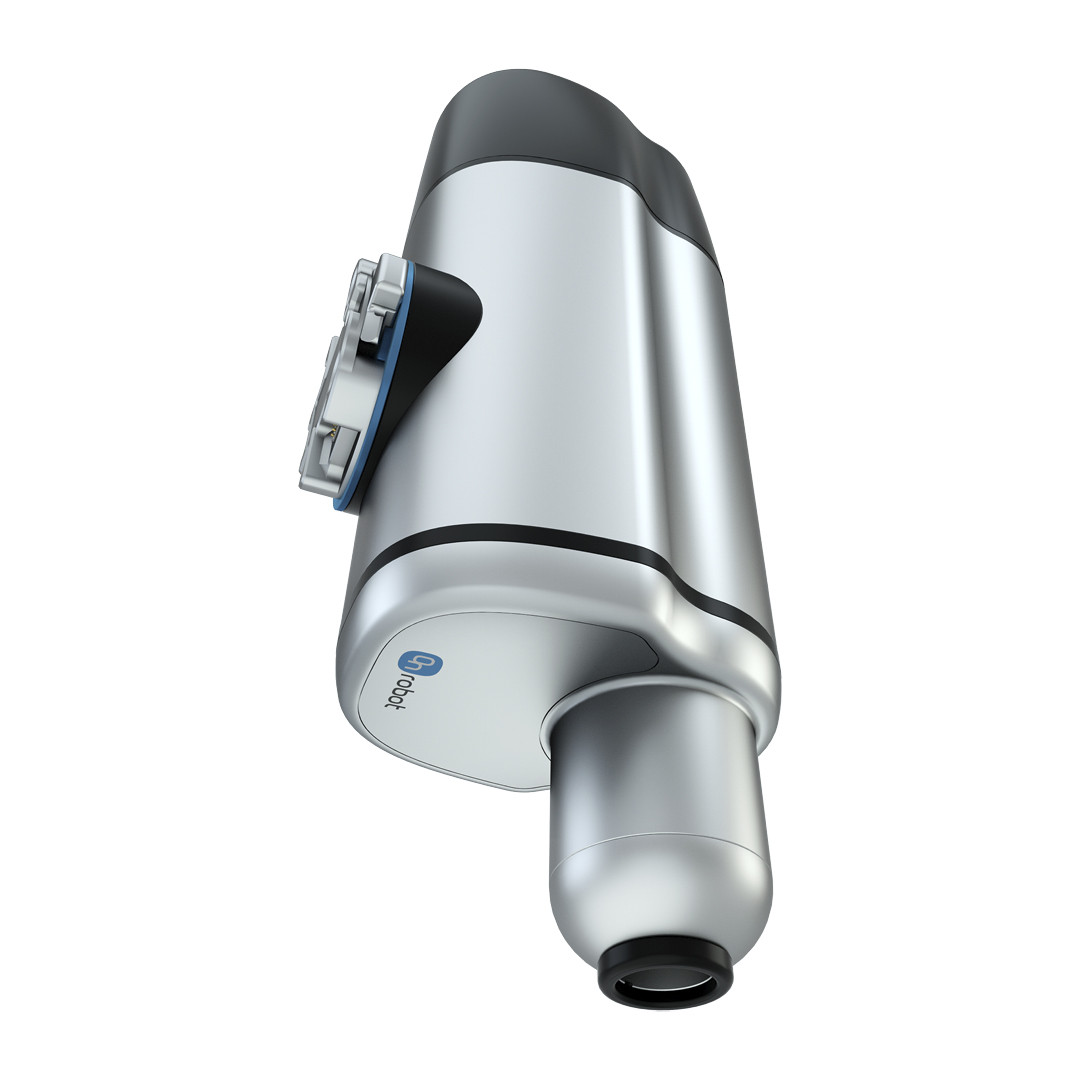

Electric Screwdriver
Manufacturer: OnRobot
Electric screwdriver.
Estimated delivery time: 1 week.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily. Please, consult us.
If this is not available, the components must be added: Quick Changer and Tool Flange for the correct operation of the gripper.
5.995,00 €
Available on backorder
Available on backorder

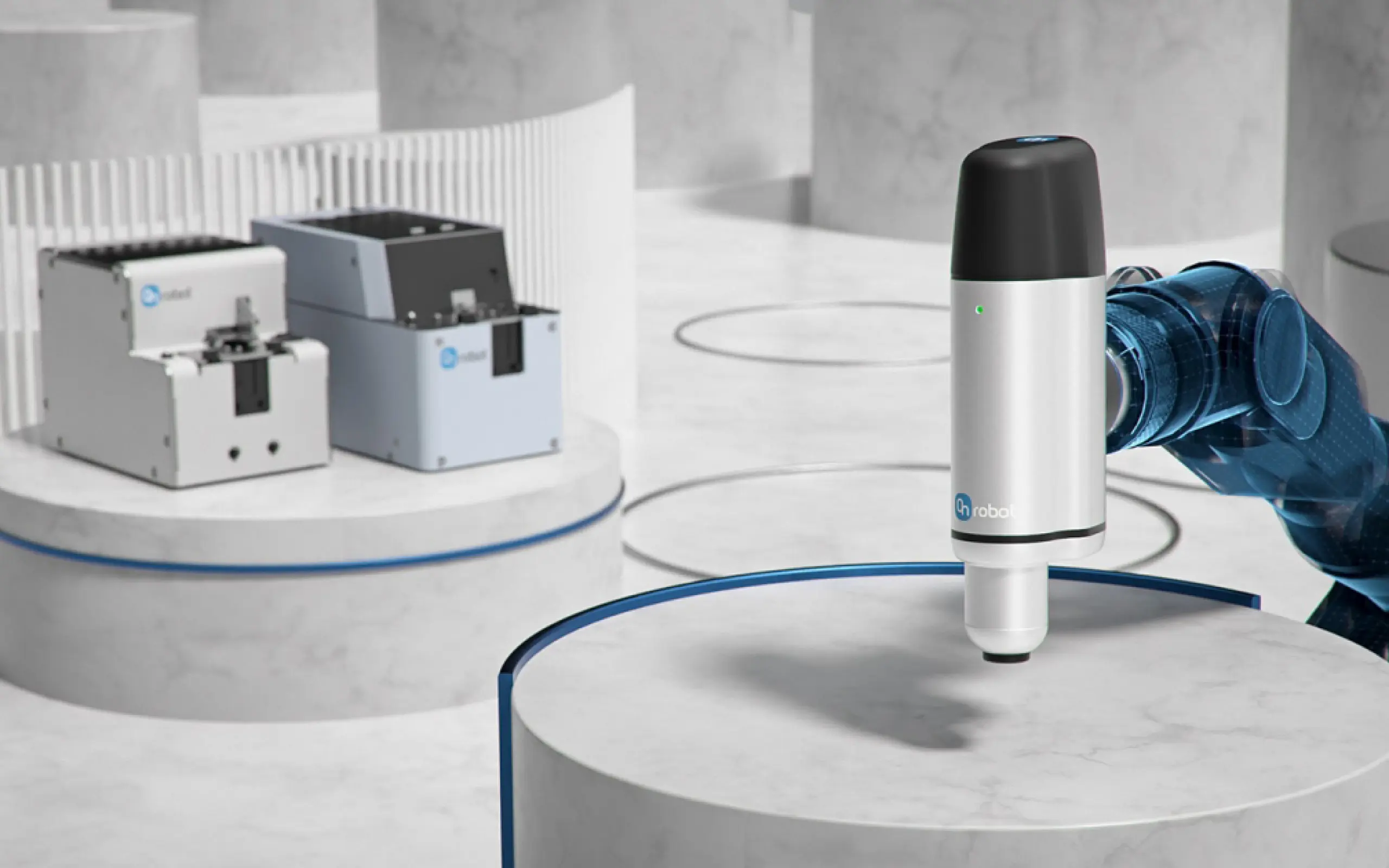

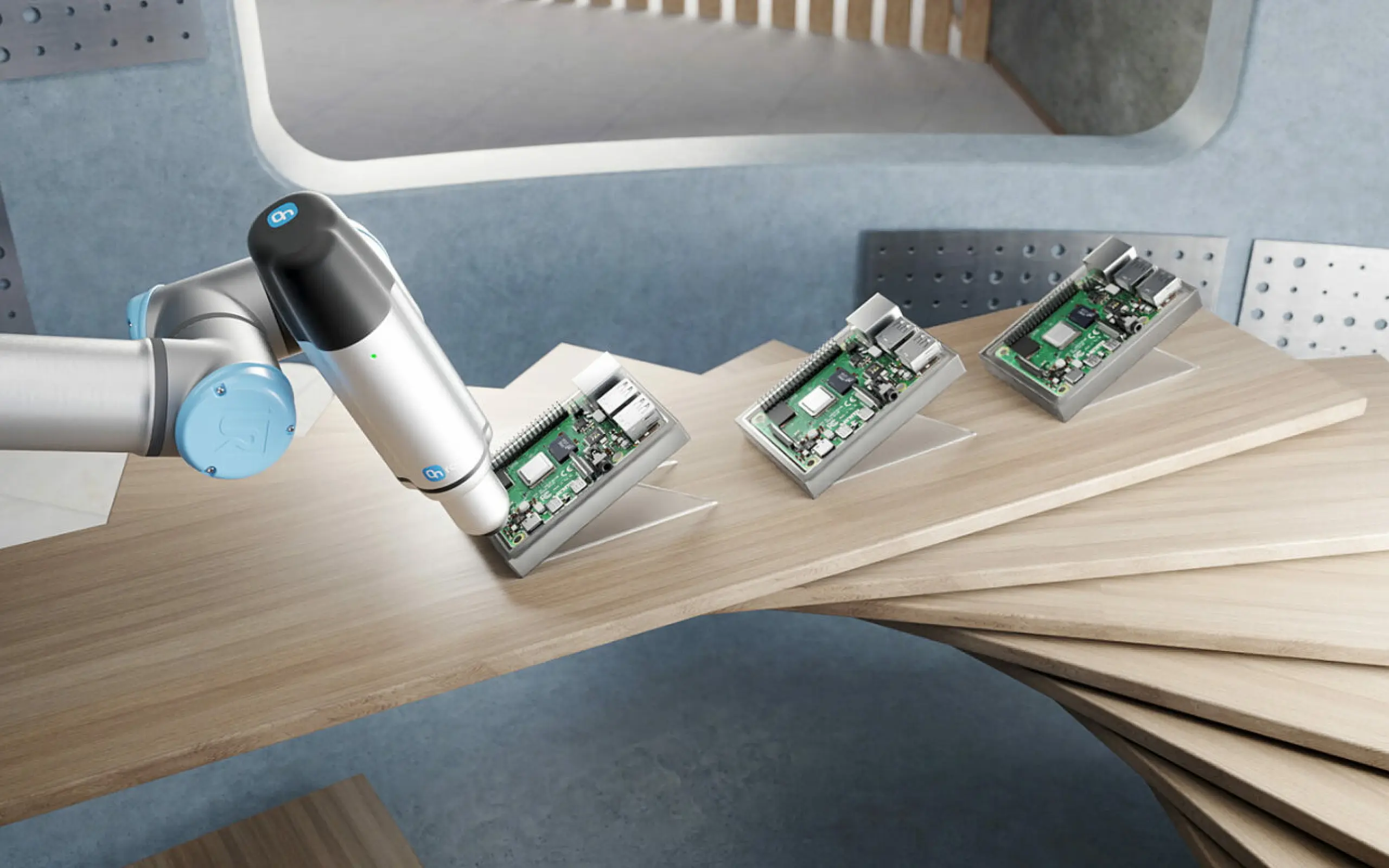

The OnRobot Electric Screwdriver is an intelligent tool for automating screwdriving/unscrewing applications covering a wide range of screw sizes, from M1.6 to M6, and up to 50 mm long.
Easy setup and programming allows for intuitive integration and it is ready to use on any robotic arm from the leading brands.
It also includes protection features that make it suitable for collaborative applications with screw lengths up to 35 mm. The safety stop is automatically activated if a screw is exposed to excessive force, with a warning light indicating the problem.
Main features
-
- Pre-defined configuration, simple programming and implementation
- Precise torque control range from 0.15 Nm to 5 Nm.

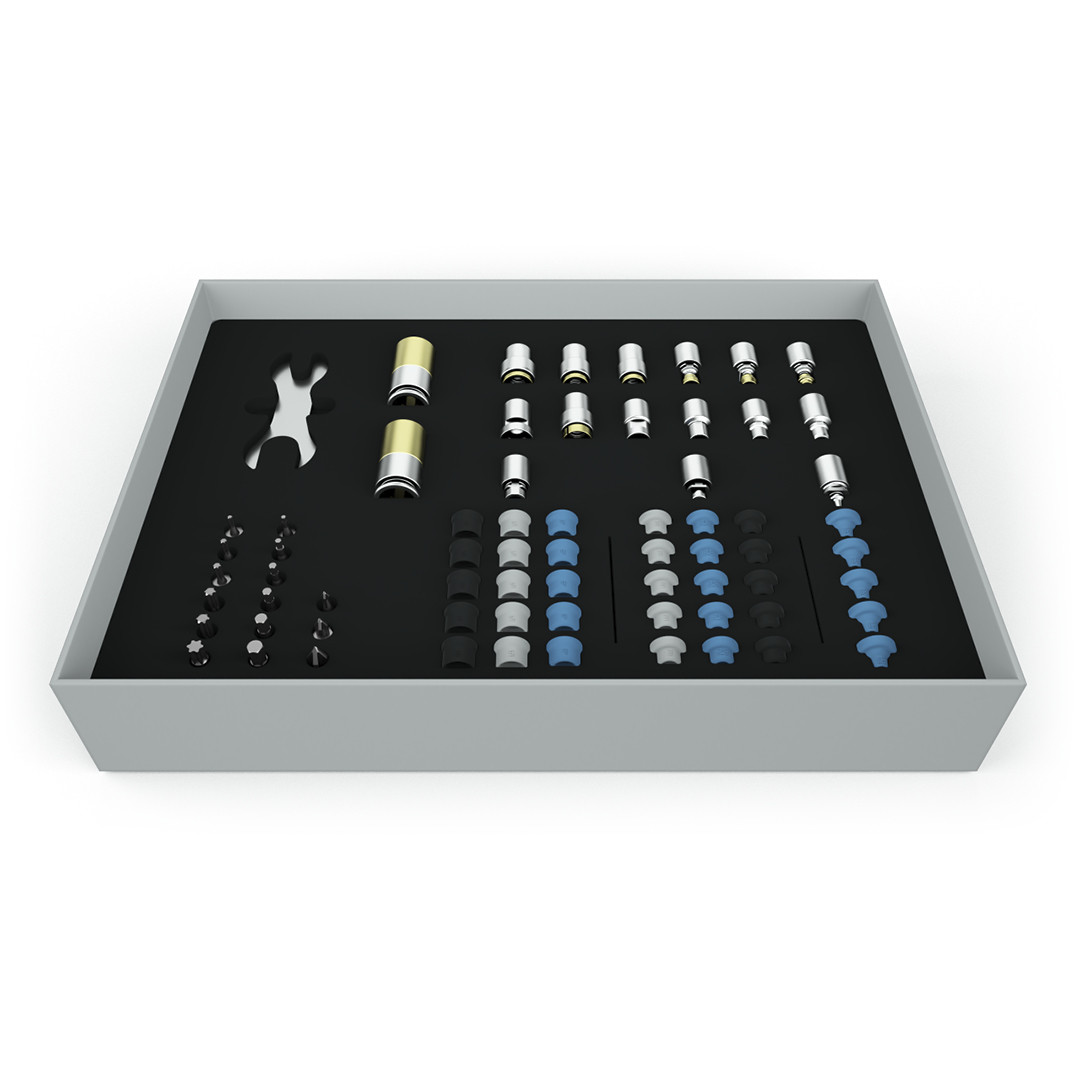

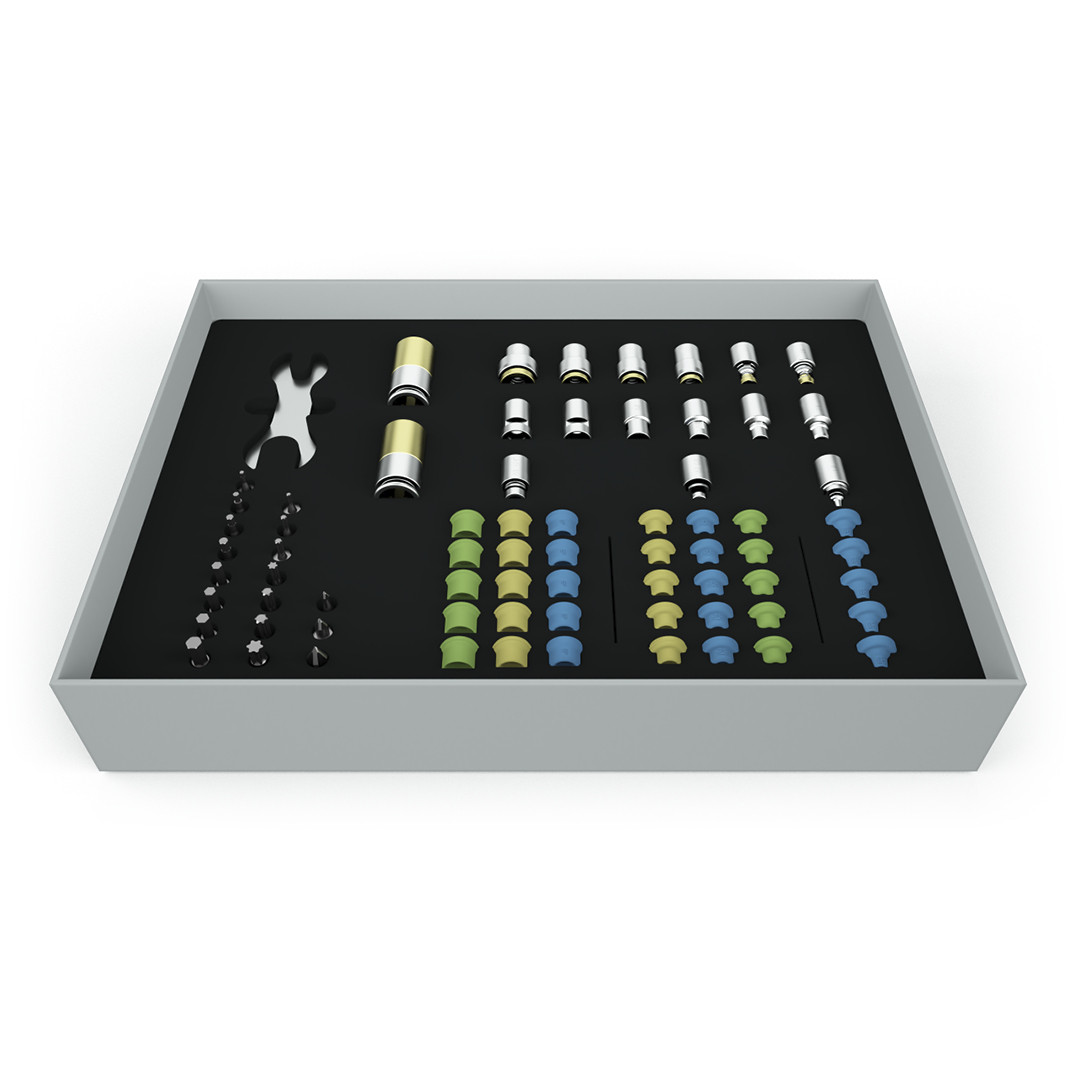

- Quick changeover within a wide range of screws
- Intelligent error detection
Applications
-

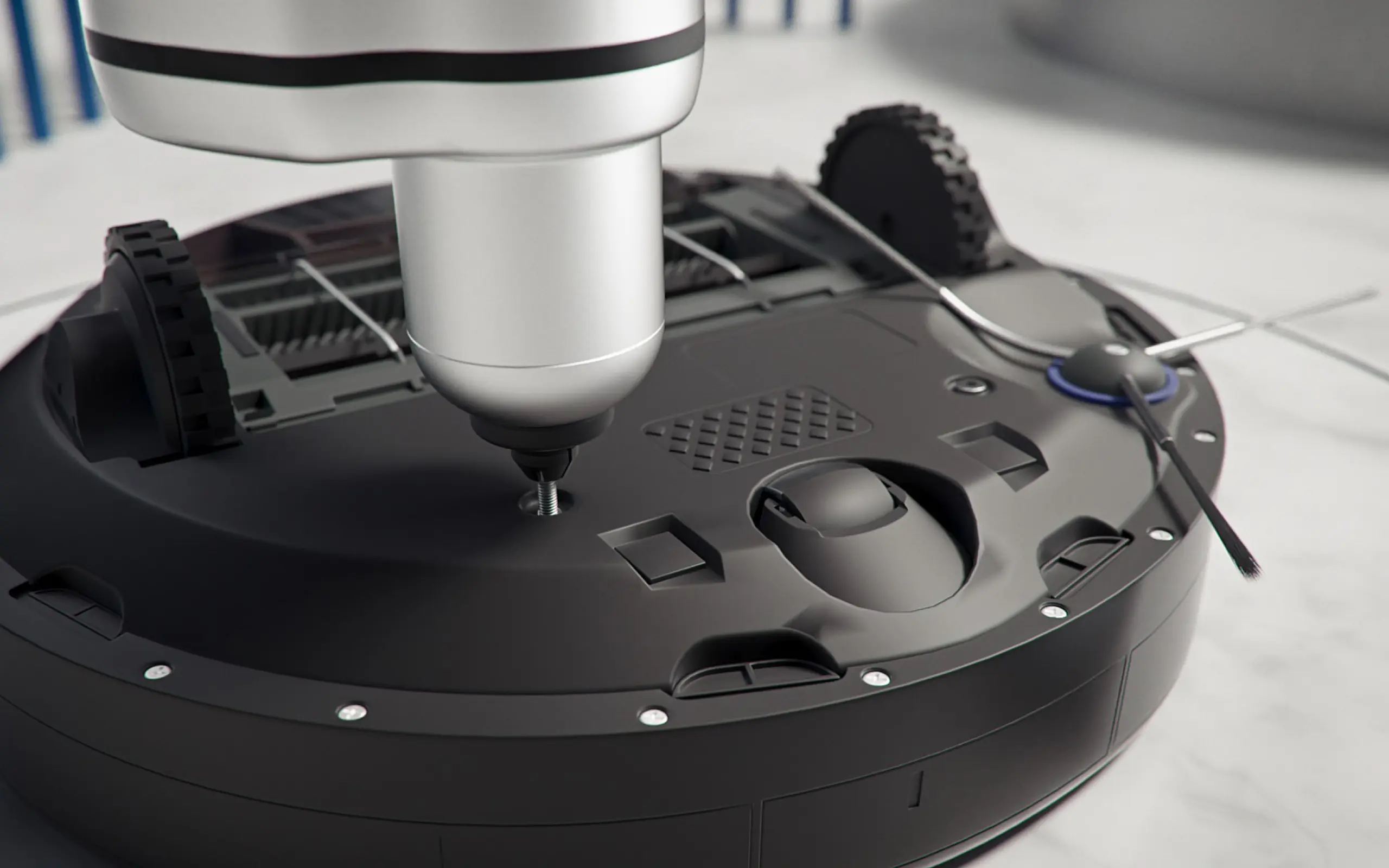

- Screwing / unscrewing
- Assembly
- Manufacturing
| Manufacturer | OnRobot |
| Model Nº | V 1.5 |
| Size | 308 x 86 x 114 mm |
| Accuracy | 0,04 - 3 Nm |
| Temperature | 5º C - 50º C / 95% |
| Operating Temperature | 0 °C - 50 °C |
| Power supply | Min 20 V / Typical 24 V / Max 25 V |
| Storage Temperature | 0 °C - 60 °C |
| Torque | 0,15 - 5 Nm |
| Weight | 2,5 kg |
| Current consumption | Min: 75 mA - Max: 4500 mA |
| Enclosure class | IP54 |
