Z1
Manufacturer: Unitree
Robotic arm.
Estimated delivery time: 4-6 weeks.
12.590,00 €

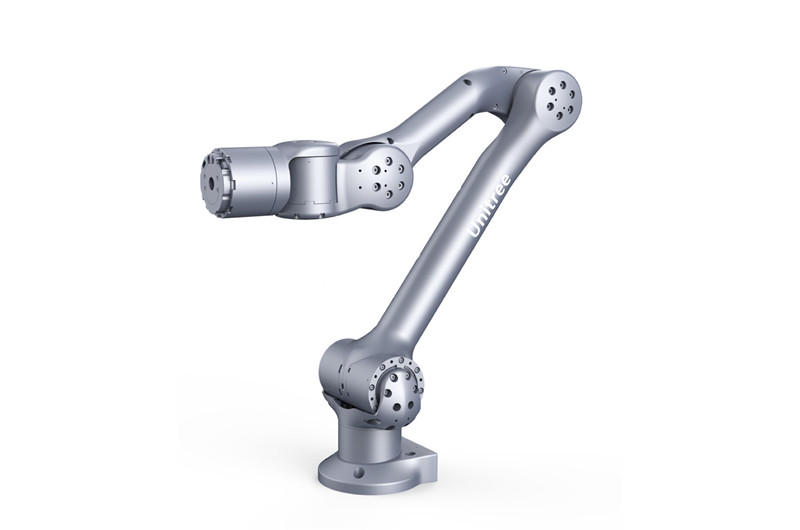

Unitree’s Z1 robotic arm features 6-axis harmonic force control and is adaptable to different mobile platforms, with a degree of dexterity and flexibility that enables it to perform complex tasks in different applications and scenarios.
Open Programming Interface and Extended Interface
The manipulator control program and control interface will be successively opened, and different actuators can be quickly replaced at the end of the manipulator.
Synergy

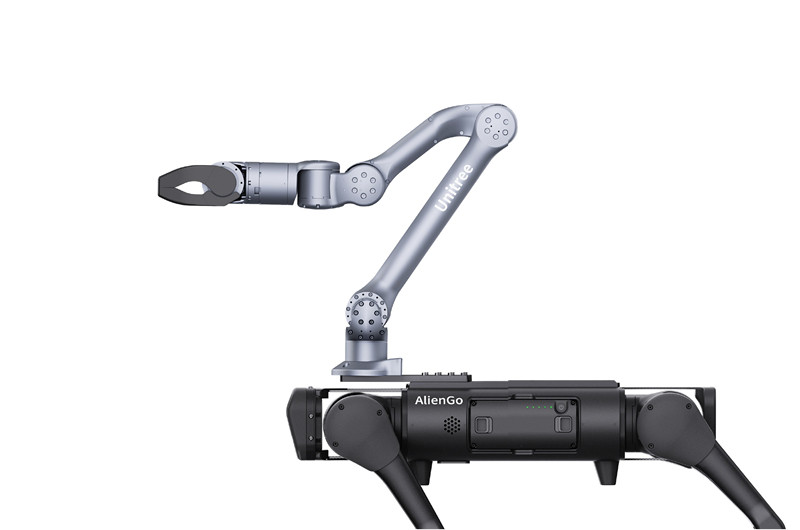

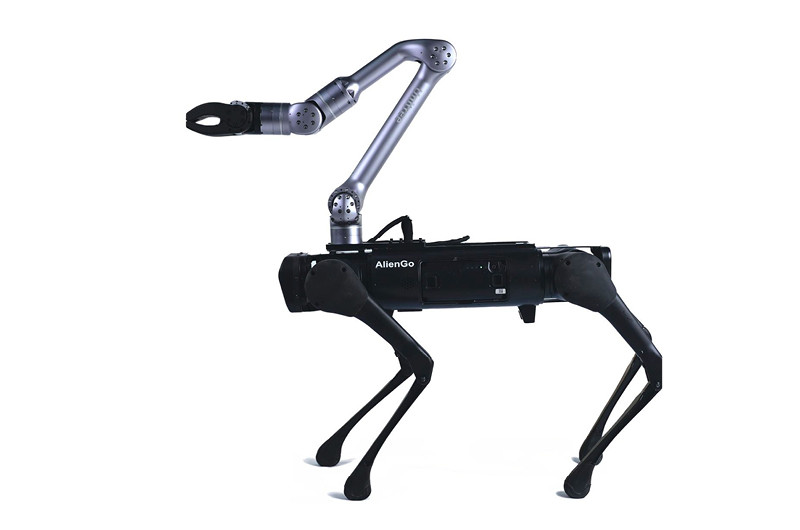

It can cooperate with Aliengo or B1 robot and other mobile robots to complete complex tasks and explore various application scenarios.

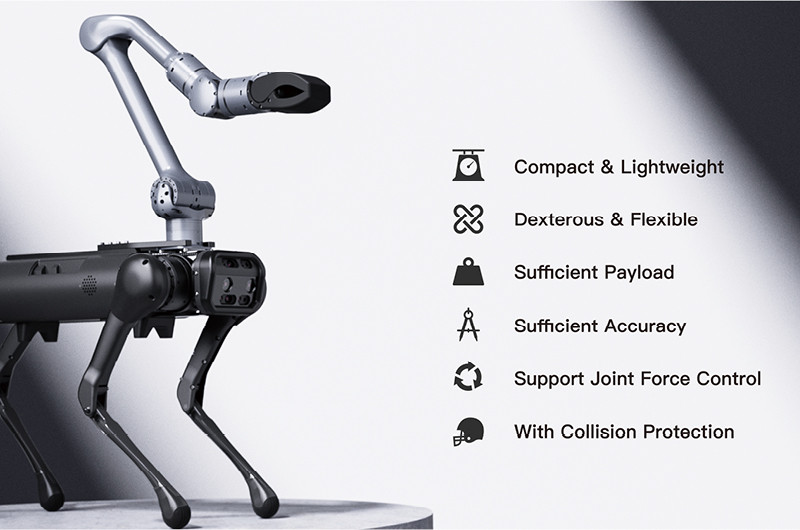

Main features
- Compact & Lightweight.
- Dexterous & Flexible.
- With Collision Protection.
- Maximum range of motion for each joint: J1: ± 150°; J2: 0-180°; J3: -165-0°; J4: ± 80°; J5: ± 85°; J6: ± 160º.
- Reduction ratio more than 60.
- Joint force control accuracy~0.2N.M.
- Mechanical arm body degree of freedom: 6.
- Load: 2 kg.
- Repetitive positioning accuracy:~0.1mm.
- Equipped with sensitive collision detection function.
- B94 Supports position control and force control.
Applications
-
- Research and academics.
- Manipulation.
- Handling on mobile platforms.
- Logistics.
| Manufacturer | Unitree |
| Model Nº | Z1 PRO |
| Accuracy | ~0.1mm |
| Interface | Ubuntu |
| Communication Protocol | Ethernet |
| Weight | 4,5 kg |
| Voltage | 24 V |
| Strength | MAX 500w |
| Payload | 3 kg |
| Reach | Maximum reach 740 mm |
| DOF | 6 |
