VGP20
Manufacturer: OnRobot
Vaccum gripper.
Estimated delivery time: 1 week.
Recommended product for UR arms. For another arm model, please consult us.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily.
.
4.295,00 €

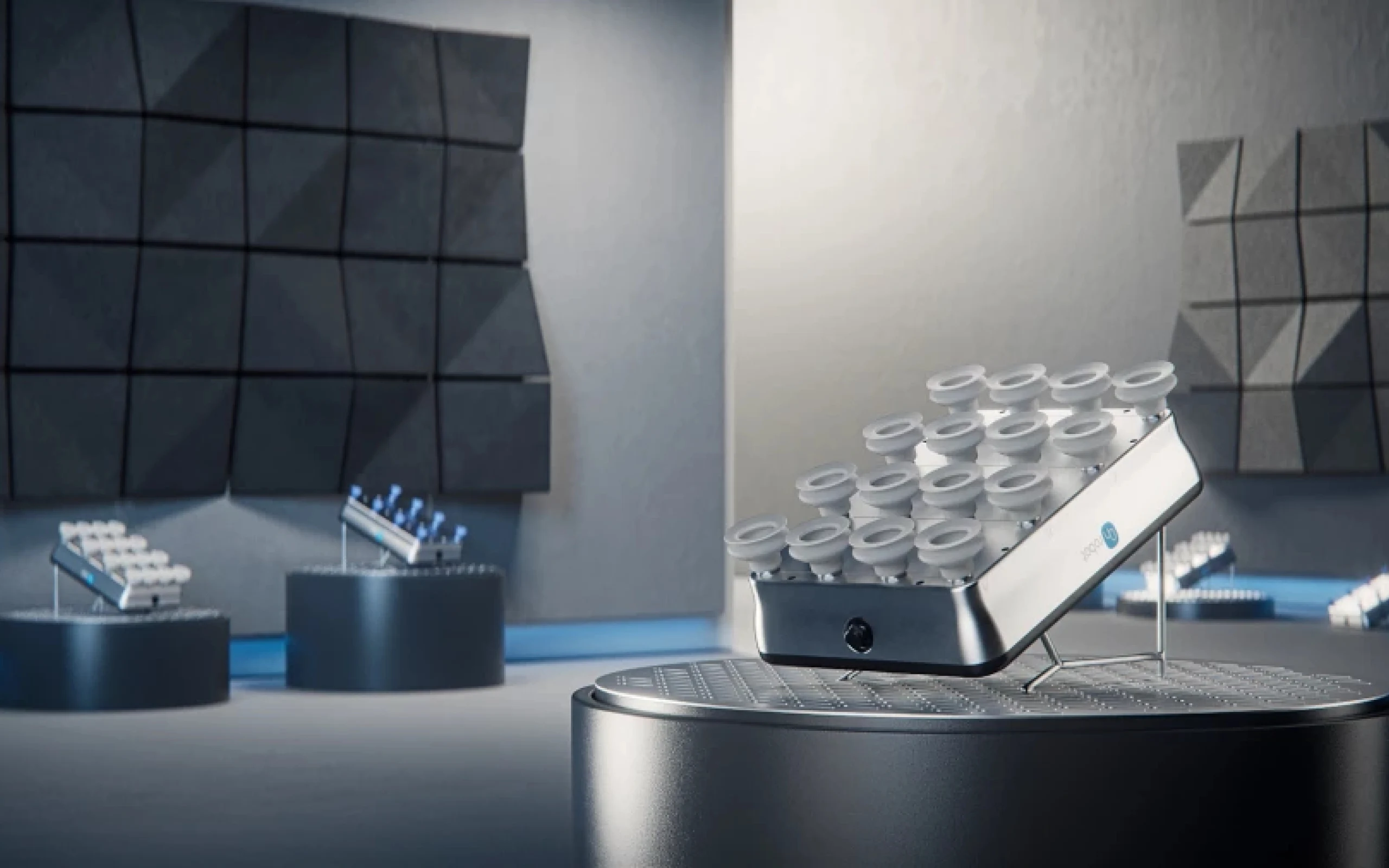

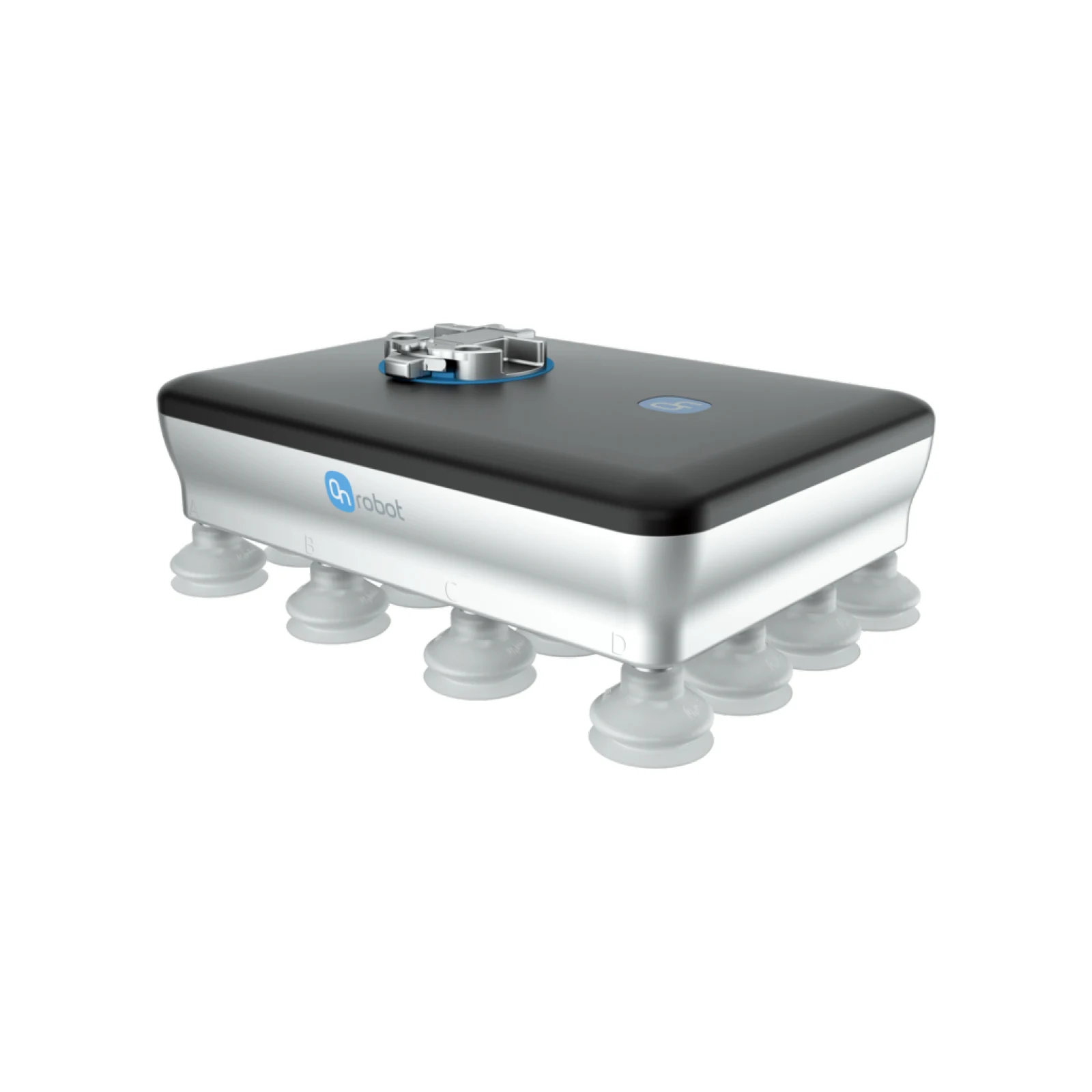

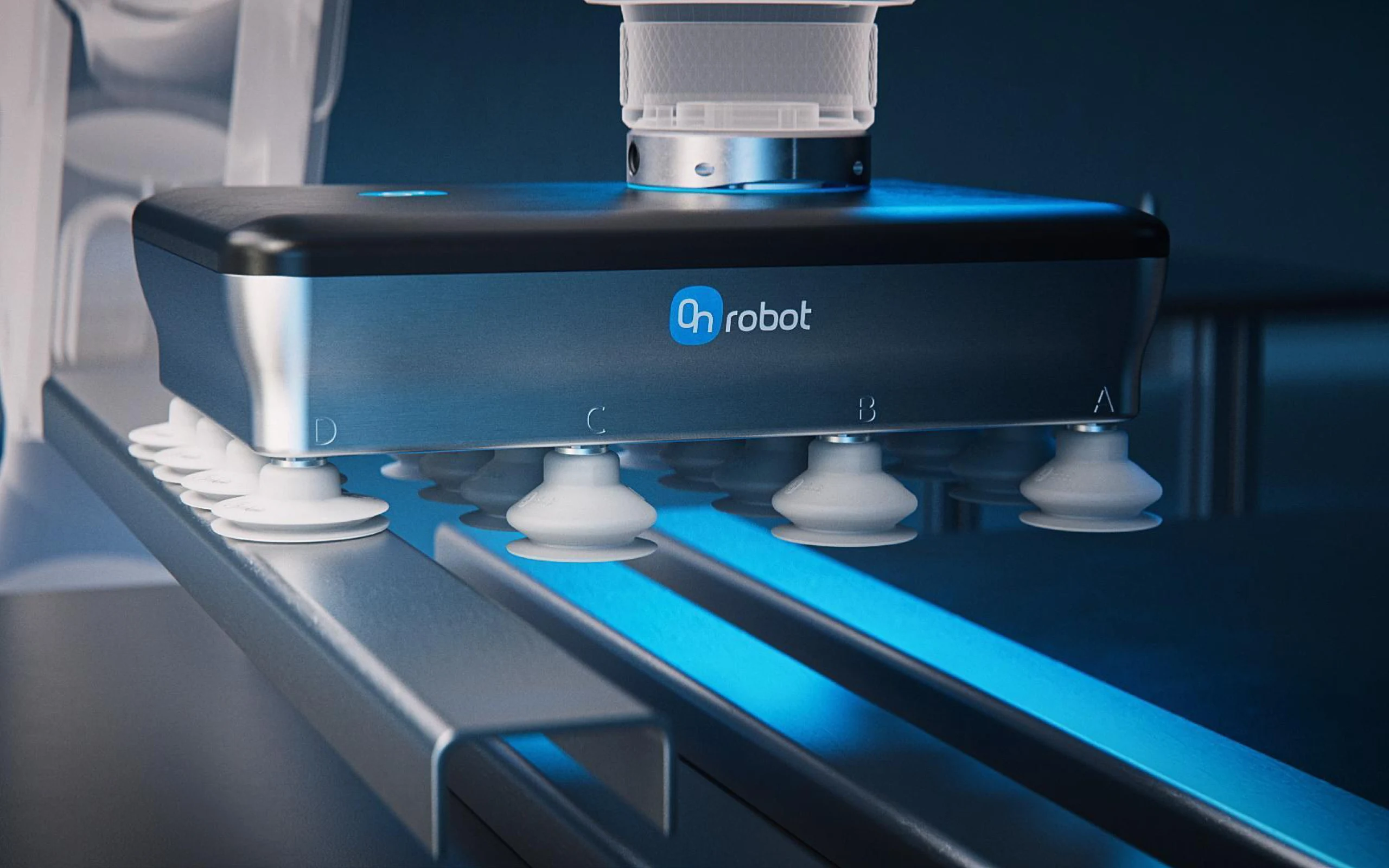

OnRobot’s VGP20 is a powerful vacuum gripper designed to handle large and heavy objects in industrial applications.
With a load capacity of up to 20 kg, this gripping system is ideal for demanding tasks such as palletizing, packaging and material transfer. Its versatile design allows suction to be adjusted to accommodate objects of various sizes and materials, including porous objects.

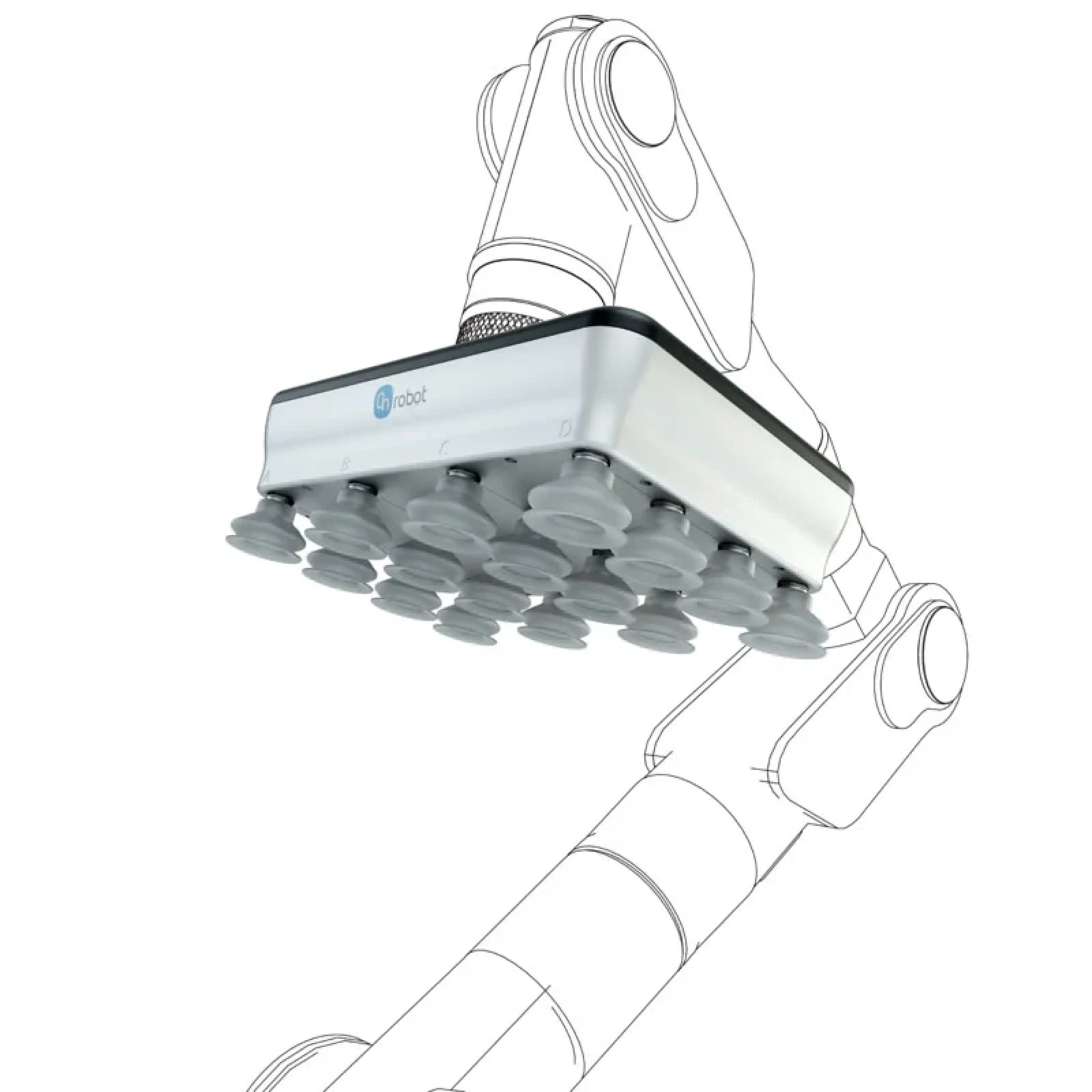

Compatible with multiple collaborative robots, the VGP20 offers a robust and efficient solution for automating processes in industrial environments.

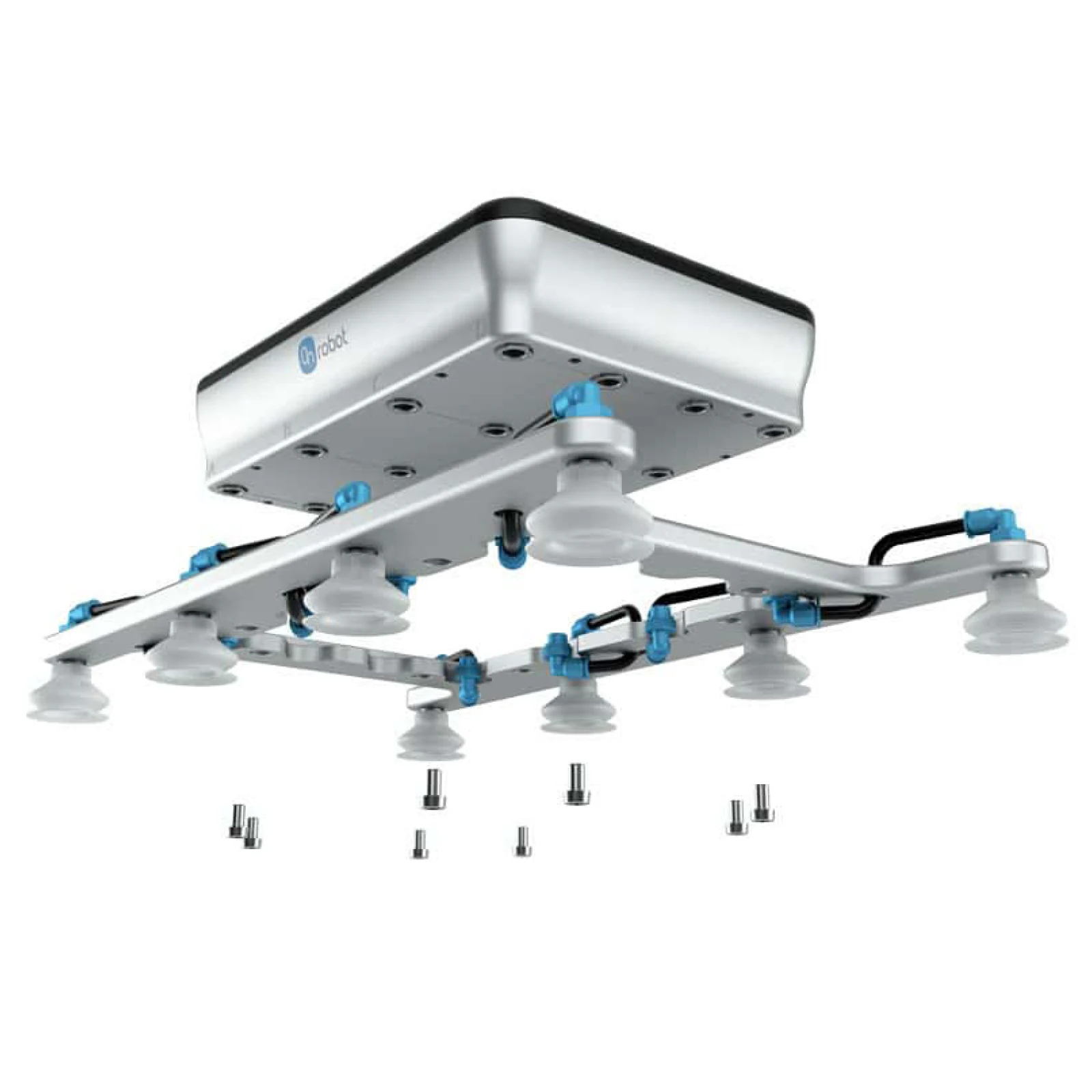

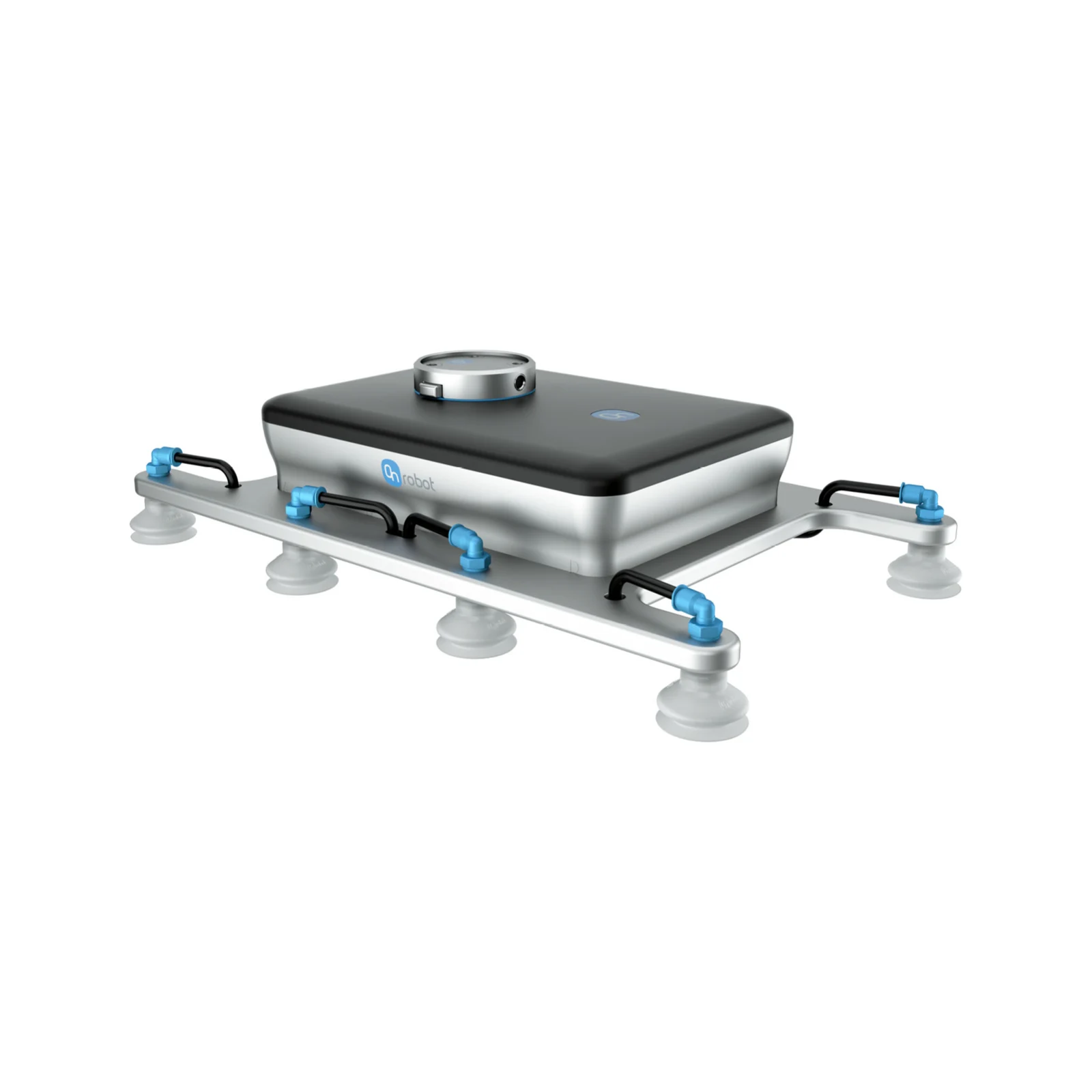

In addition, it has multiple customization possibilities and different interchangeable suction cup options to suit application needs.
Main features
-
- High load capacity.
- Versatile.
- Adjustable control.
- Universal compatibility.
Applications
-

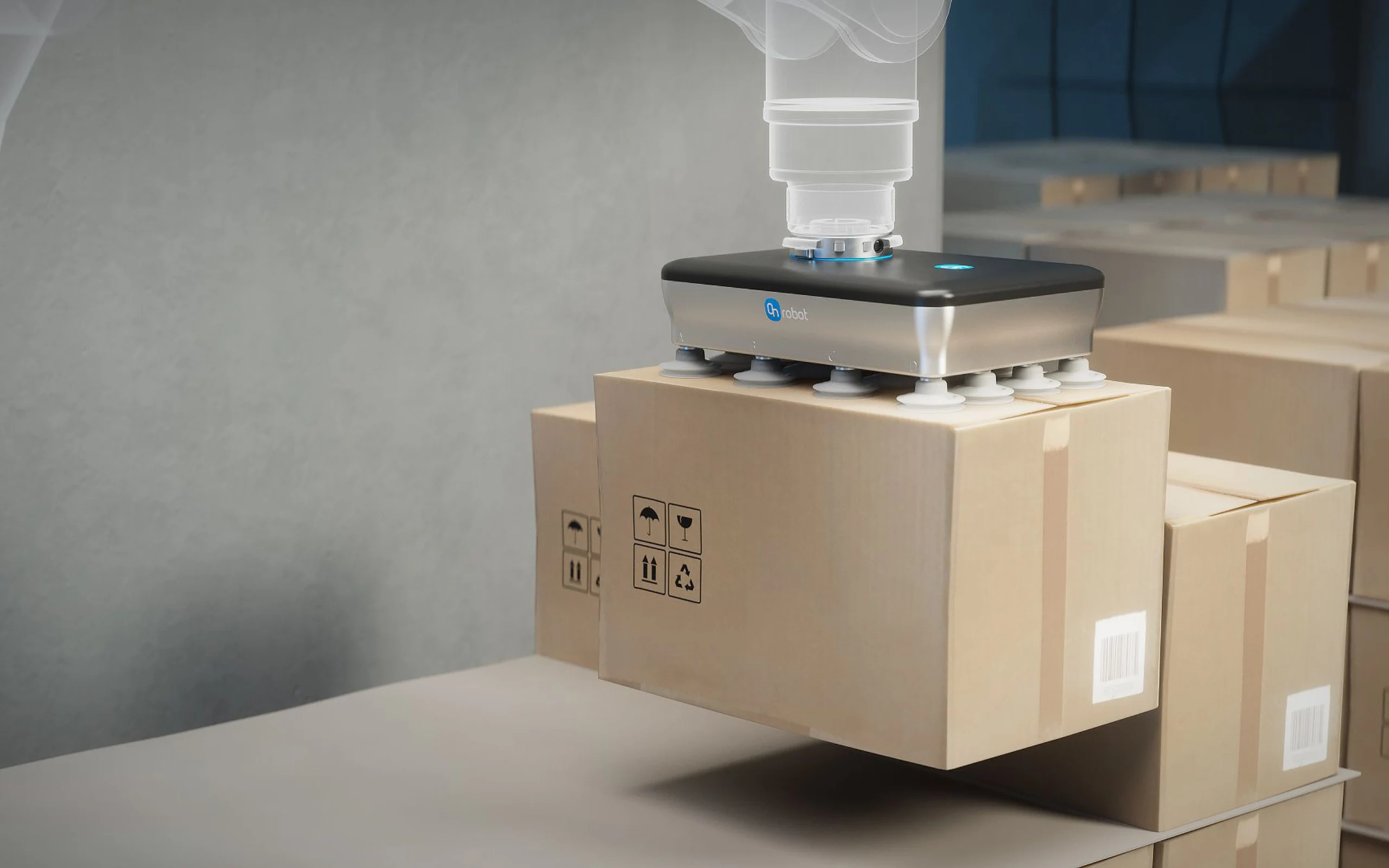

- Palletizing.
- Packaging.
- Handling of heavy objects.
| Manufacturer | OnRobot |
| Model Nº | VGP20 |
| Operating Temperature | 0 °C - 50 °C |
| Size | 264 x 184 x 92 mm |
| Power supply | Min 20.4 V / Typical 24 V / Max 28.8 V |
| Vacuum | 5 % - 80 % Vacuum -0.05 - -0.810 Bar 1.5 - 24 inHg |
| Weight | 5,62 lb |
| Enclosure class | IP54 |
| Payload | 20 kg |
