TIM571
Manufacturer: SICK
2D LiDAR sensor.
Estimated delivery time: 2 weeks.
2.100,00 €

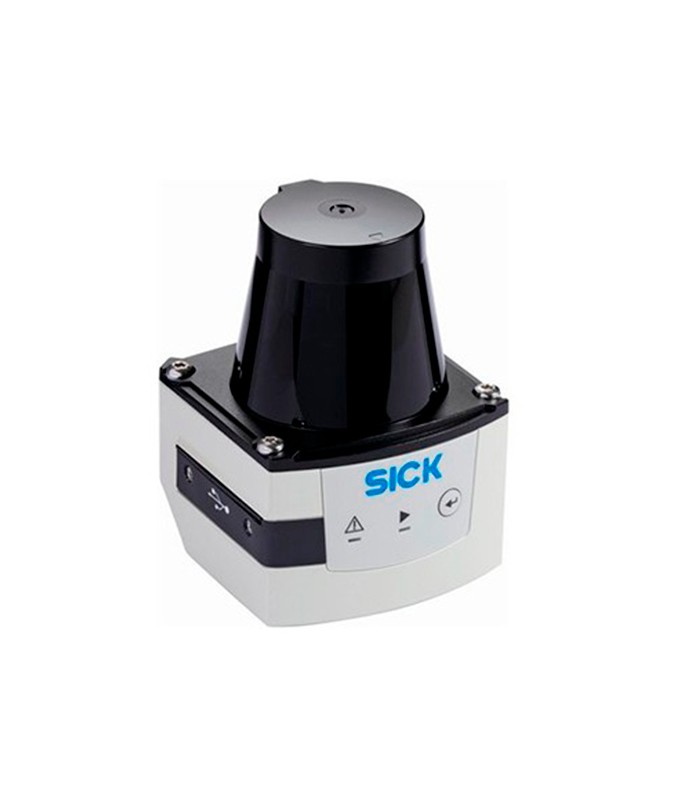

The TiM571 sensor is a non-contact range solution from Sick. Thanks to its HDDM technology, the TiM571 can monitor large areas in indoor and outdoor applications, independent of surface or ambient light, in a compact and robust housing and provides accurate measurement data from the scanned surface, allowing additional information such as the size and shape of objects to be determined.
The integrated Ethernet interface facilitates remote deployment and maintenance.
Main features
- Ethernet interface facilitates remote deployment and maintenance.
- Rugged housing with IP 67 protection rating.
- Compact design with a housing height of only 86 mm maximum.
- Integrated Ethernet interface.

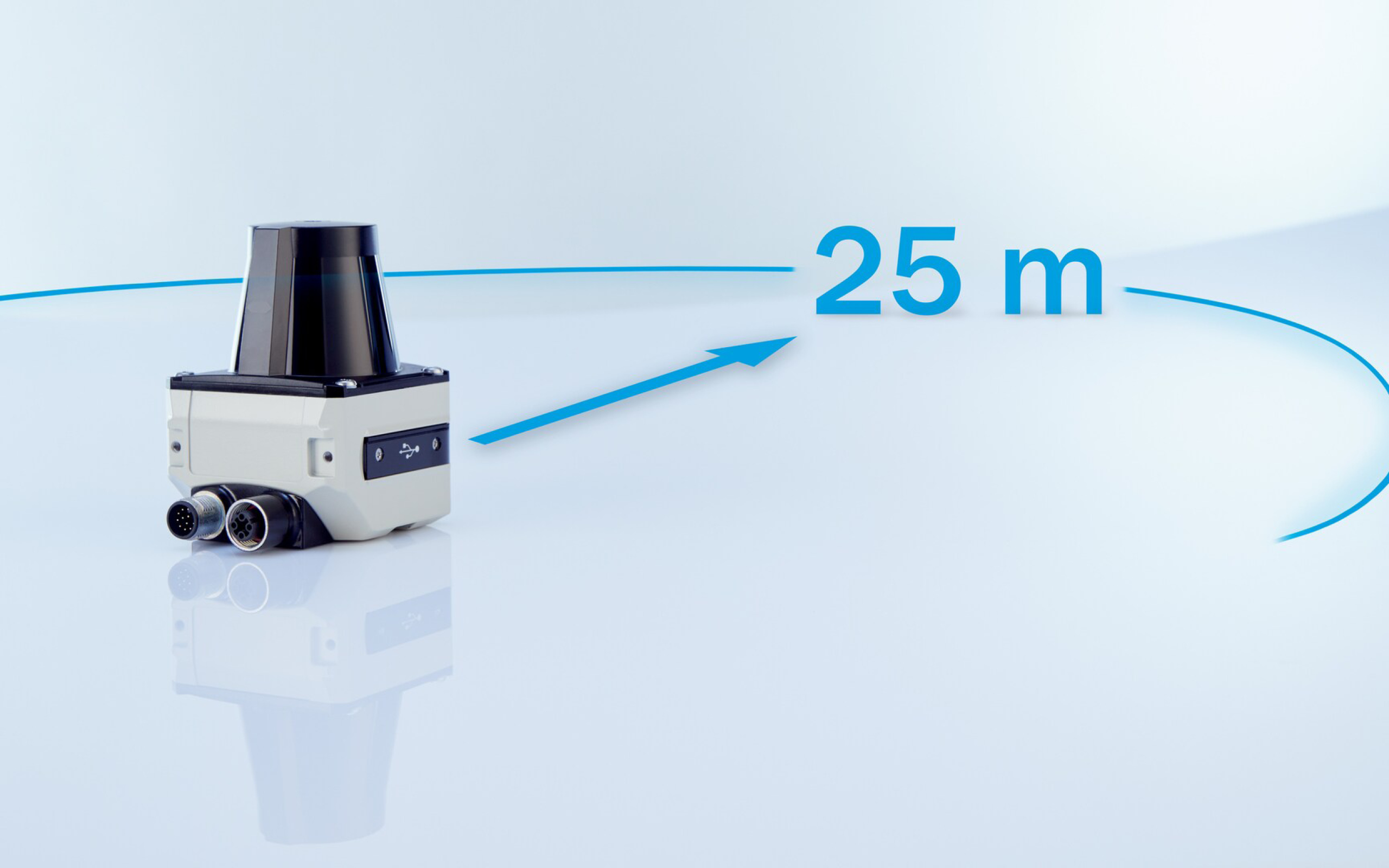

- Wide sensing range up to max. 25 m.
- Industry standard design and M12 male connector.
Applications
- Reliable object measurement and detection independent of surface and ambient light.
- Easy integration into compact automated guided vehicles (AGVs).
- Collision prevention.
- Object monitoring in the field of building automation.
| Manufacturer | SICK |
| Model Nº | TIM571 |
| Accuracy | +-20 mm |
| Interface | Ethernet |
| Ambient illuminance | 80.000 lux |
| Temperature | -25º to +50º |
| Voltage | 9 - 28 VDC |
| Resolution angle | 0,33º |
| Range | 270º |
| Enclosure class | IP67 |
| Environment | Indoors/Outdoors |

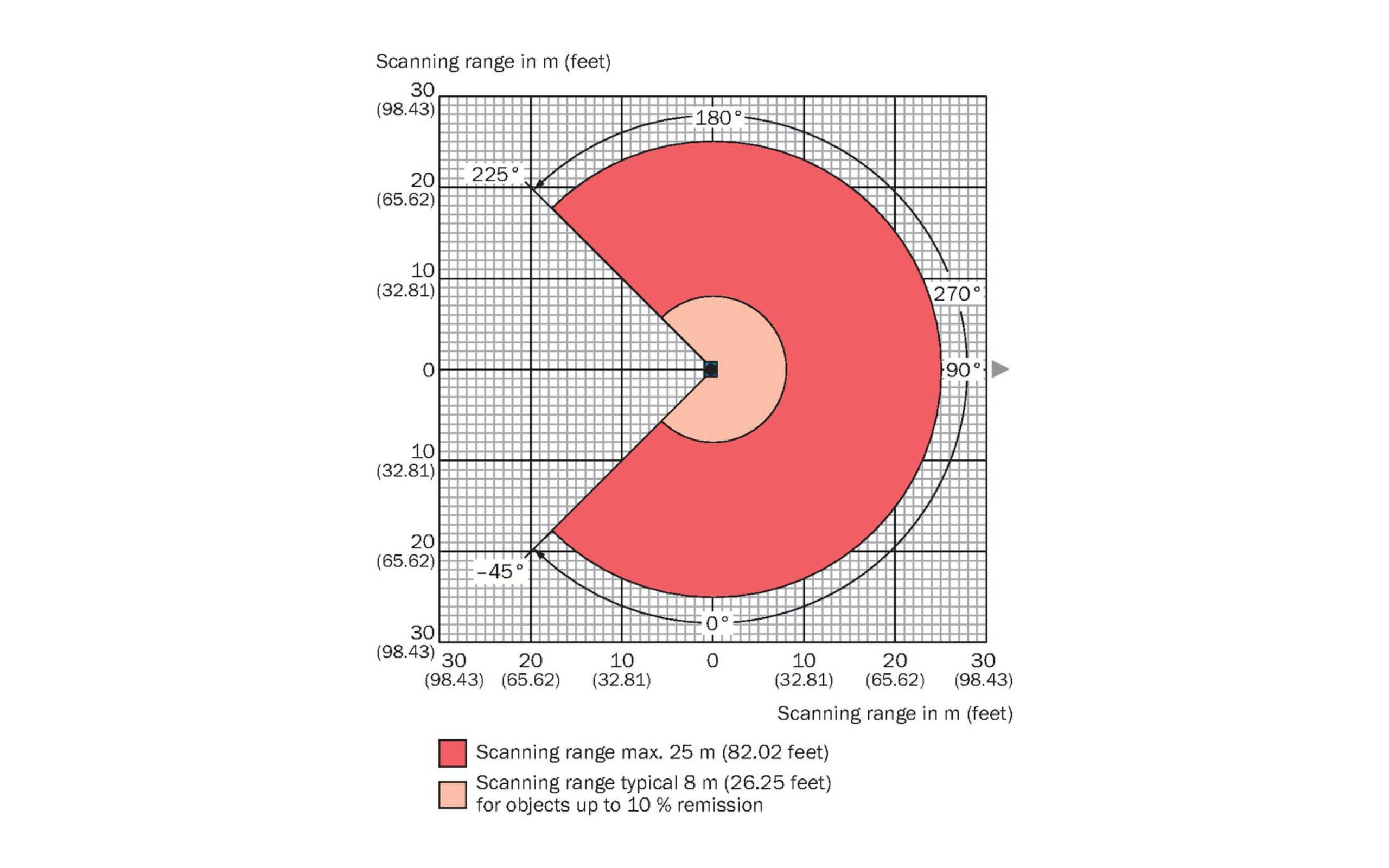

| Distance | 0,05 - 25 m |
| Scan frecuency | 15 Hz |
Official ros-package:
- http://wiki.ros.org/sick_tim
- Sources: https://github.com/uos/sick_tim
- Supported versions: Groovy, Hydro, Indigo, Jade, Kinetic and Melodic
