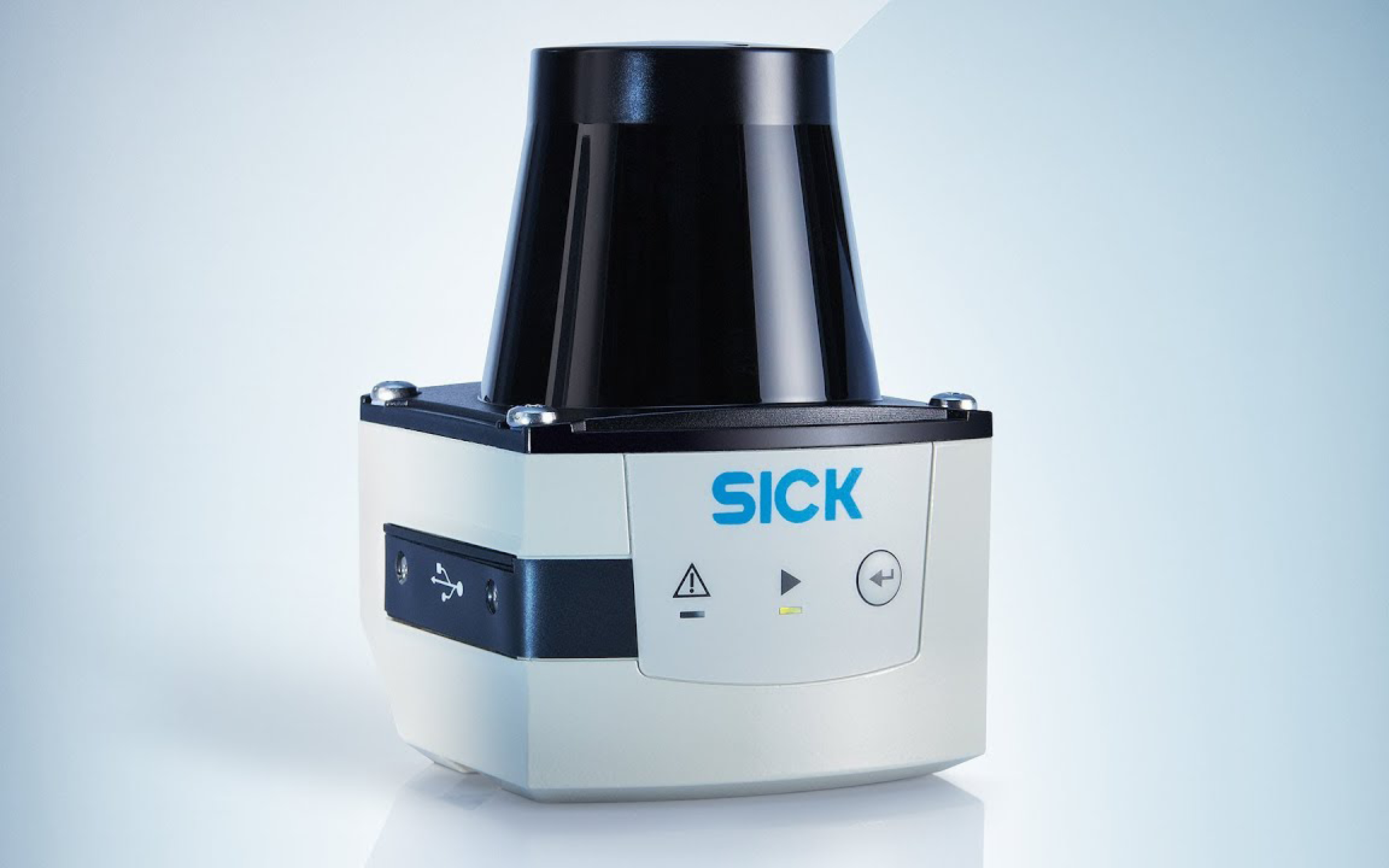

TIM561
Manufacturer: SICK
2D LiDAR sensor.
Estimated delivery time: 2 weeks.
1.850,00 €
Available on backorder
Available on backorder
The TIM561 from SICK is a high-performance LIDAR sensor designed for precise solutions in industrial and robotic applications. With a range of up to 60 metres and a scanning angle of 270°, it provides a high resolution and scanning frequency of up to 15 Hz.
Its robust and compact design makes it ideal for demanding environments, offering reliable performance even in harsh conditions.
It is also easy to integrate into stand-alone systems and mobile devices.
Main features
- Range up to 60 metres.
- 270° scan angle for wide coverage.
- 15 Hz scanning for high accuracy.
- Withstands extreme industrial conditions.
Applications
- Autonomous robot navigation.
- Control and safety in automated warehouses.
- Monitoring in industrial vehicles.
| Manufacturer | SICK |
| Model Nº | TIM561 |
| Accuracy | +-20 mm |
| Interface | Ethernet |
| Ambient illuminance | 80.000 lux |
| Temperature | -10ºC to +50ºC |
| Voltage | 9 - 28 VDC |
| Resolution angle | 0,33º |
| Range | 270º |
| Enclosure class | IP67 |

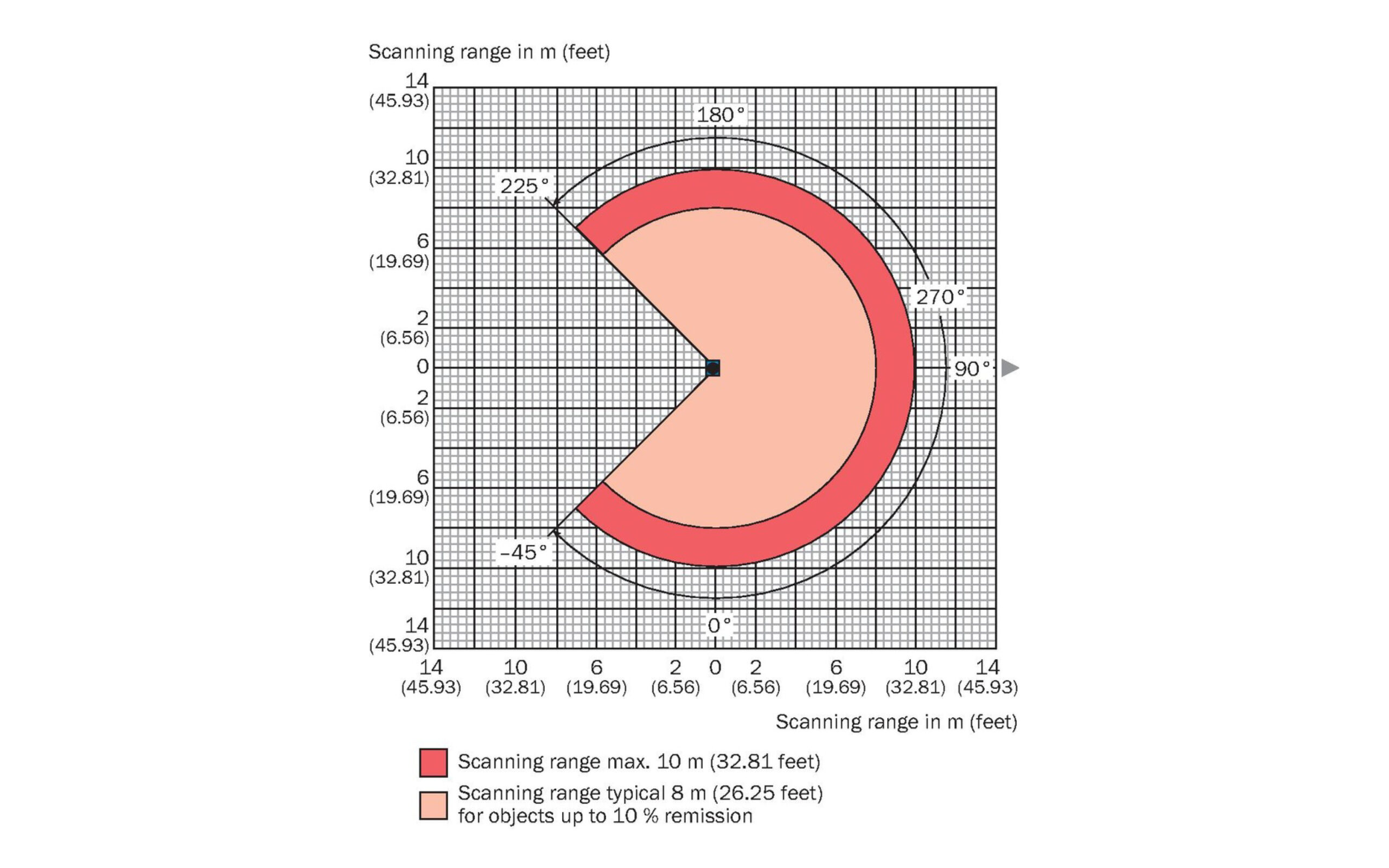

| Distance | 0,05 - 10 m |
| Environment | Indoors/Outdoors |
| Scan frecuency | 15 Hz |

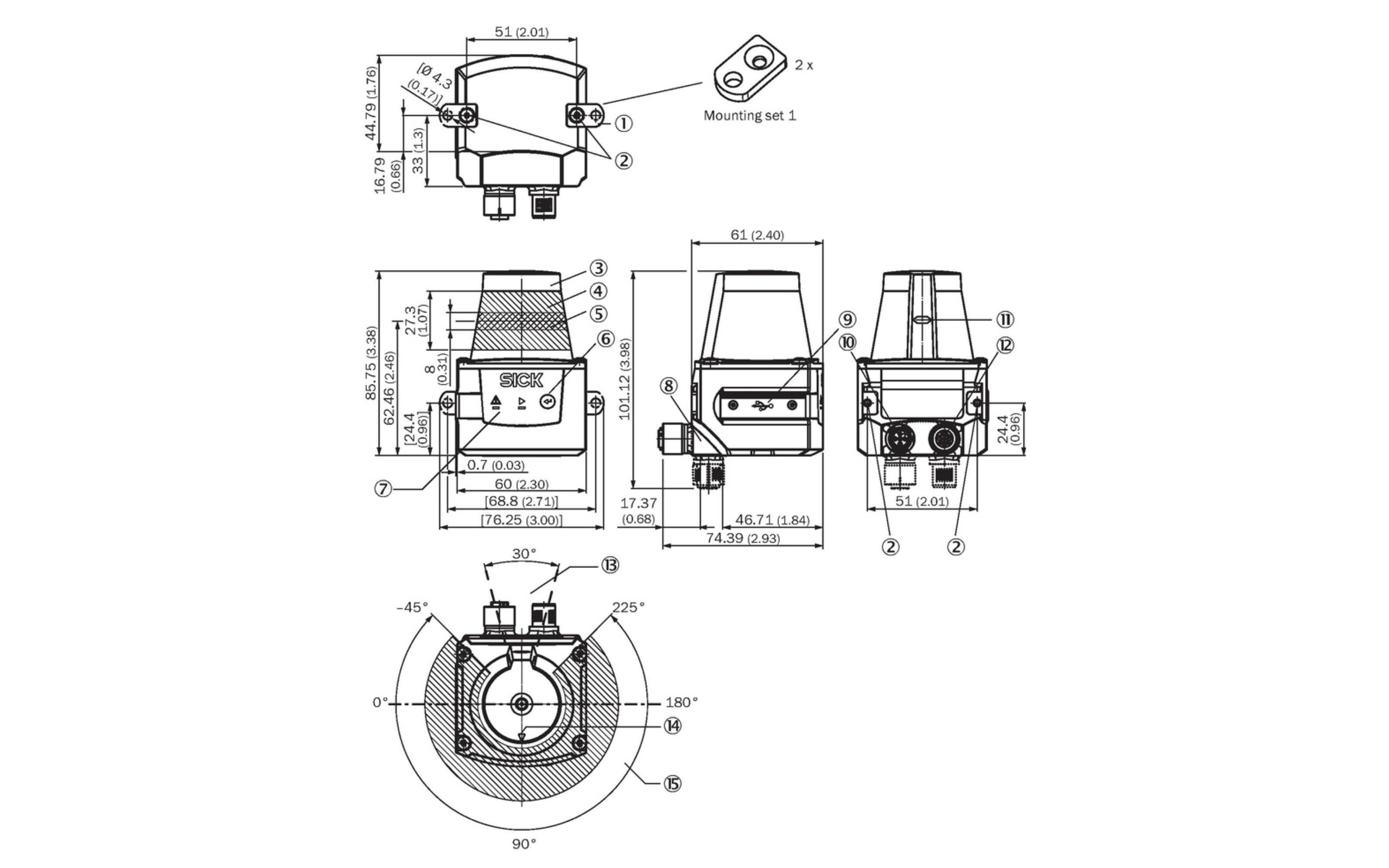

| Size | 60 x 60 x 86 mm |
Official ROS package:
- http://wiki.ros.org/sick_tim
- Sources: https://github.com/uos/sick_tim
- Supported versions: Groovy, Hydro, Indigo, Jade, Kinetic and Melodic
