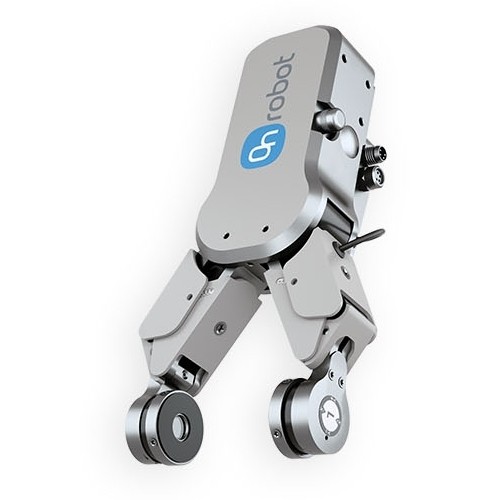

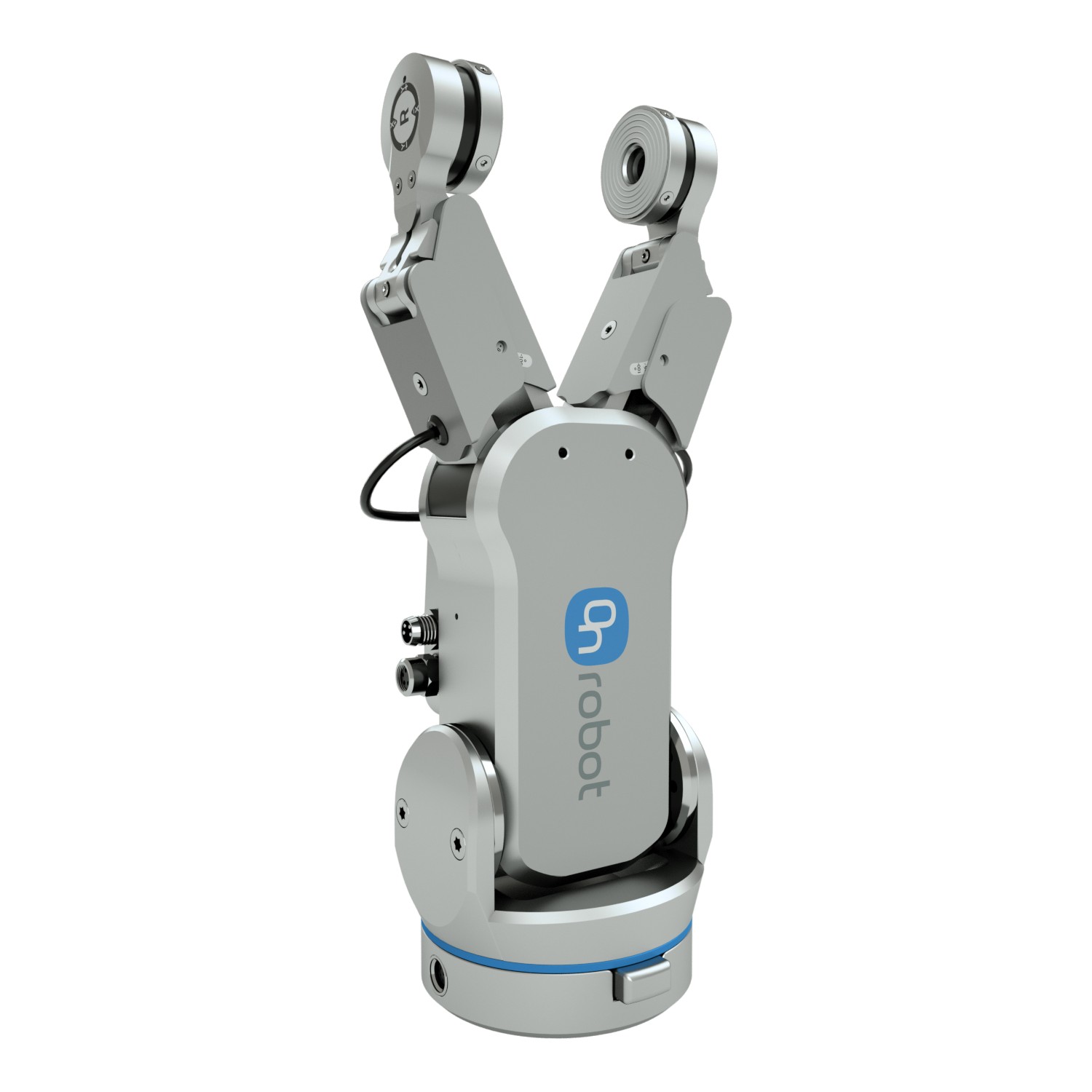

RG2 FT
Manufacturer: OnRobot
Robotic gripper.
Estimated delivery time: 1 week.
Recommended product for UR arms. For another arm model, please consult us.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily.
If this is not available, the components must be added: Quick Changer and Tool Flange for the correct operation of the gripper.
7.495,00 €

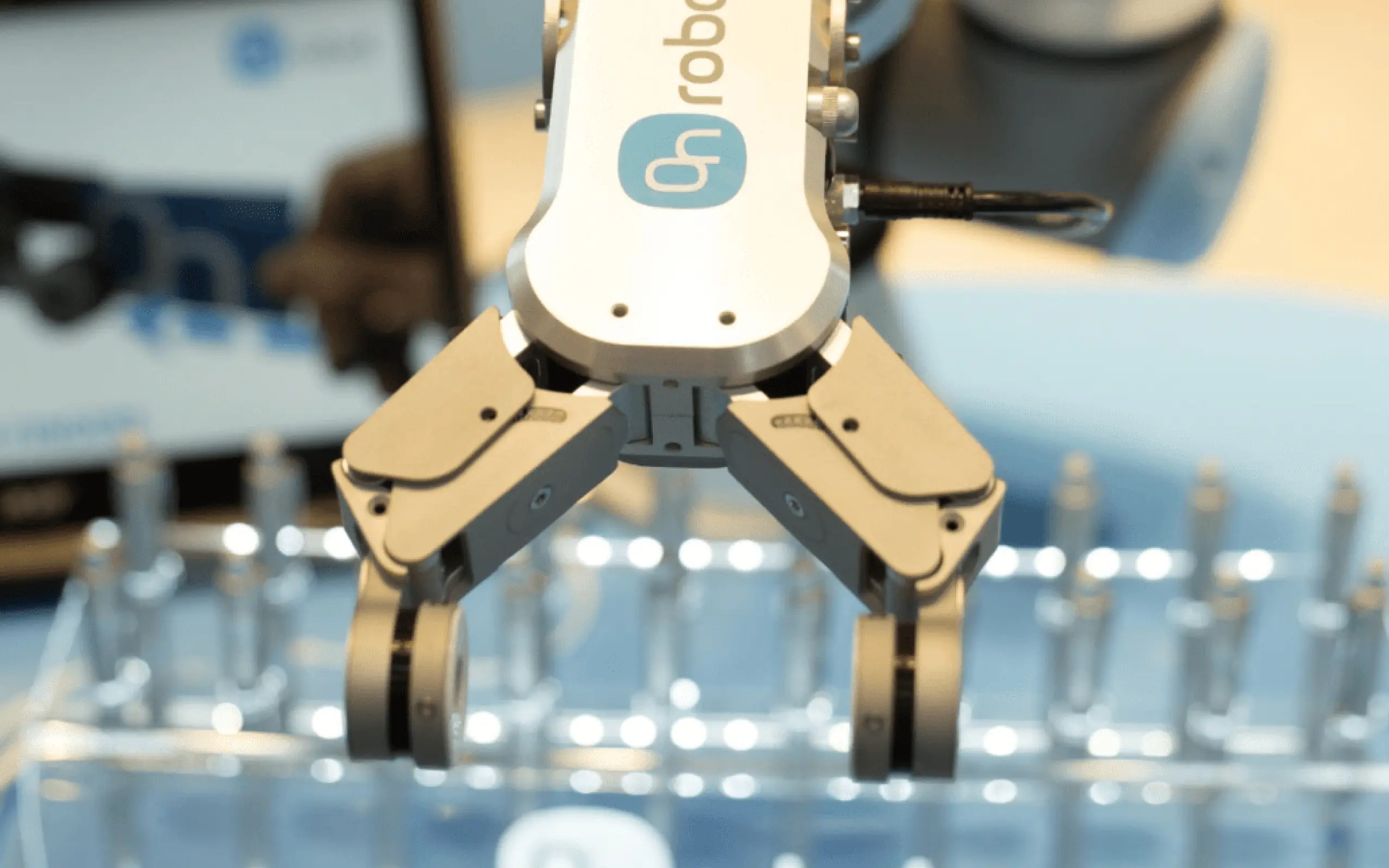

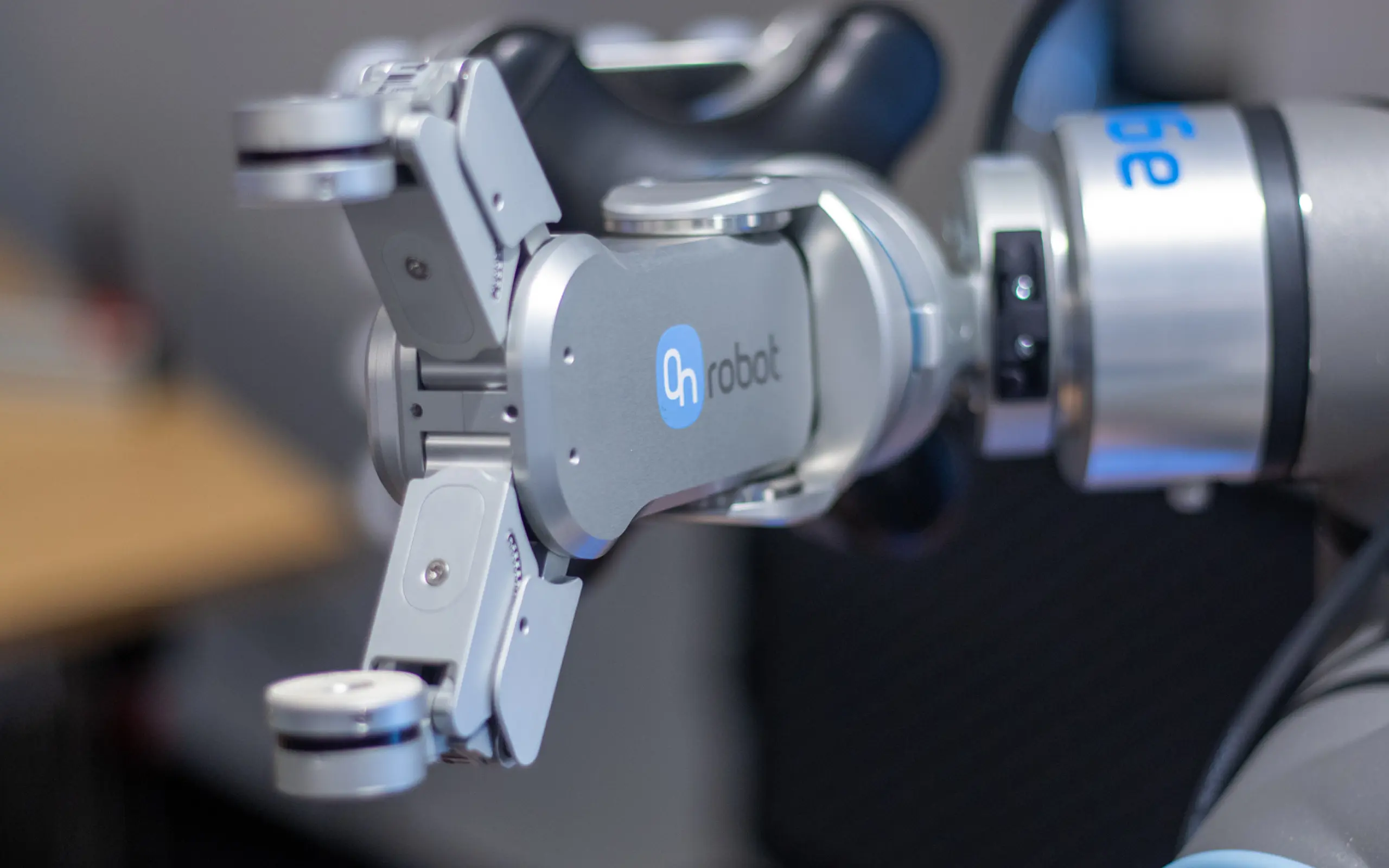

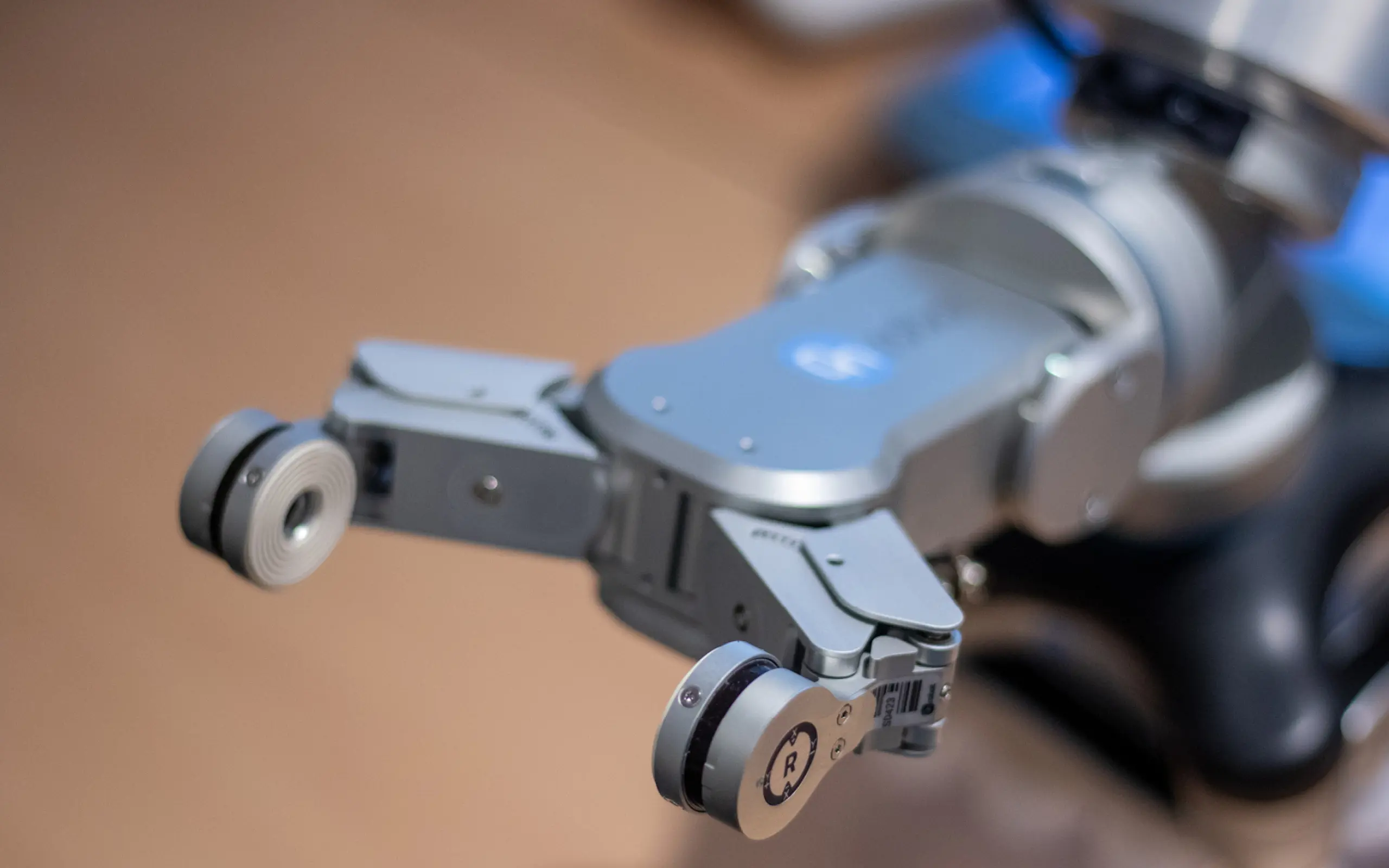

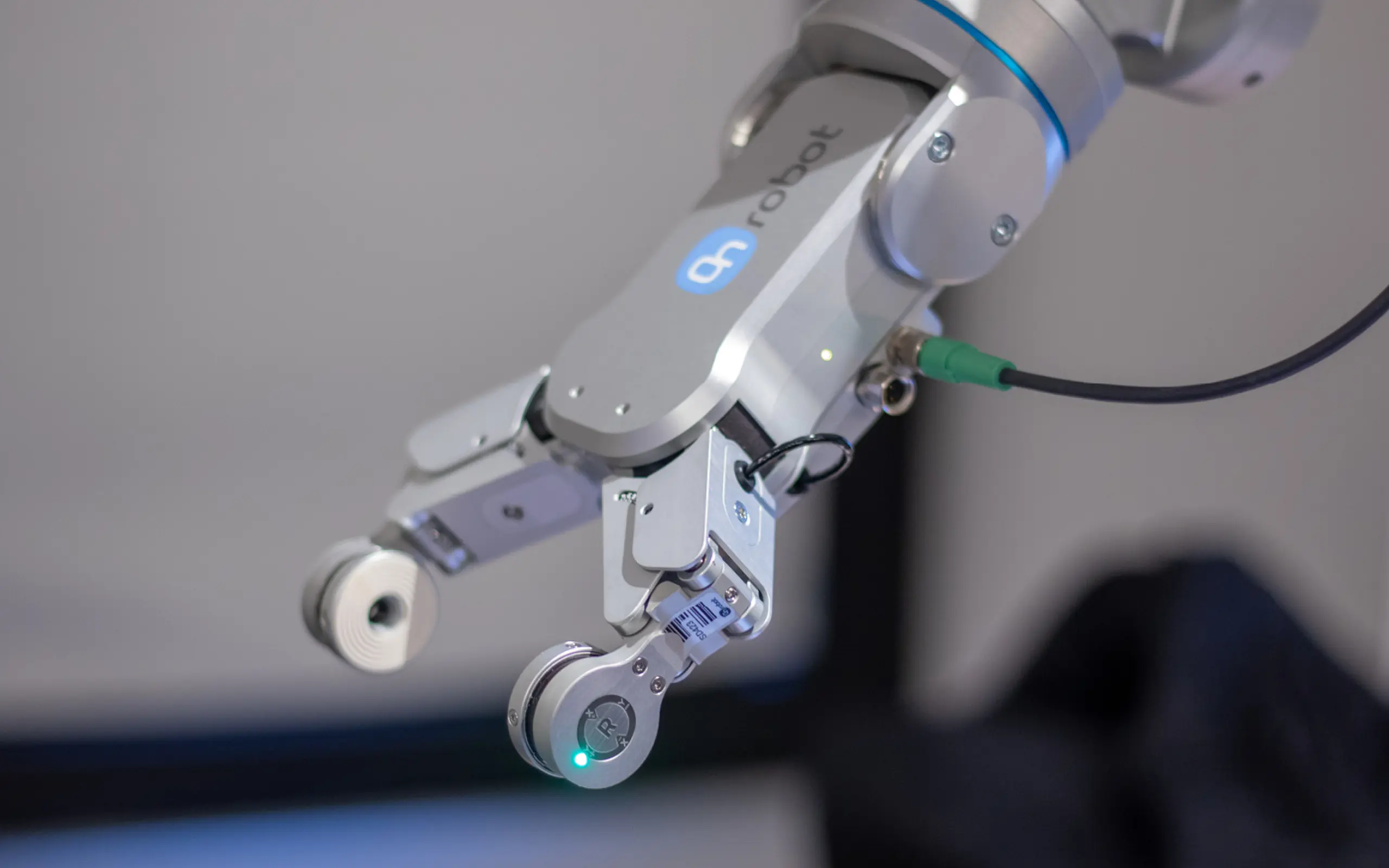

The RG2 FT is an enhanced version of OnRobot’s RG2 gripper, designed with more advanced sensing features for delicate part handling tasks.
The RG2 FT (Force/Torque) allows for greater sensitivity to grip force adjustment, making it ideal for tasks where more precise control is required such as handling fragile and lightweight products in industrial applications.
Thanks to this advanced sensor technology, during assembly the gripper allows the robot to sense whether the part has been assembled correctly.
Main features
-
- F/T sensor at the tips.
- High level of detection.
- Collaborative.
- Increased load capacity.
Applications
-
- Pick & Place.
- Component handling
- Assembly.
| Manufacturer | OnRobot |
| Model Nº | RG2-FT |
| Temperature | 5ºC - 50ºC |
| Weight | 0,77 kg |
| Current consumption | 6,5 W - 22 W |
| Full scale nonlinearity | 12 |
| Max. gripping force | 40 N |
| Max. stroke per jaw | 100 mm |
| Measuring area | 2 mm |
| Nominal Capacity (N.C.) | Fxy: 20 N / Fz: 40 N / Txy: 0,7 Nm / Tz: 0,5 Nm |
| Noise-free resolution (typical) | Fxy: 0,1 N / Fz: 0,4 N / Txy: 0,008 Nm / Tz: 0,005 Nm |
