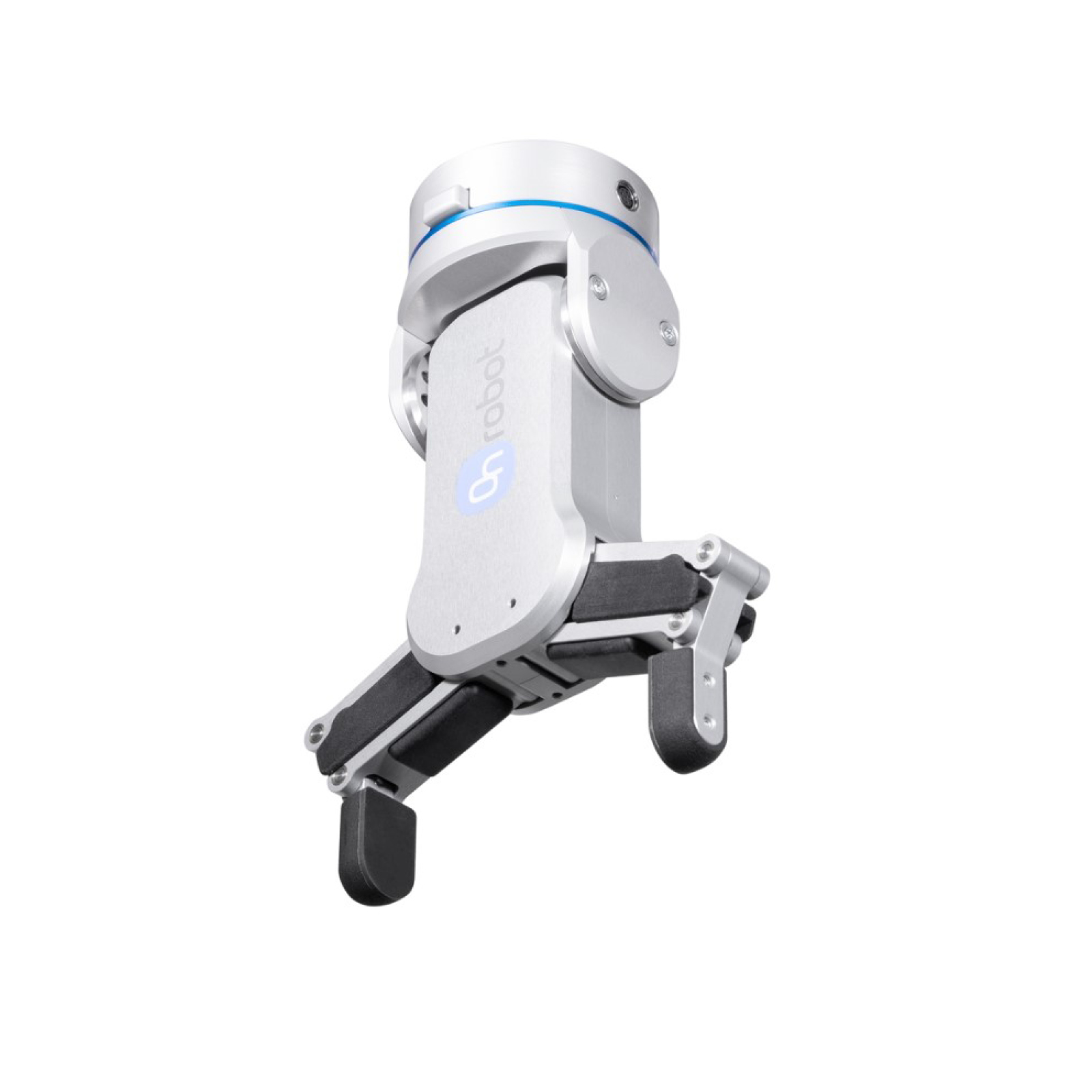

RG2

Manufacturer: OnRobot

Robotic gripper.

Estimated delivery time: 1 week.

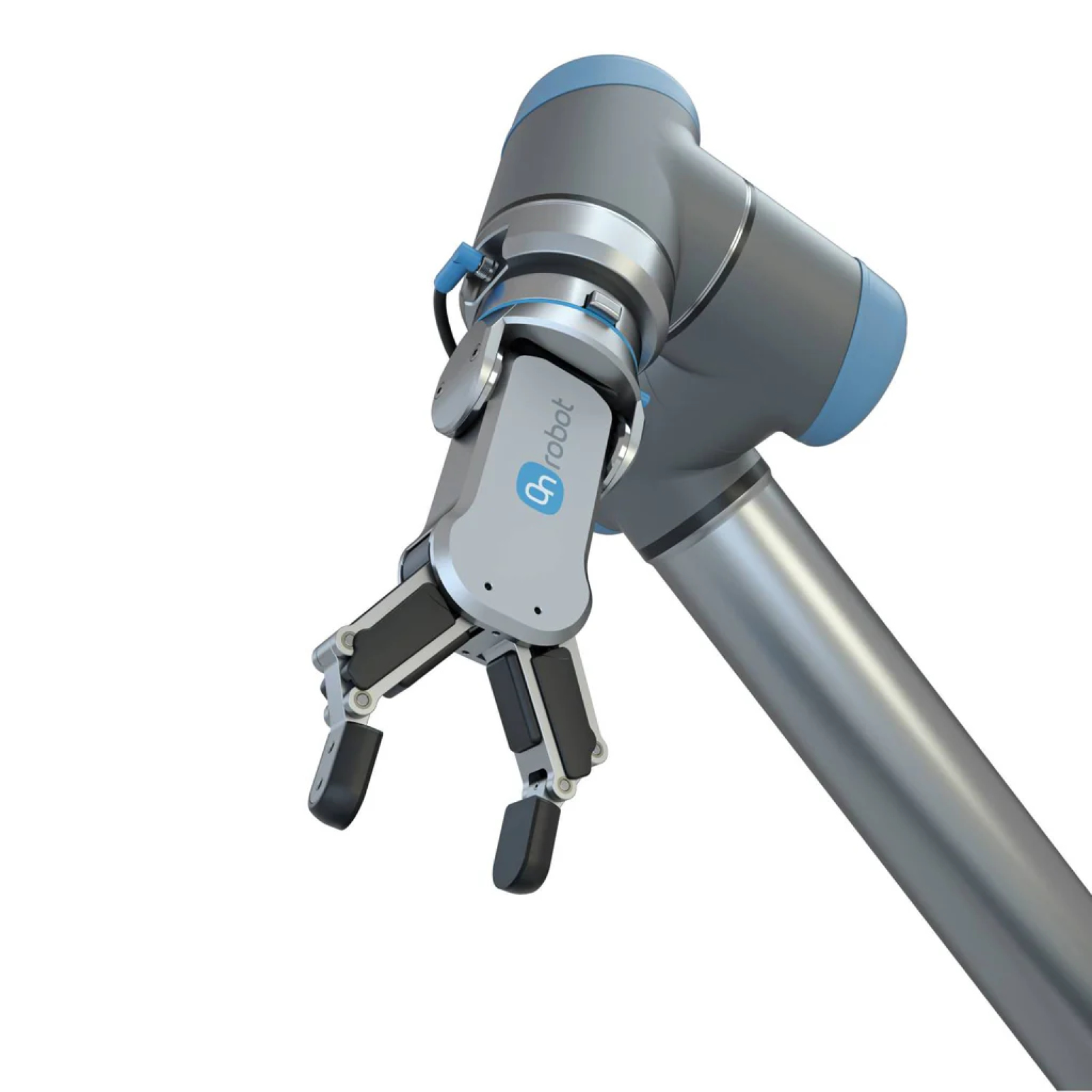

Recommended product for UR arms. For another arm model, please, consult us.

The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily.

If this is not available, the components must be added: Quick Changer and Tool Flange for the correct operation of the gripper.

3.595,00 €

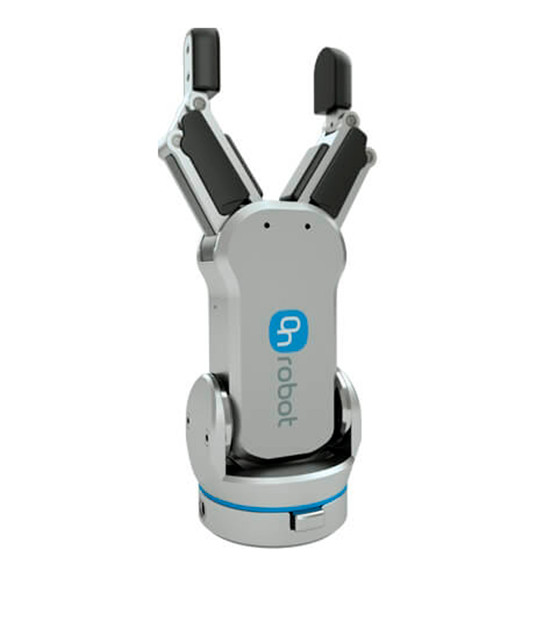

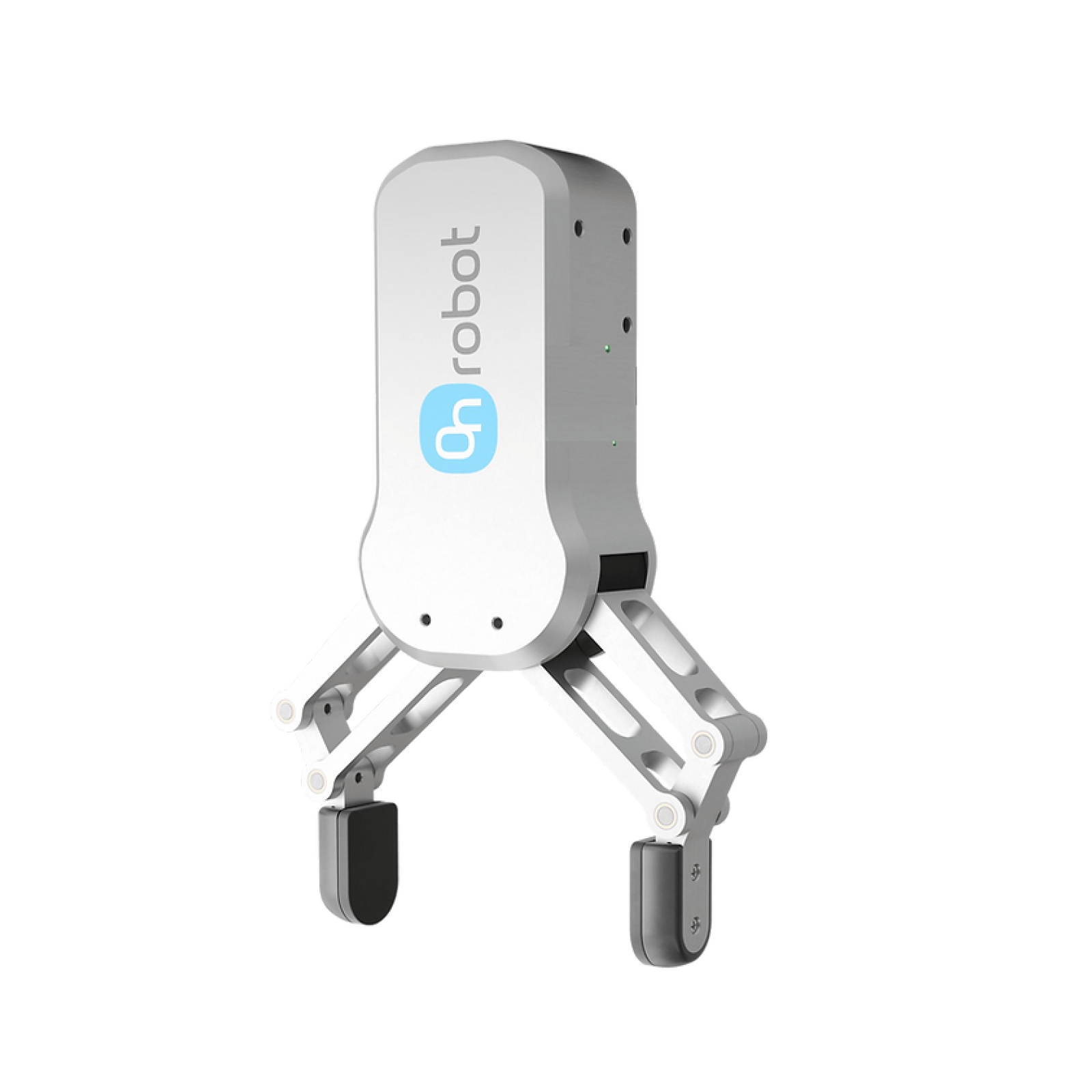

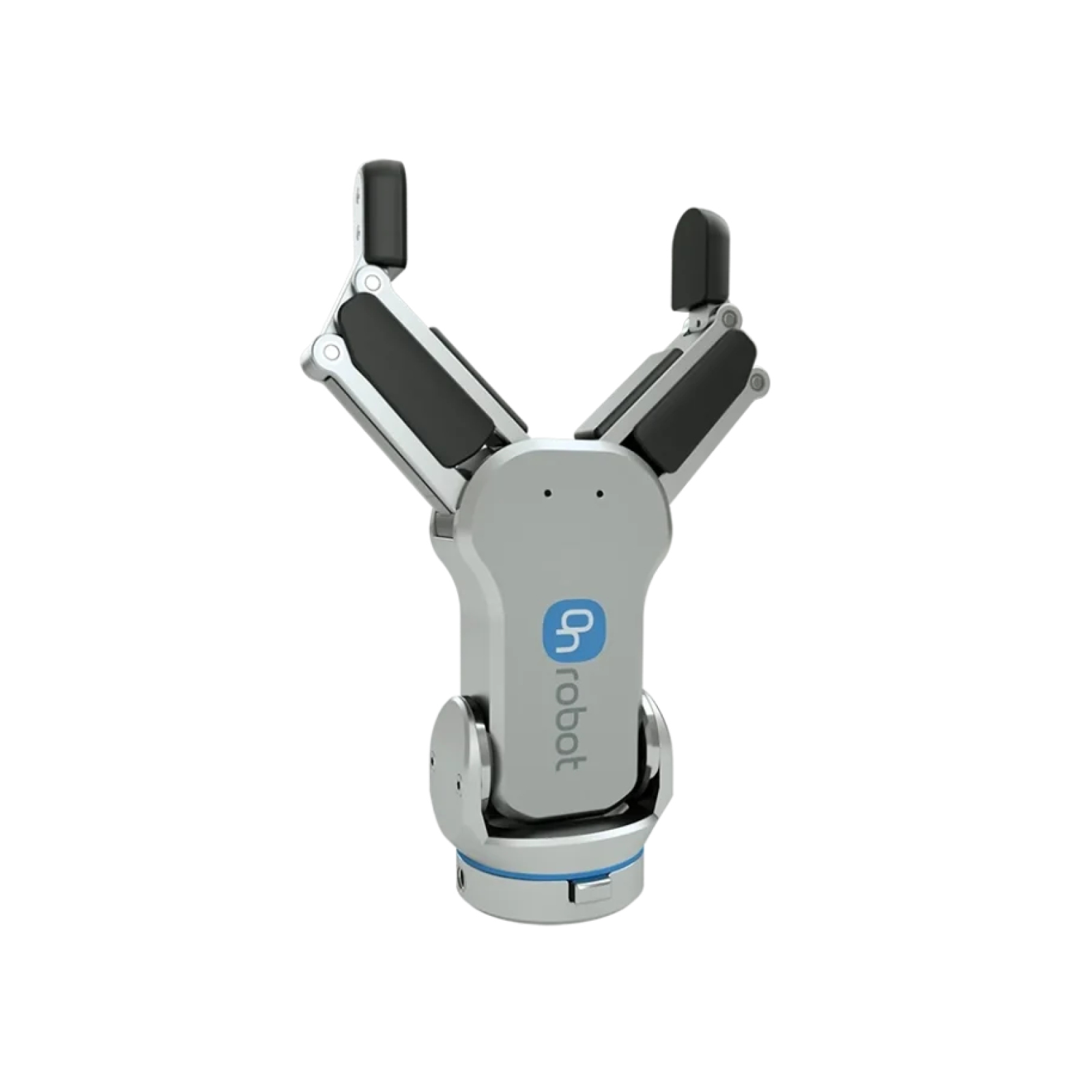

RG2 is a flexible, collaborative electric gripper with a payload capacity of 2 kg, useful for parts handling in industrial environments.

With a gripping force of up to 30 N and a stroke of 110 mm, RG2 automates assembly, sorting or packaging tasks.

This gripper offers precise control over gripping and releasing objects, making it an efficient solution for automation on production lines.

It is designed for integration with leading collaborative robot manufacturers through easy implementation.

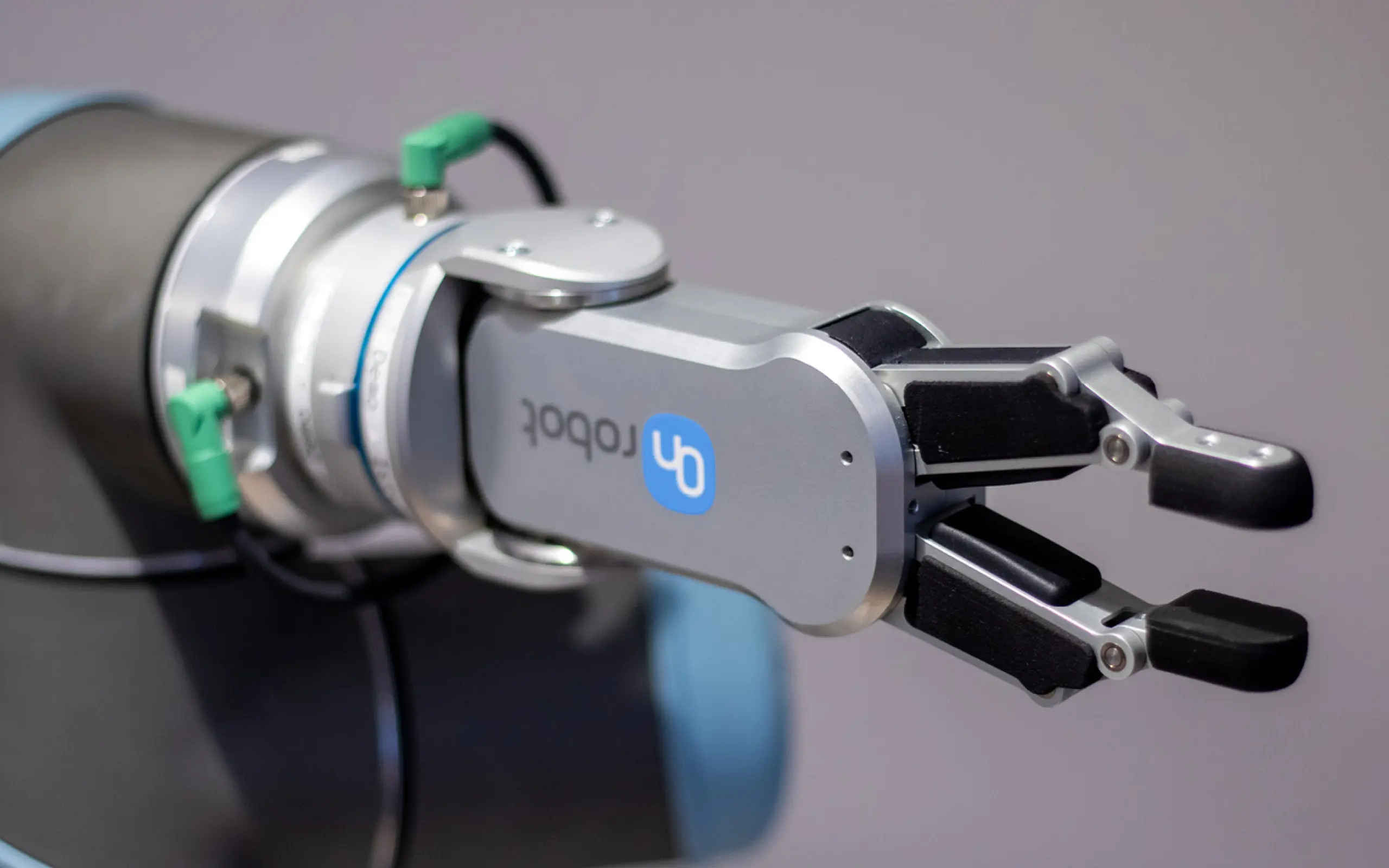

RC_OR_RG2-

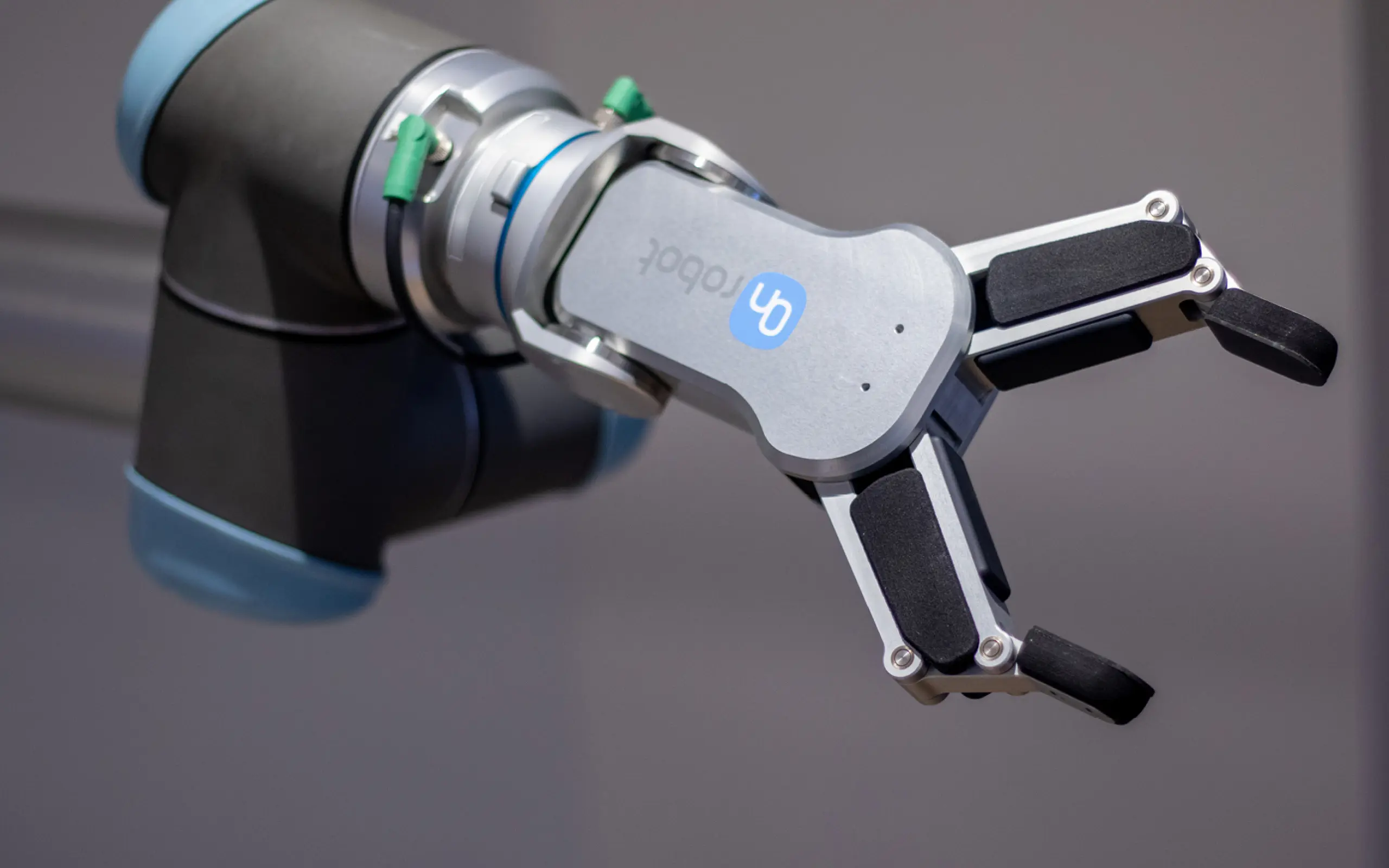

RC_OR_RG2-2

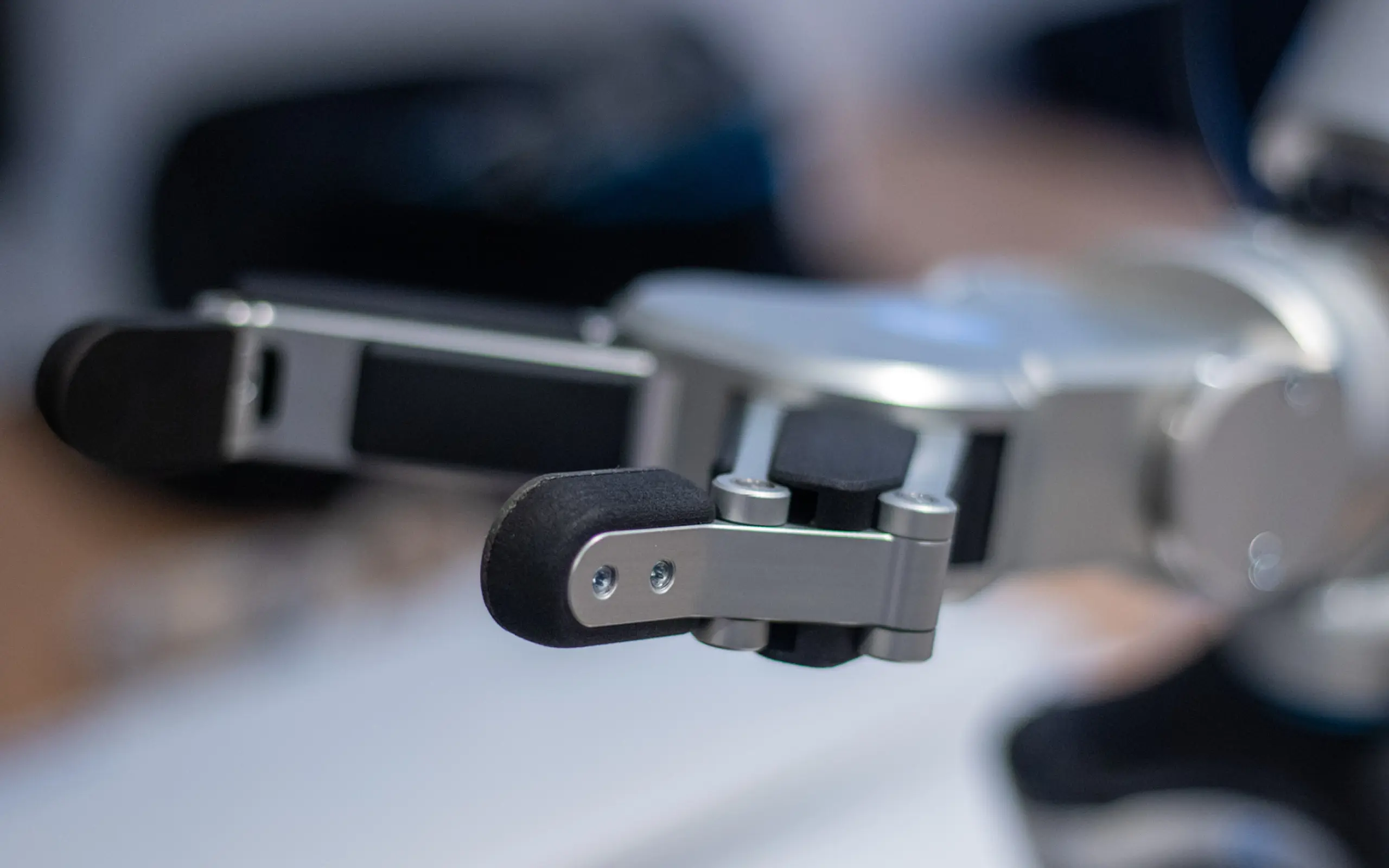

RC_OR_RG2-3

RC_OR_RG2-5

Main features

    • Collaborative and flexible.
    • Easy set-up.
    • Strong holding capacity.
    • Versatile for a wide range of applications.

Applications

    • Material handling.
    • Machinery maintenance.
    • Parts sorting.

ManufacturerOnRobot
Model NºRG2
Temperature5°C - 50°C
Gripper strength2 kg
Max. gripping force40 N
Max. stroke per jaw110 mm
Power supply24 V
Size213 x 149 x 36 mm
Weight0,78 kg
Enclosure classIP54
DATASHEET - ONROBOT RG2
