MG10

Manufacturer: OnRobot

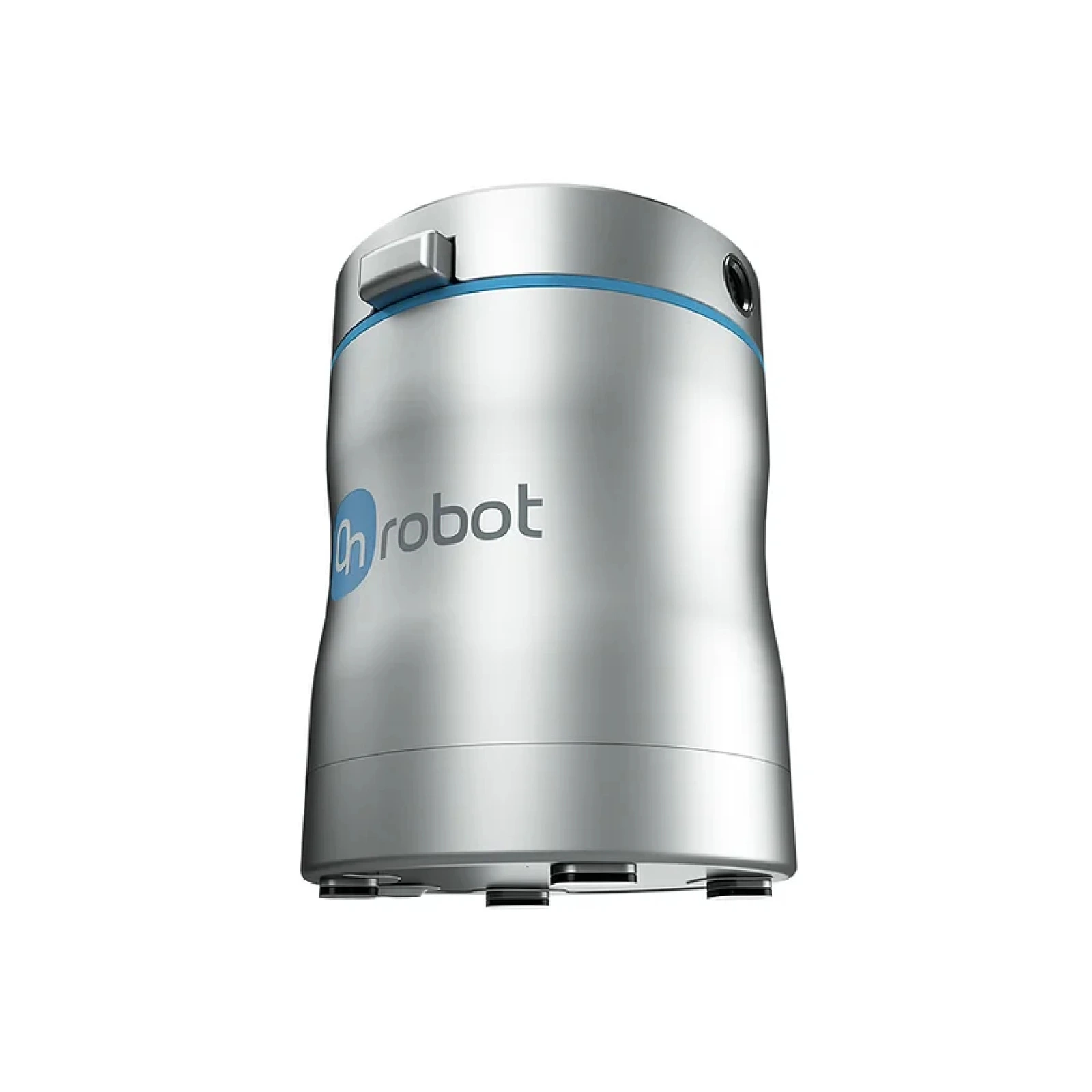

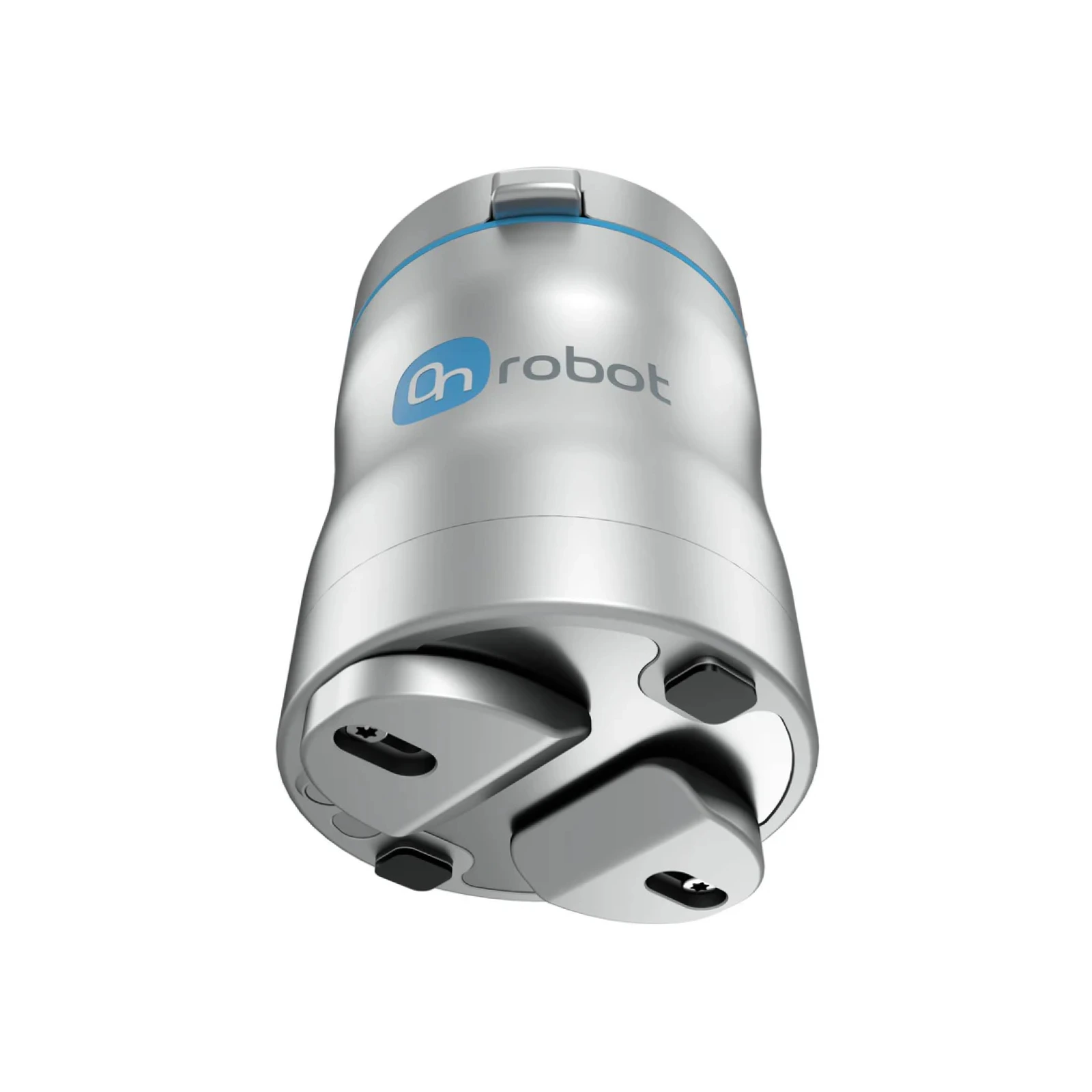

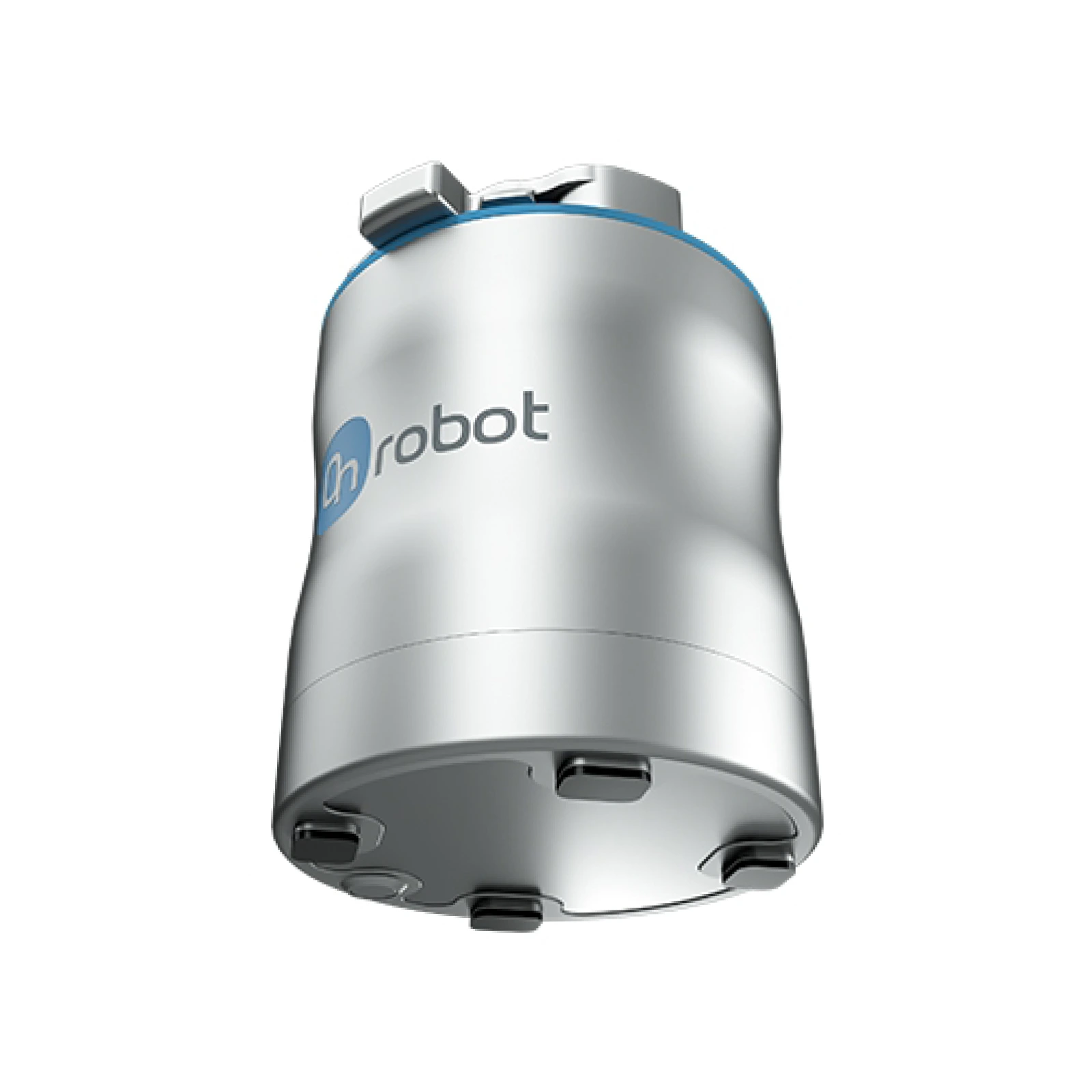

Magnetic gripper.

Estimated delivery time: 1 week.

Recommended product for UR arms. For another arm model, please, consult us.

The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily.
.

2.095,00 €

OnRobot’s MG10 gripper is a versatile, easy-to-use magnetic gripper for machine handling, assembly and maintenance applications in manufacturing, automotive and aerospace environments.

It is compatible with all major robot brands. The MG10 offers adjustable force sensing and gripper functions that provide users with a high level of control.

Like all of OnRobot’s other electric gripper family, the MG10 incorporates OnRobot’s Quick Changer and intuitive programming for quick and easy setup.

RC_OR_MG107

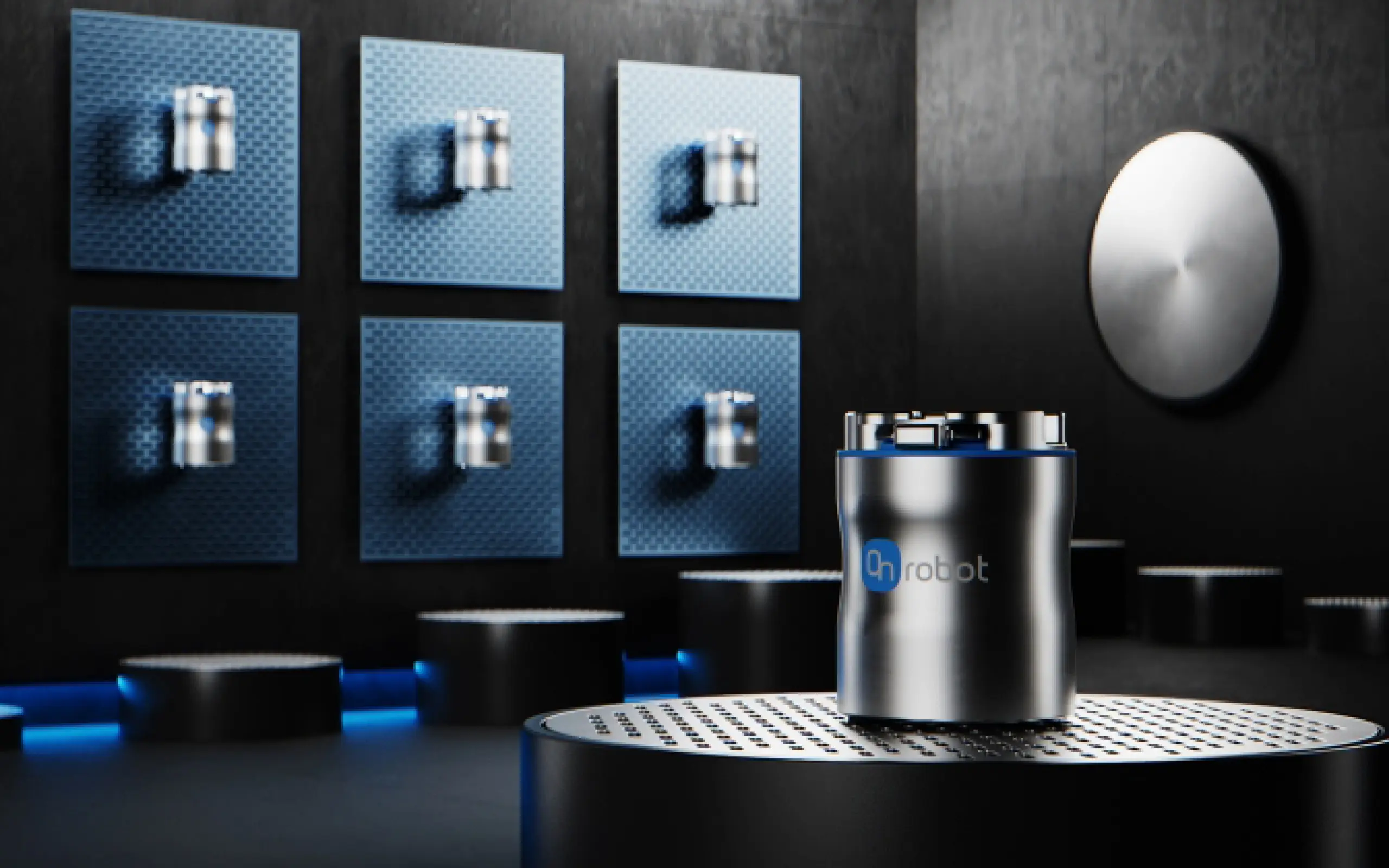

RC_OR_MG106

RC_OR_MG105

RC_OR_MG104

Main features

    • Reliave gripping with variable force
    • Safe and constant grip even after a powerloss
    • Built-in part detection
    • No compressed air required

Applications

    • Machinery maintenance.
    • Material handling
    • Assembly.

ManufacturerOnRobot
Model NºMG10
Size71 x 80.2 mm
Weight0,8 kg
Enclosure classIP67
Payload10 kg
Storage Temperature0 ºC - 55 °C
DATASHEET - ONROBOT MG10
