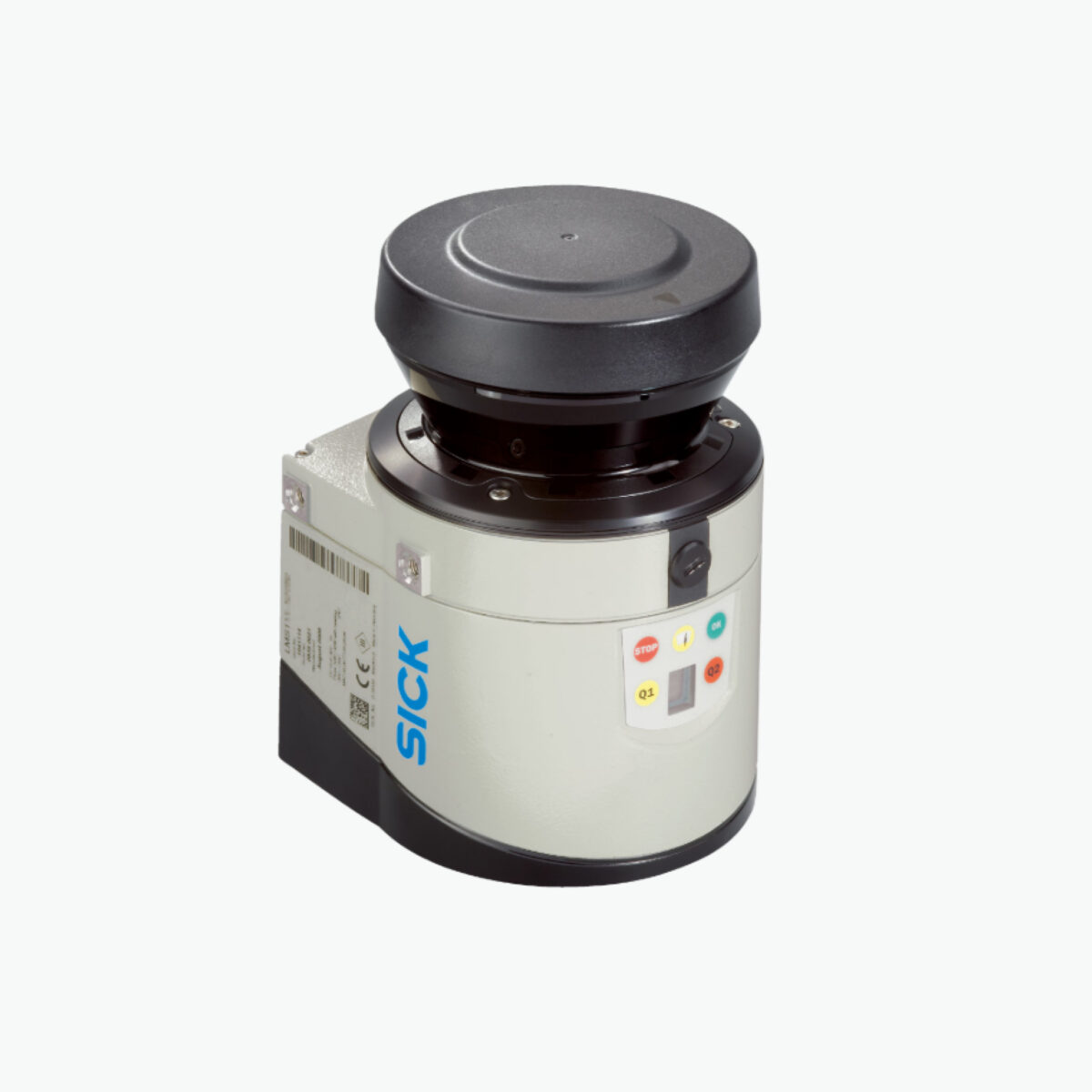

LMS151
Manufacturer: SICK
2D LiDAR sensor.
Estimated delivery time: 2 weeks.
7.000,00 €
SICK’s LMS151 LIDAR is a high-precision laser sensor designed for advanced industrial applications, with a range of up to 80 meters and a resolution of 0,25°. With a scanning speed of up to 40 Hz, it offers robust performance in complex and dynamic environments.
Its rugged design and ability to reliably detect objects make it an ideal choice for security and navigation applications.
Main features
- High precision.
- Outdoor environments.
- Resistant to harsh industrial conditions.
Applications
- Collision avoidance.
- Object measurement and detection.
- Guidance of persons.
- Security and navigation.
| Manufacturer | SICK |
| Model Nº | LMS151 |
| Accuracy | +- 30 mm |
| Interface | Ethernet, Serial, CAN-Bus |
| Temperature | -30°C to +50°C |

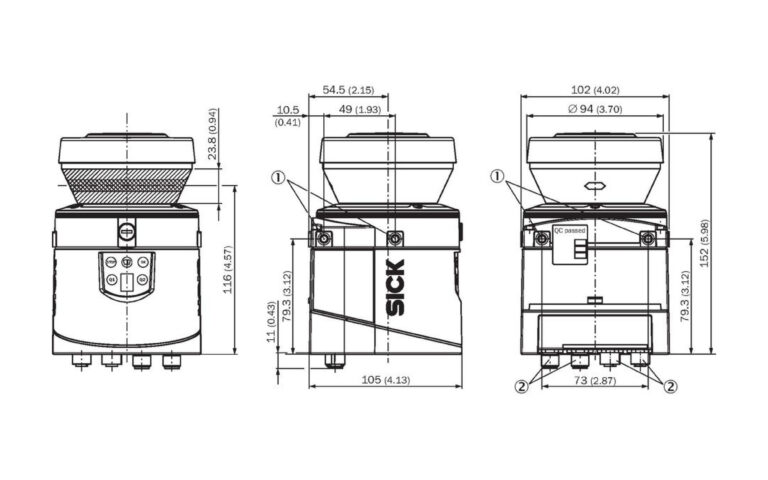

| Size | 105 x 102 x 162 mm |
| Weight | 1,1 Kg |
| Voltage | 10,8 - 30 VDC |
| Resolution angle | 0,25 / 0,5 |

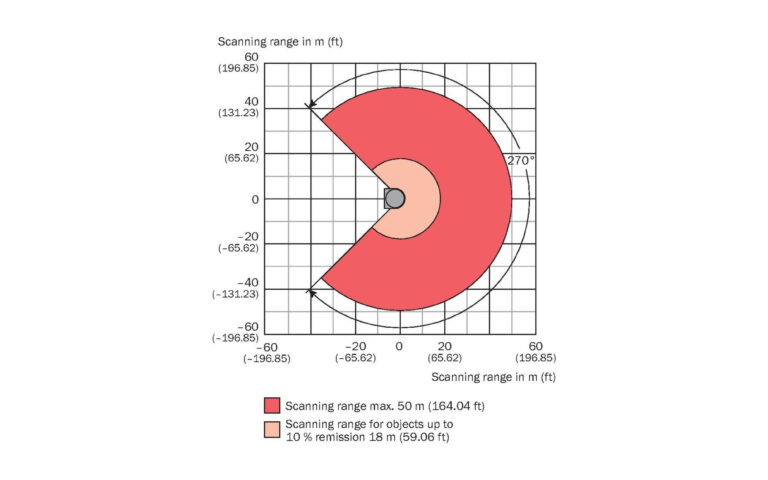

| Range | 0,5 - 50 m |
| Scan Angle | 270° |
| Enclosure class | IP67 |
| Scan frecuency | 25 Hz /50 Hz |
| Power Consumption | 10 W |
Official ROS package:
- http://wiki.ros.org/sick_tim
- Sources: https://github.com/uos/sick_tim
- Supported versions: Groovy, Hydro, Indigo, Jade, Kinetic
