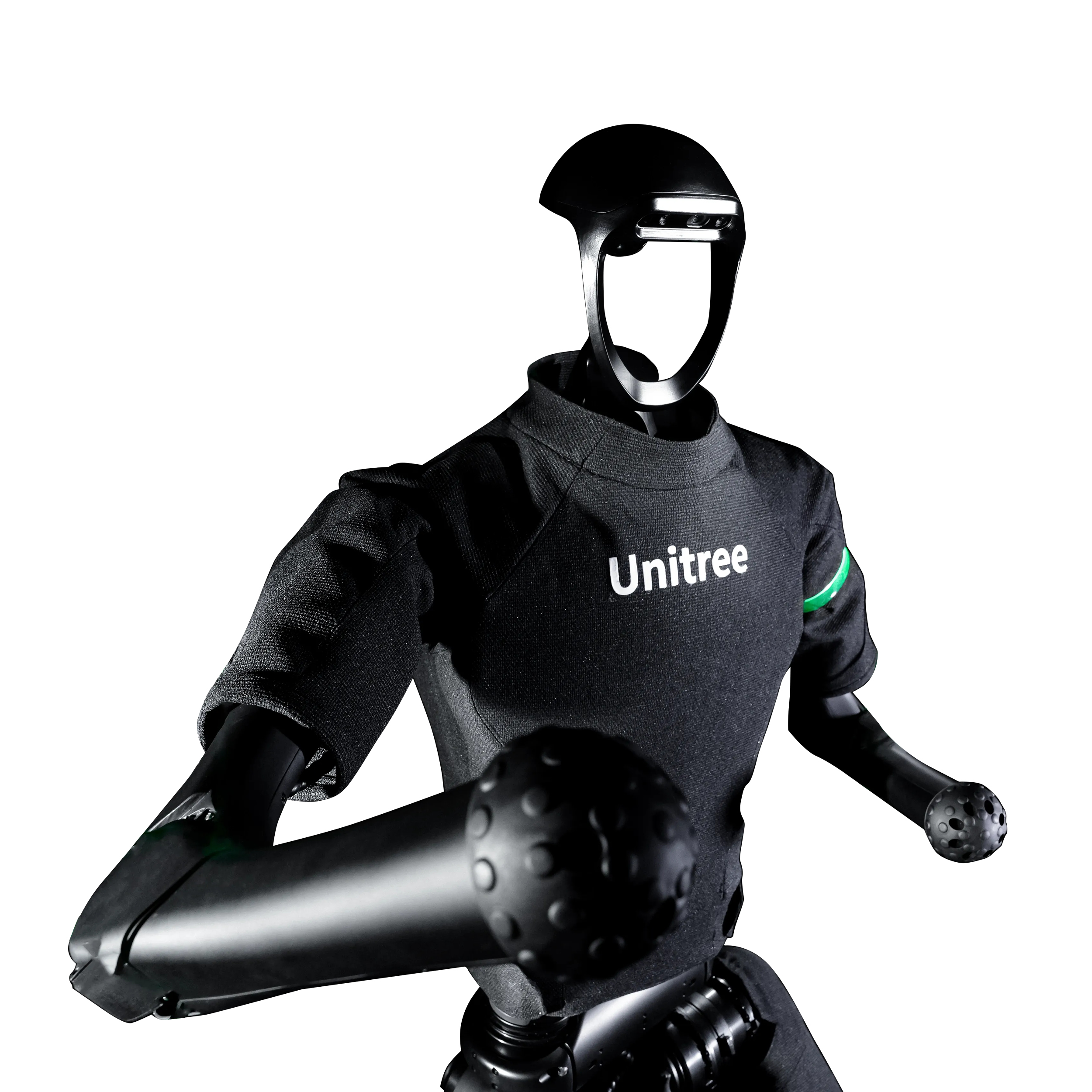

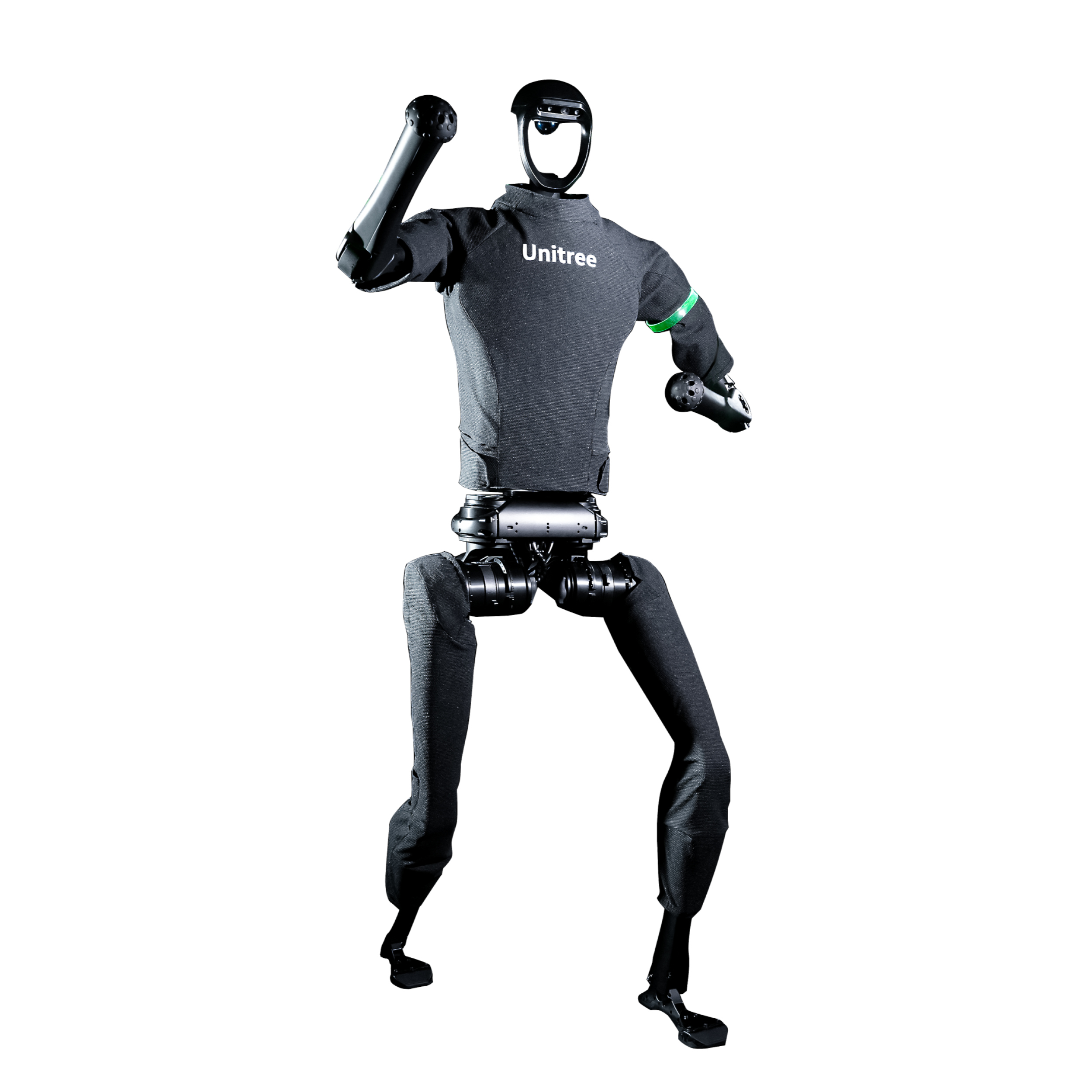

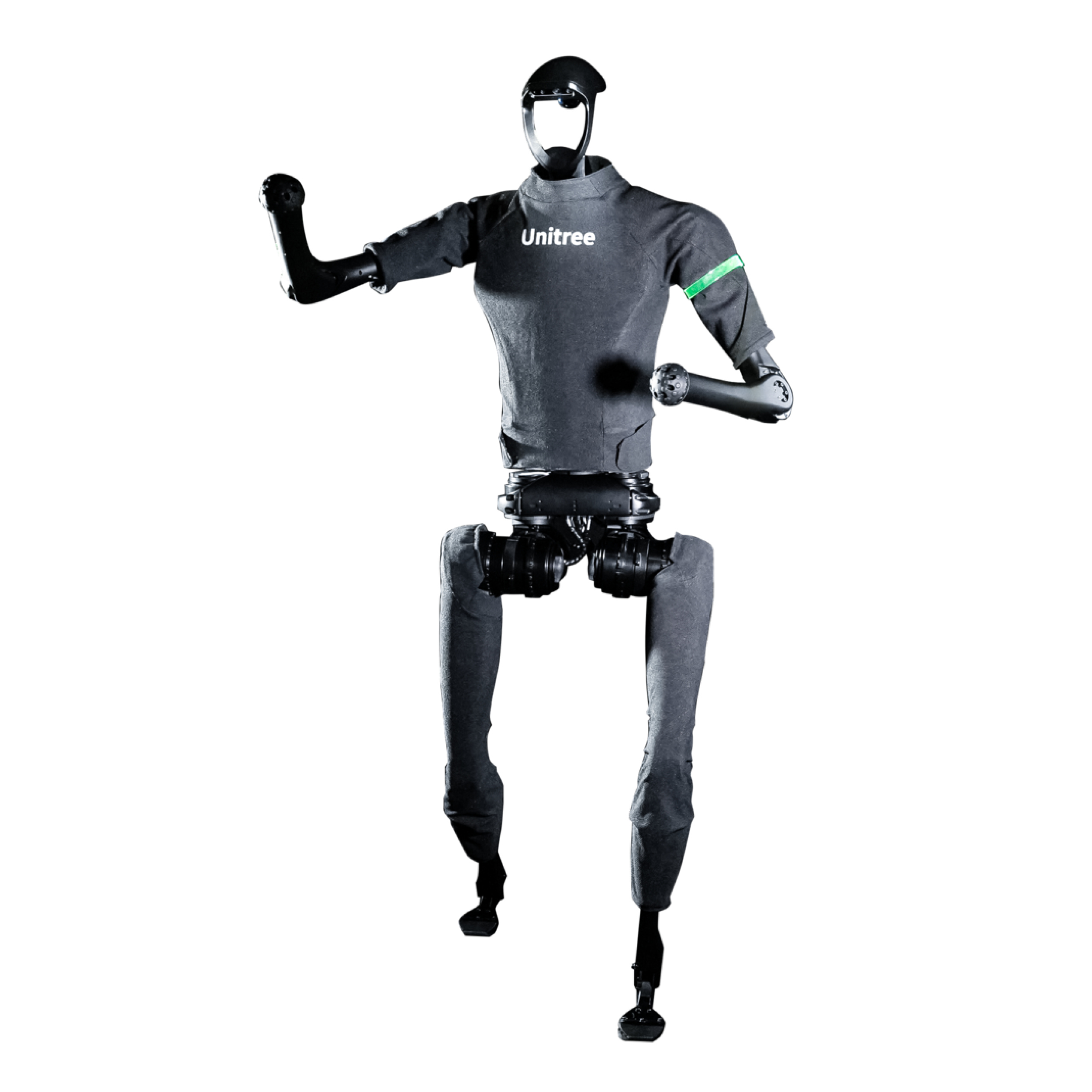

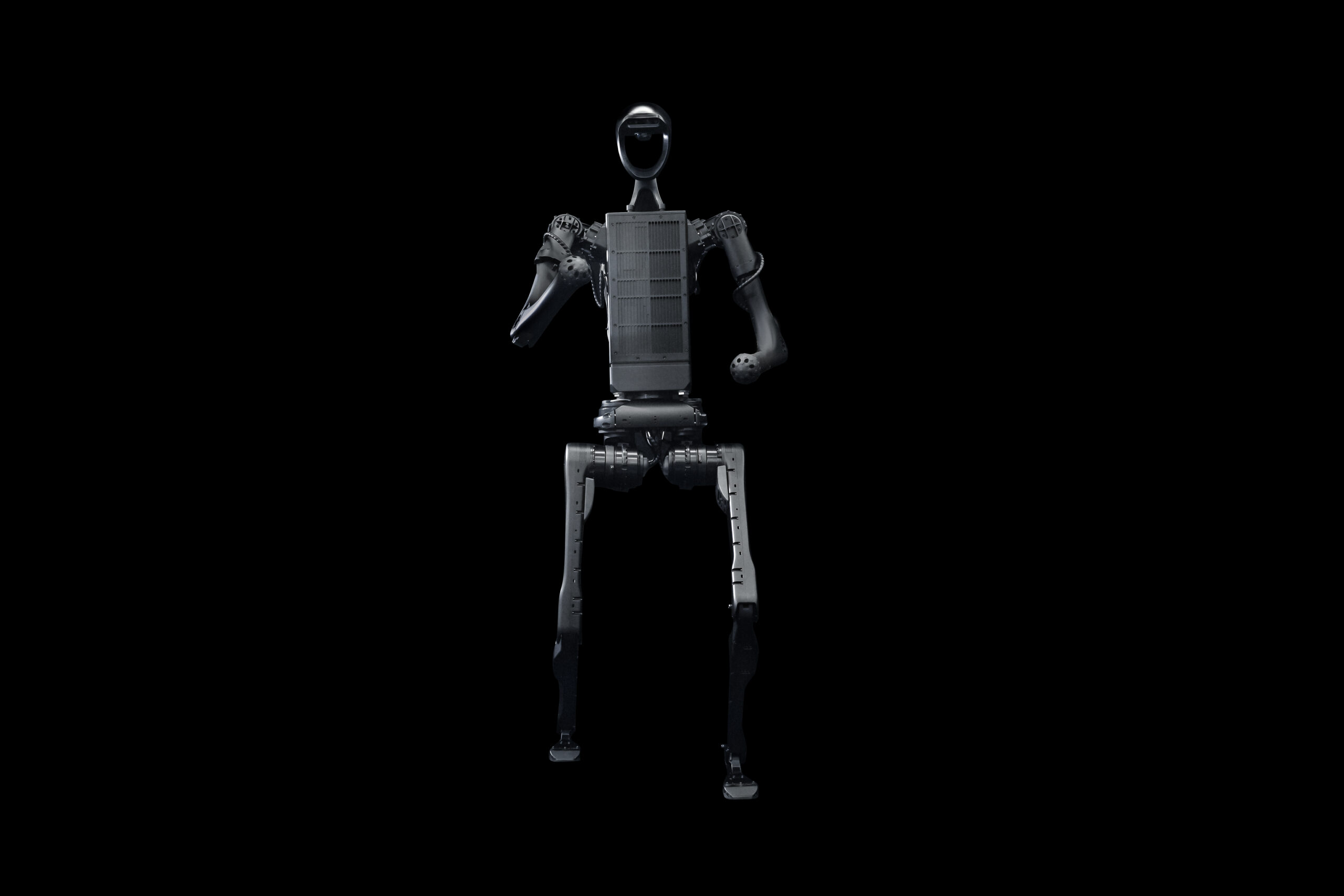

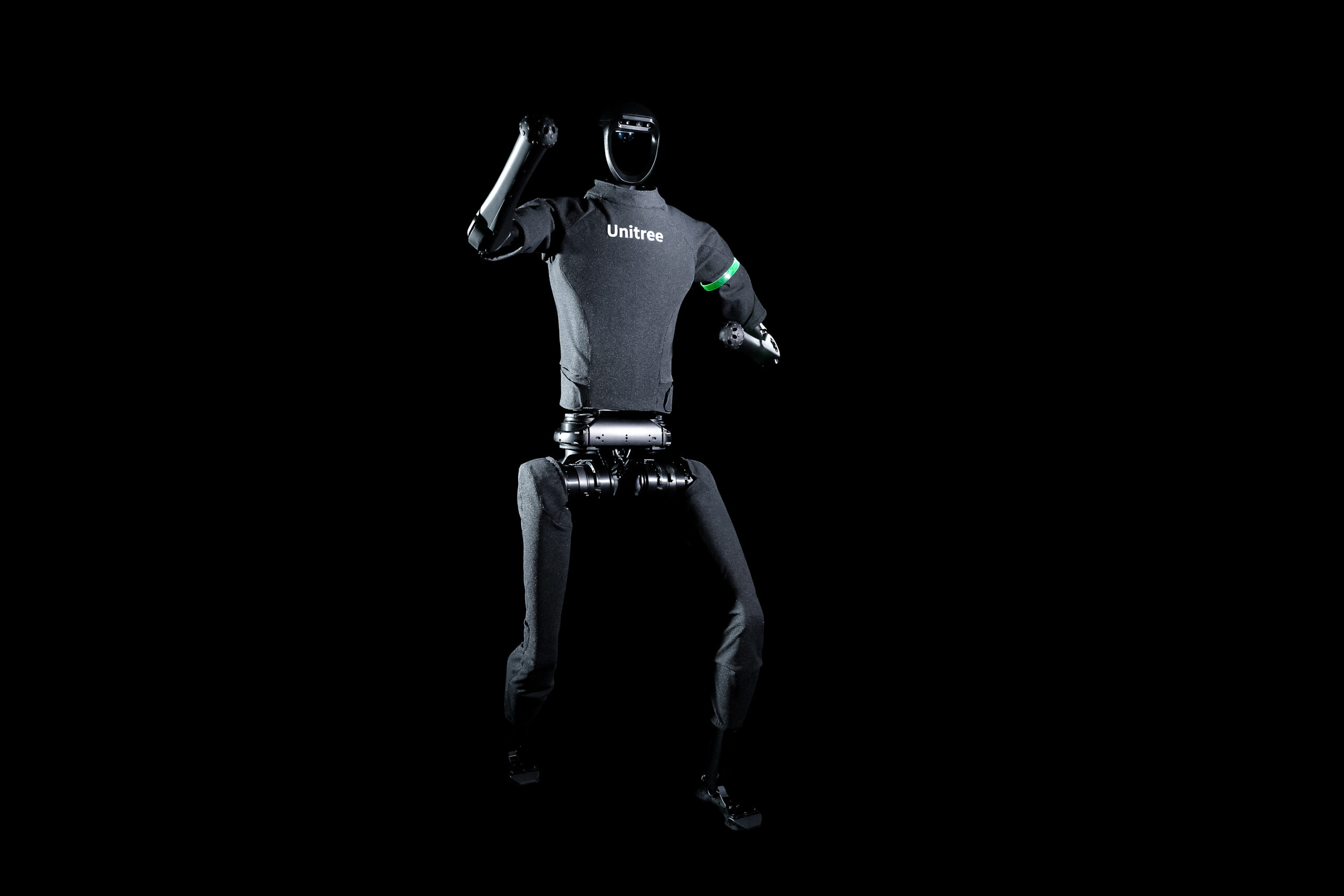

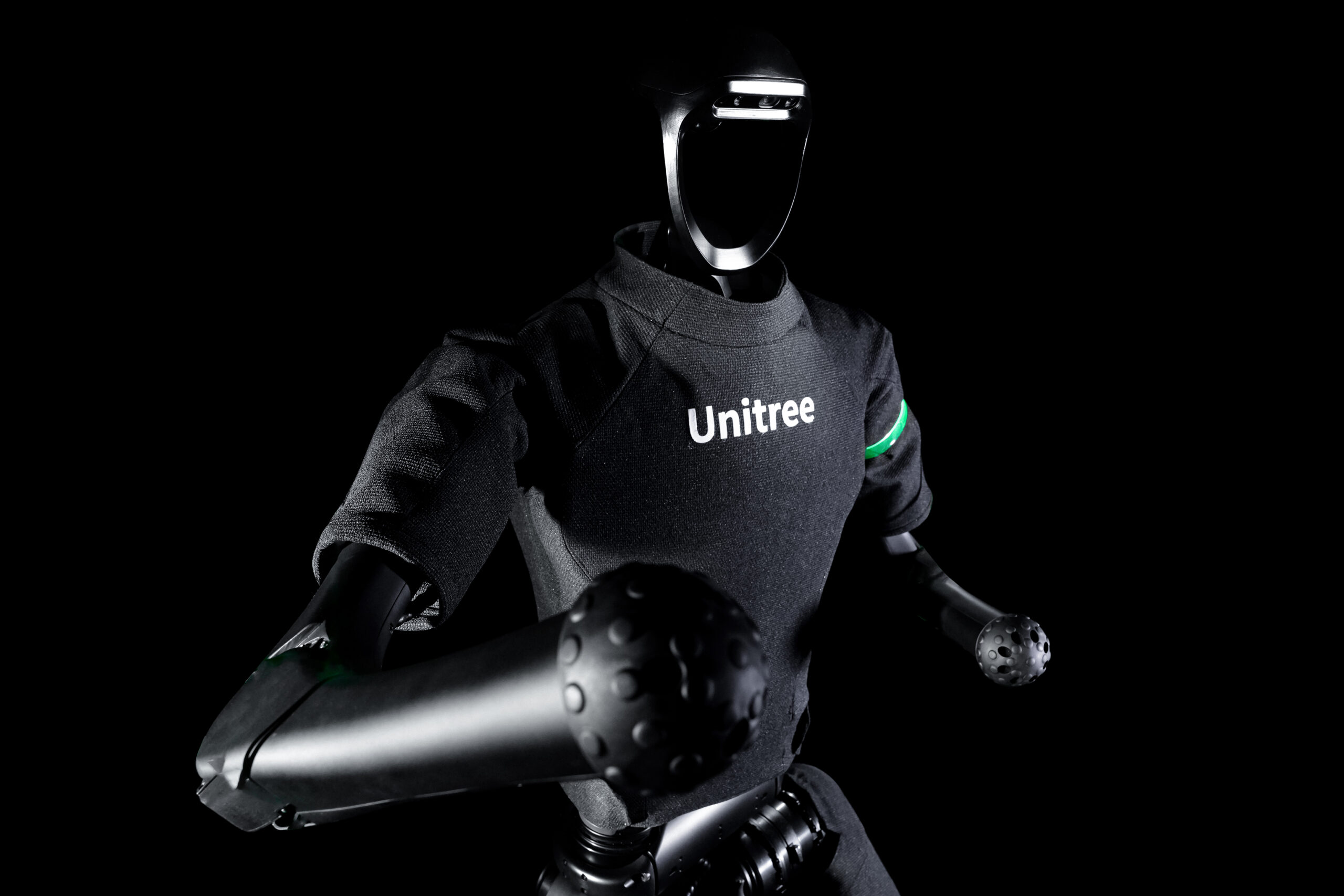

H1
Manufacturer: Unitree
Humanoid Robot.
Estimated delivery time: 8-10 weeks.
H1 has a robust, stable and highly flexible design. Its high movement capability allows H1 to adapt to different environments and complex terrain.

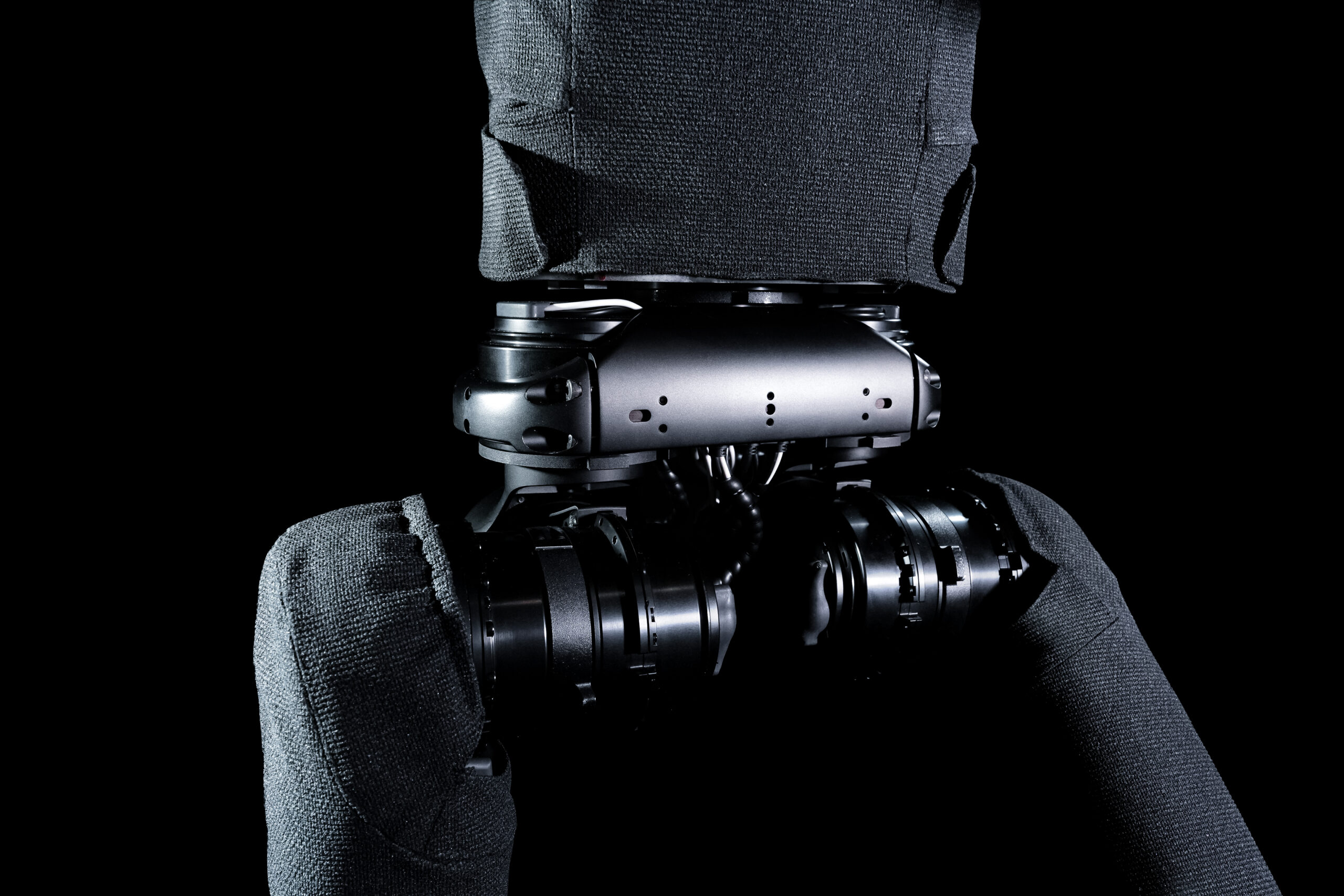

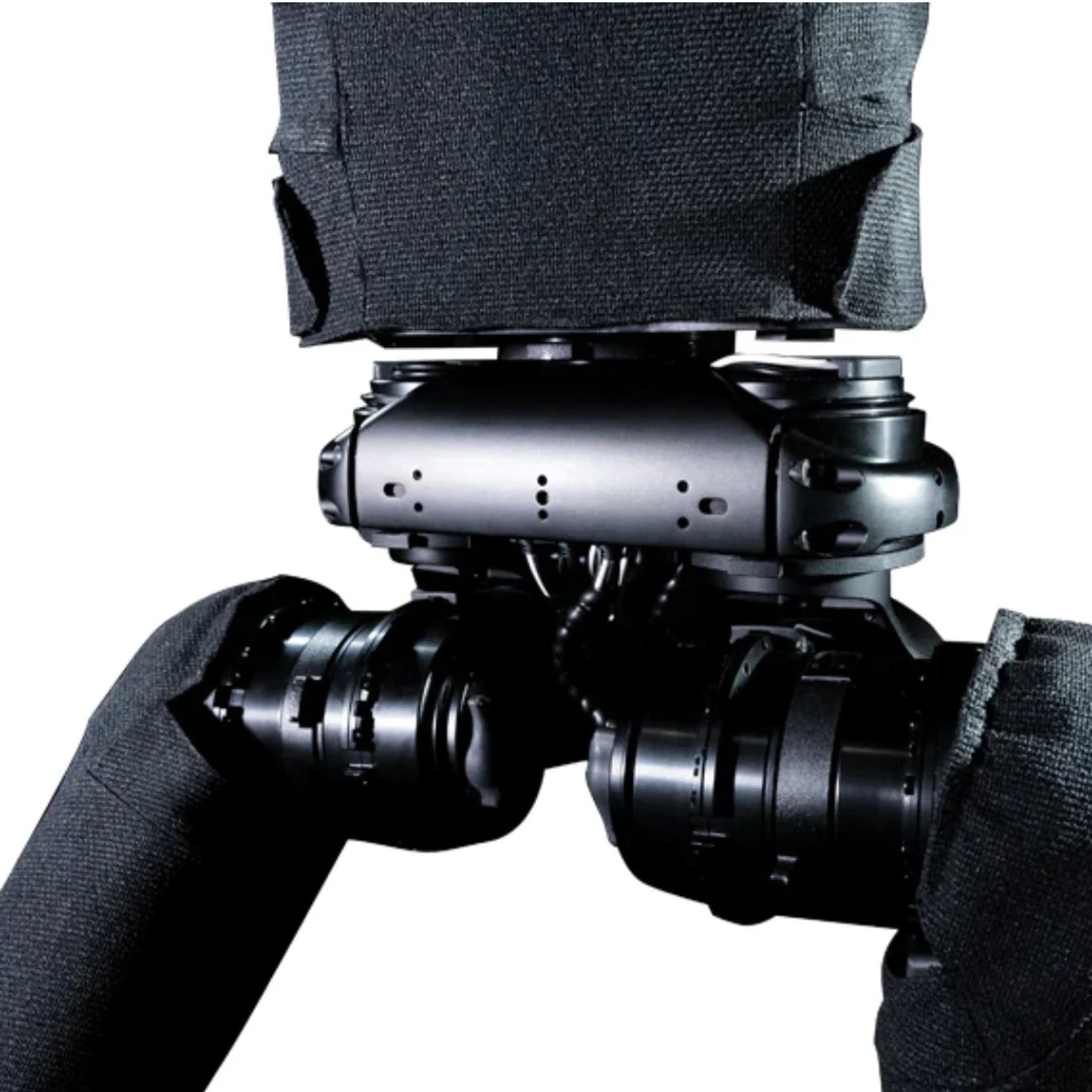

In addition, the humanoid has a high-torque articulation motor and a gear train developed in-house at Unitree. H1 is equipped with a 3D LiDAR sensor and depth camera that provides 360° perception and allows it to scan/map the environment for real-time acquisition of high-precision spatial data.

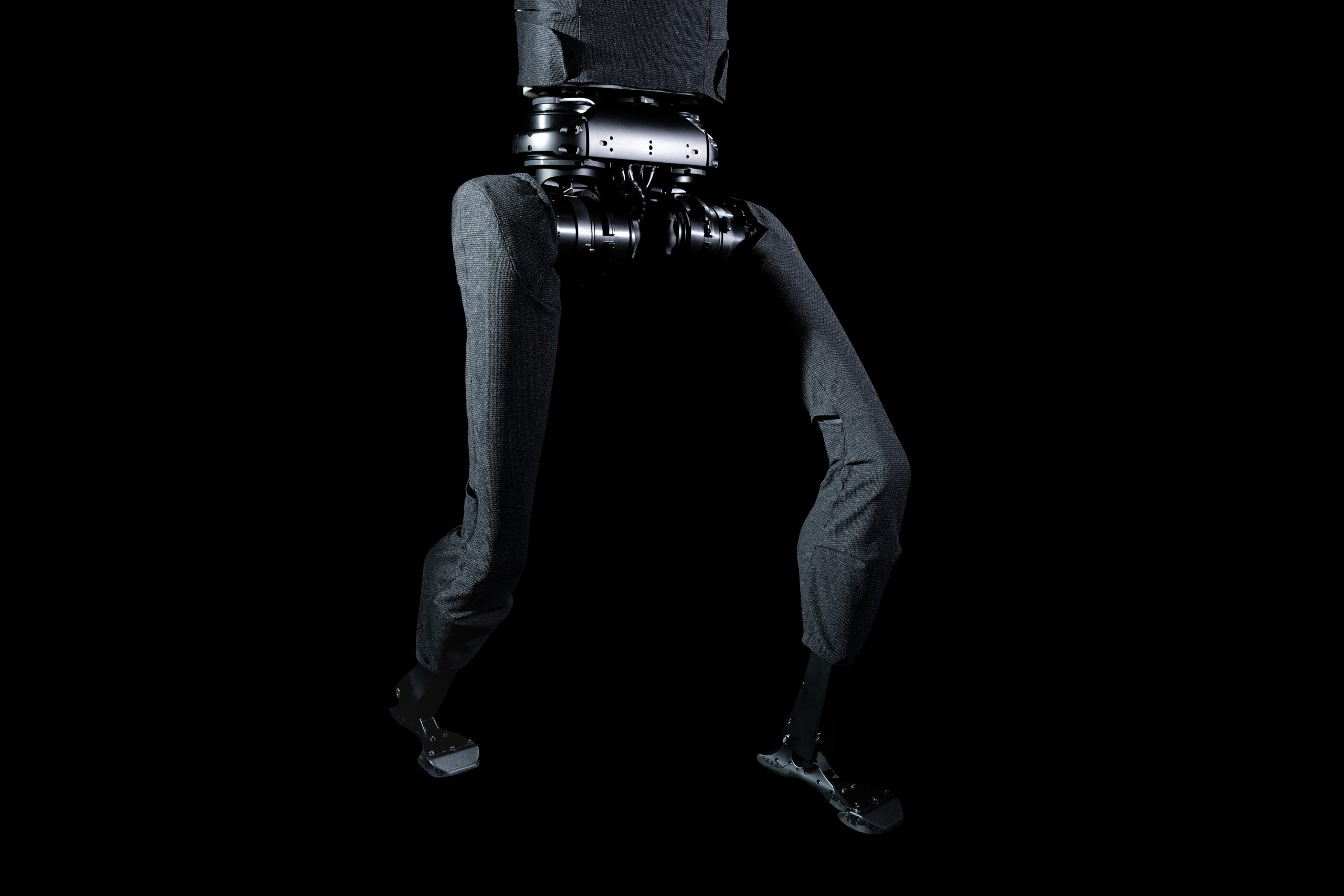

The leg joints have 5 degrees of freedom (DOF) while the arm joints have 4 DOF.
Main features
-
- Depth-of-field camera: Intel Realsense D435i.
- 3D LIDAR: LIVOX-MID360.
- Combined shoulder motors: implementation of 3D degrees of freedom.
- Degrees of freedom in each arm: 4 (extendable).
- Five degrees of freedom in each leg.
- Speed > 1,5/ms.
- Maximum torque at joints 360 N.m.
- Control and perception computing power: 2 * Intel Core i7-1265U.
- Perception sensor configuration: LiDAR 3D+depth camera.
Applications
-
- R&D
- Freight transport
- Handling
- Inspection
- Security
- Entertainment
| Model Nº | H1 |
| Manufacturer | Unitree |
| Size | (1520+285)mm × 570mm × 220mm |
| Weight | About 47kg |
| Width of the body | 570 m |
| Thickness of the body | 220 m |
| Height of the body | 1560 mm |
| Height of the head | 200 m |
| Arm length | 338 mm |
| Length of forearm | 338 mm |
| Calf length | 400 mm |
| Thigh length | 400 mm |
| Total height | 1760 m |
| Processor | Intel Core i5 (Platform Function), Intel Core i7(User Development) |
| Battery | 15 Ah (0,0864 KWh) |
| Voltage | Max Voltage 67.2V |
| Front camera | Depth camera |
| Laser class | LIDAR 3D |
| Ultimate torque of joint unit | Knee: 360 N. m / Hip: 220 N. m / Ankle: 45 N. m / Arm: 75 N. m |
