Gen3 lite
Manufacturer: Kinova Robotics
6-axis robotic arm.
Estimated delivery time: 4-5 weeks.
*AVAILABLE ONLY IN SPAIN.

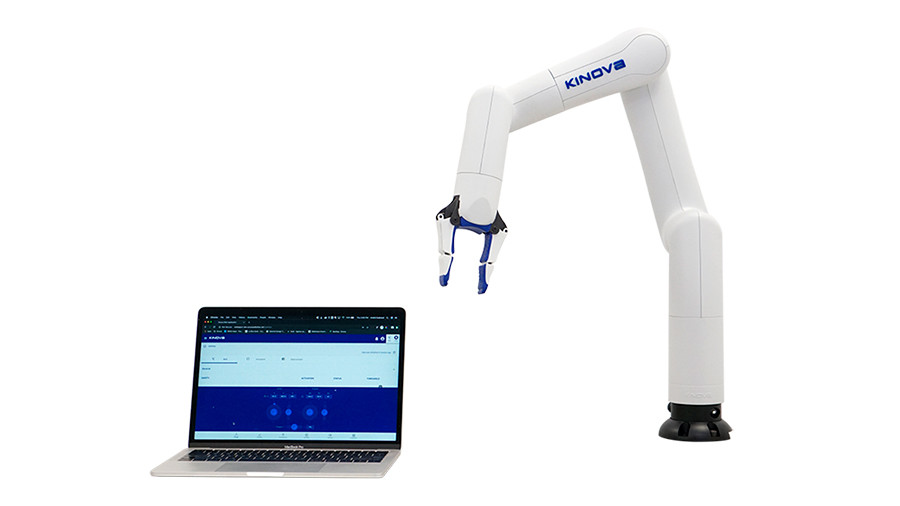

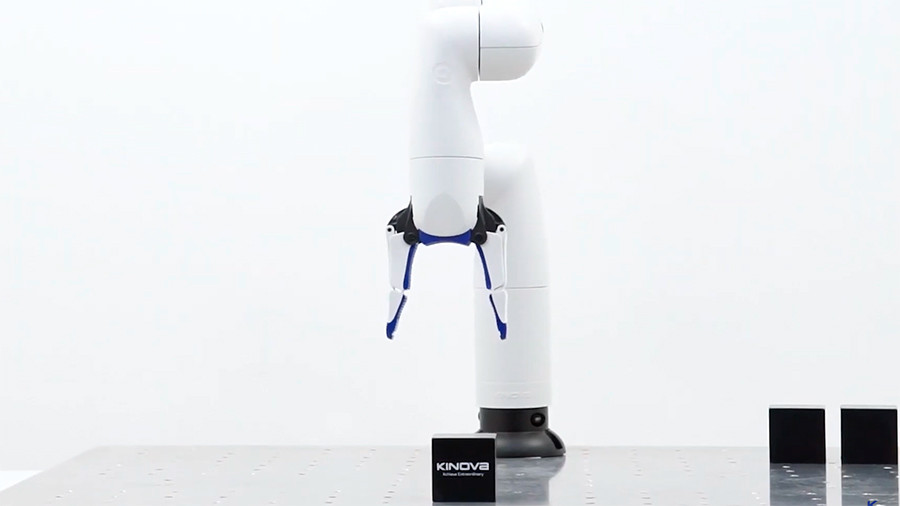

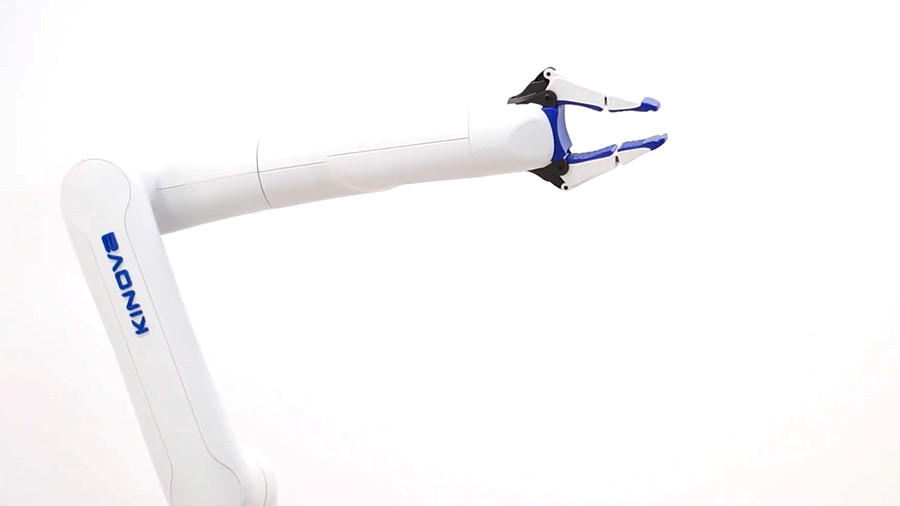

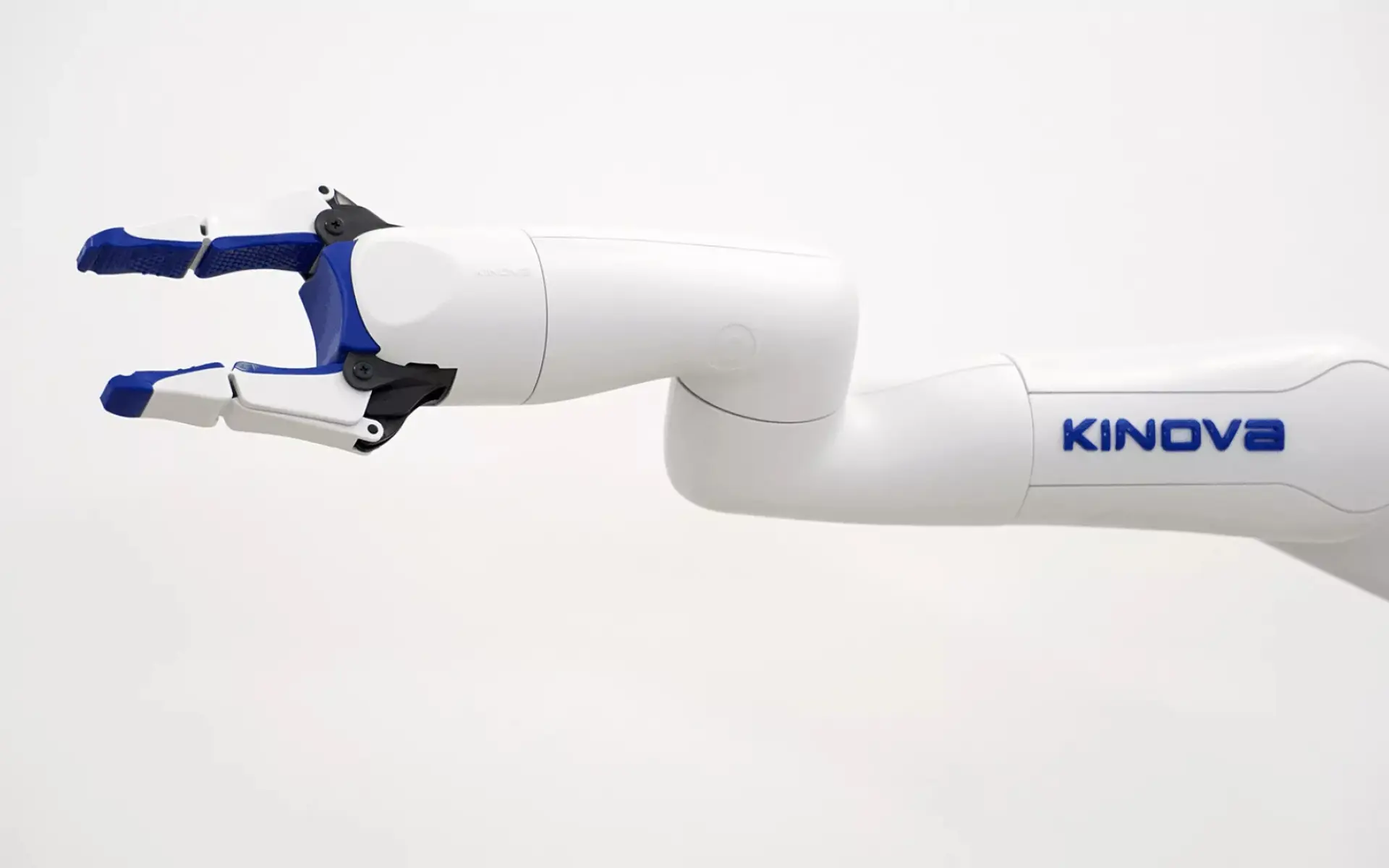

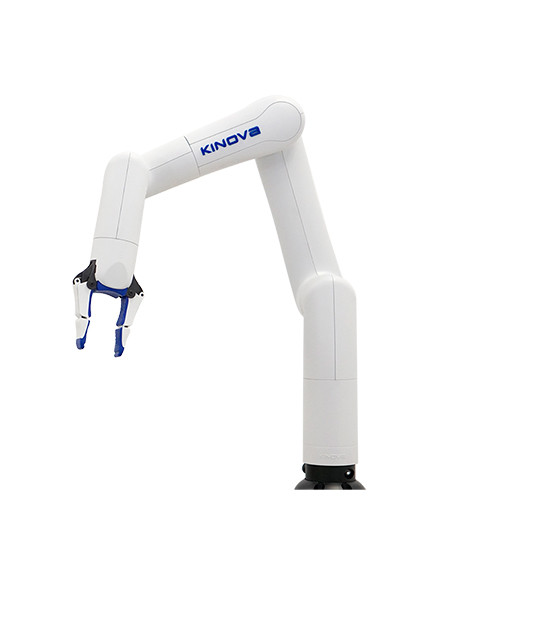

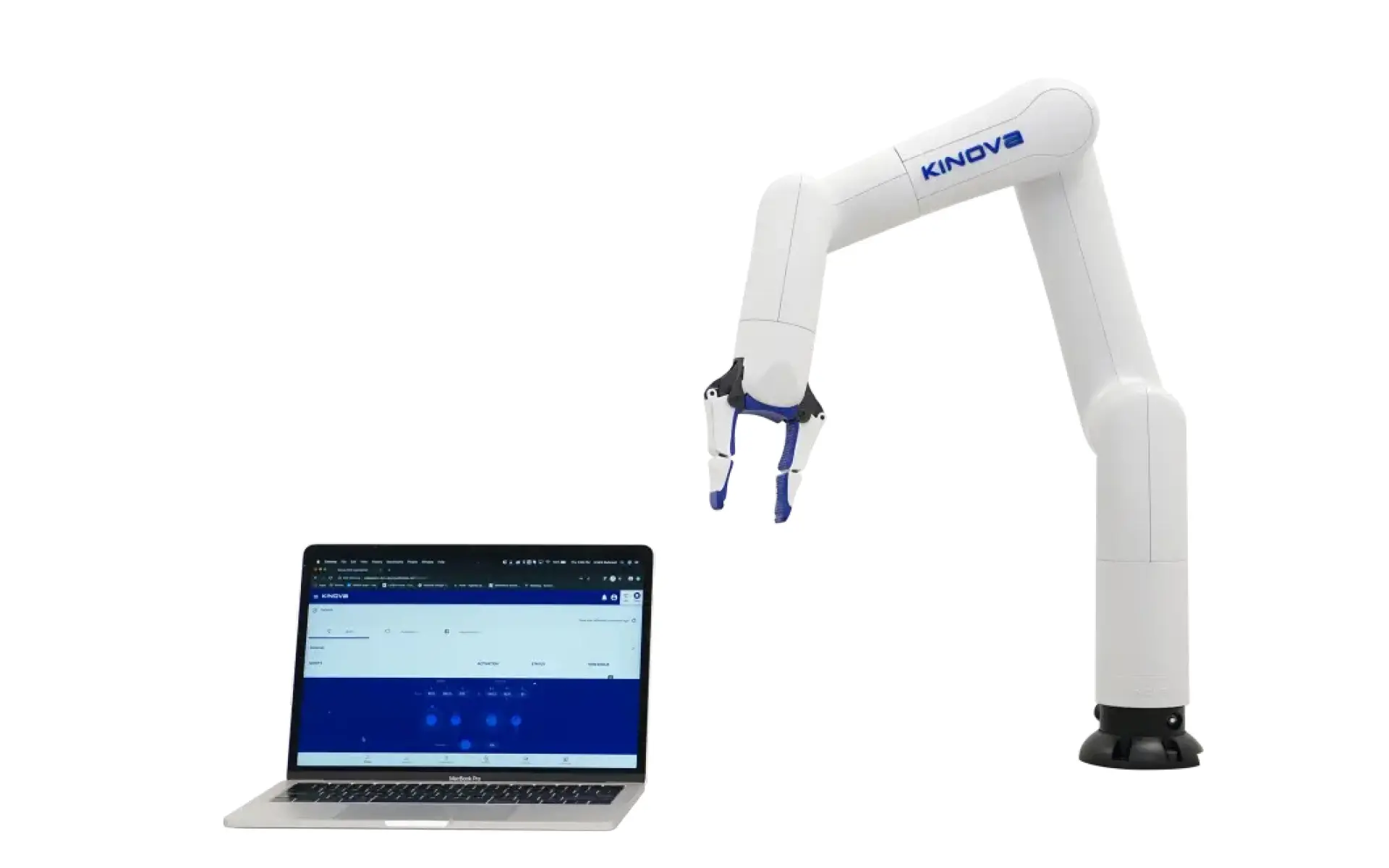

Kinova’s GEN3 Lite is a compact, lightweight and versatile robot arm designed for task automation in industrial and research environments.
With a modular design and high customisability, it is ideal for manipulation and collaboration applications in confined spaces.
Unlike other models, this arm does not require complex integration, making it easy to deploy.
Main features
-
- Set up in less than 30 minutes.
- Simple connectivity (USB, Ethernet, RNDIS).
- Efficient, transparent actuators with an embedded controller.
- High-level and low-level control 1 kHz low-level closed-loop control.
- Protection zones.
Applications
-
- Assembly on production lines.
- Handling of delicate parts.
- Research.
| Manufacturer | Kinova Robotics |
| Model Nº | Gen3 Lite |
| Interface | USB-A, micro USB, Ethernet, Wi-Fi |
| Communication Protocol | 1 x 100 Mbps Ethernet |
| Temperature | 0°C to +40°C |
| Weight | 5,4 kg |
| Voltage | 18 to 30 VDC, 24 VDC nominal |
| Enclosure class | IP22 |
| Payload | 600 g (mid-range) | 500 g (full-range) |
| Materials | Carbon fiber Aluminium |

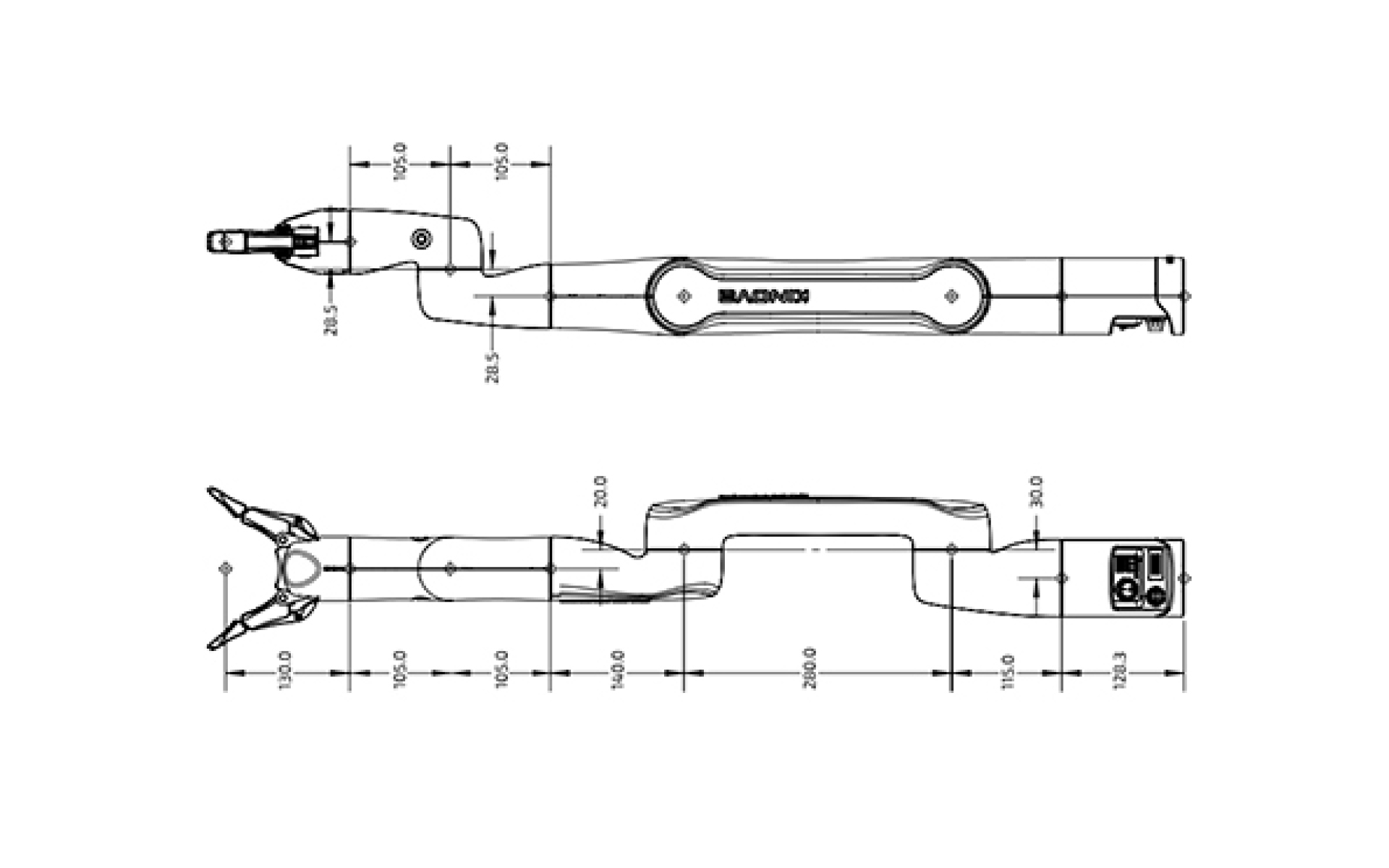

| Reach | Maximum reach 760 mm |
Official ROS Packages:
Related products

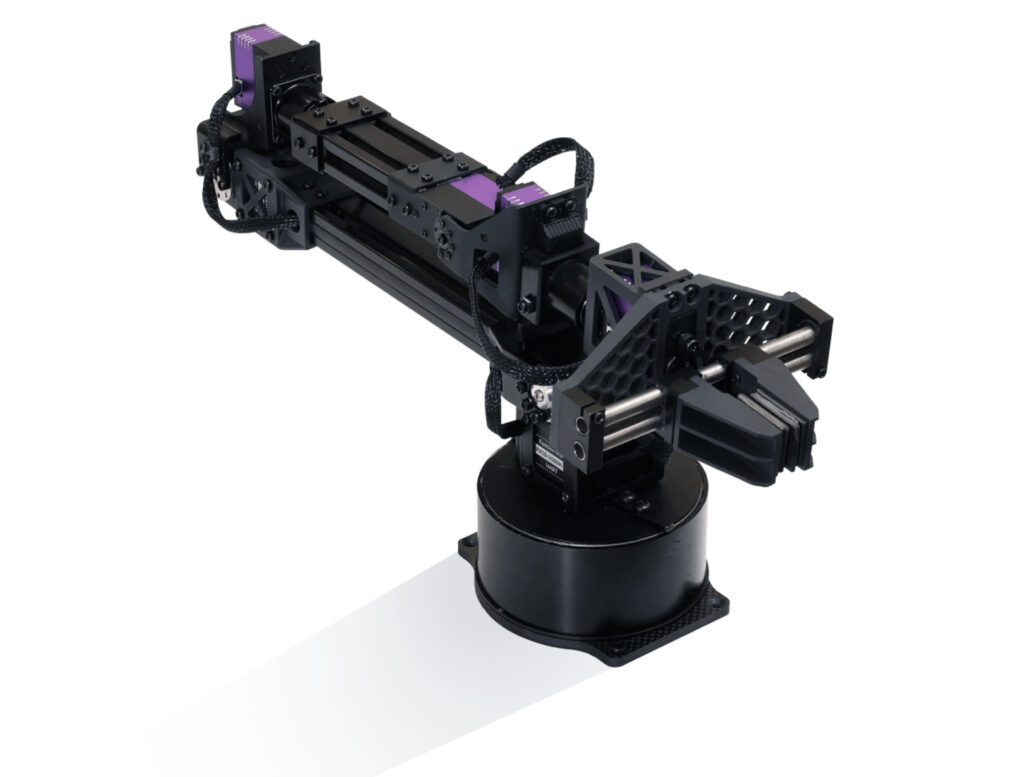

D1-T
