Co-act EGP-C 40-N-N
Manufacturer: Schunk
Robotic gripper.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily. Please, consult us.

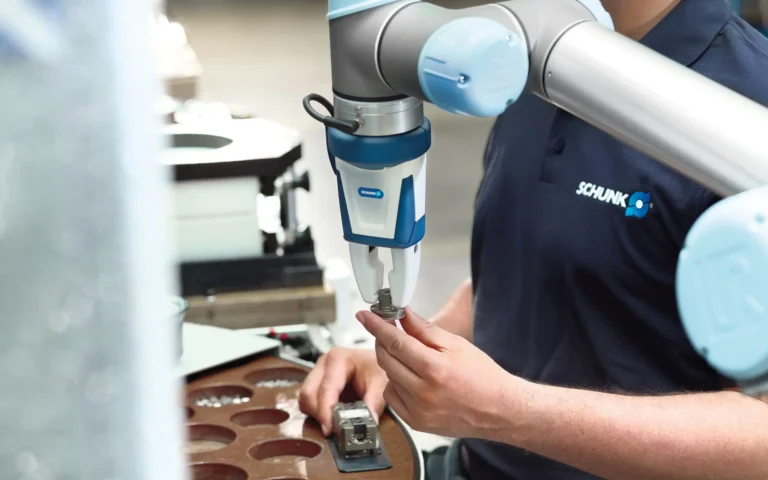

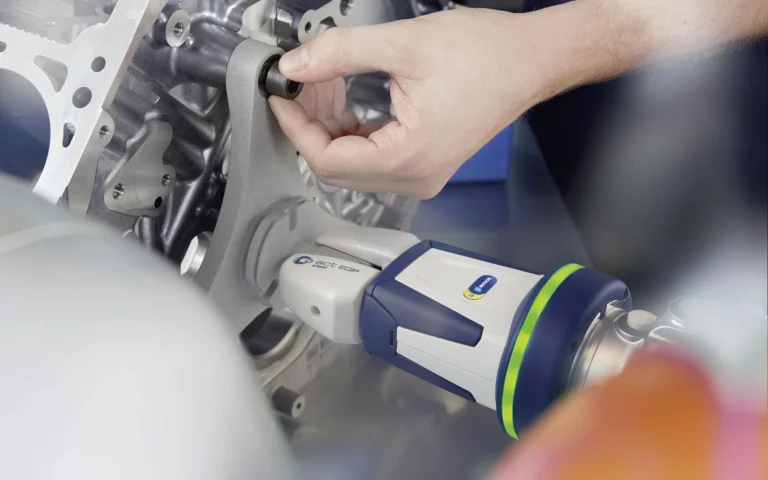

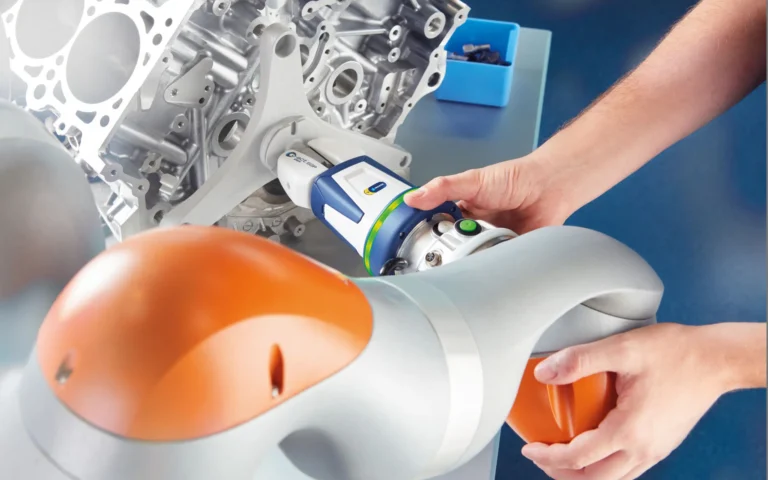

The SCHUNK Co-Act EGP-C 40-N-N is an electric parallel gripper designed for collaborative applications, focusing on handling operations with small workpieces.
It offers a gripping force of up to 140 N and a stroke of 6 mm per gripper finger. Its compact and lightweight design makes it ideal for collaborative robots with reduced payload capacity.
The gripper is safety certified for direct human interaction and is easy to integrate thanks to its standard interface. In addition, its intelligent control system allows precise force and speed adjustments, adapting to various handling tasks.
Main features
-
- Collaborative.
- Easy installation.
- Compact design.
- Precise control.
Applications
-
- Collaborative applications.
- Small parts handling.
- Assembly.
| Manufacturer | Schunk |
| Model Nº | Co-act EGP-C |
| Temperature | 5°C - 55°C |
| Weight | 0,62 kg |
| Scan Angle | 30º |
| Repeatability | 0,02 mm |
| Compatible robot | UR 3/5/10 |
| Robot flange | Standard flange |
| LED strip light | Integrated |
| Displayable colors | Green, yellow, red |
| Integrated sensors | Yes, inductive in two directions |
| Length X | 93,8 mm |
| Width Y | 90,2 mm |
| Height Z | 123 mm |
| Stroke per jaw | 6 mm |
| Min. gripping force | 35 N |
| Max. gripping force | 140 N |
| Min. force per jaw | 17,5 N |
| Max. stroke per jaw | 70 N |
| Recommended workpiece weight | 0,7 kg |
| Closing time | 0,2 s |
| Opening time | 0,2 s |
| Max. permissible finger length | 50 mm |
| Max. permissible mass per finger | 0,08 kg |
