2FG7
Manufacturer: OnRobot
Electric gripper.
Estimated delivery time: 1 week.
The ROS drivers of this product aren’t available yet, but it can be integrated with all major robot brands very easily.
If this is not available, the components must be added: Quick Changer and Tool Flange for the correct operation of the gripper.
3.295,00 €

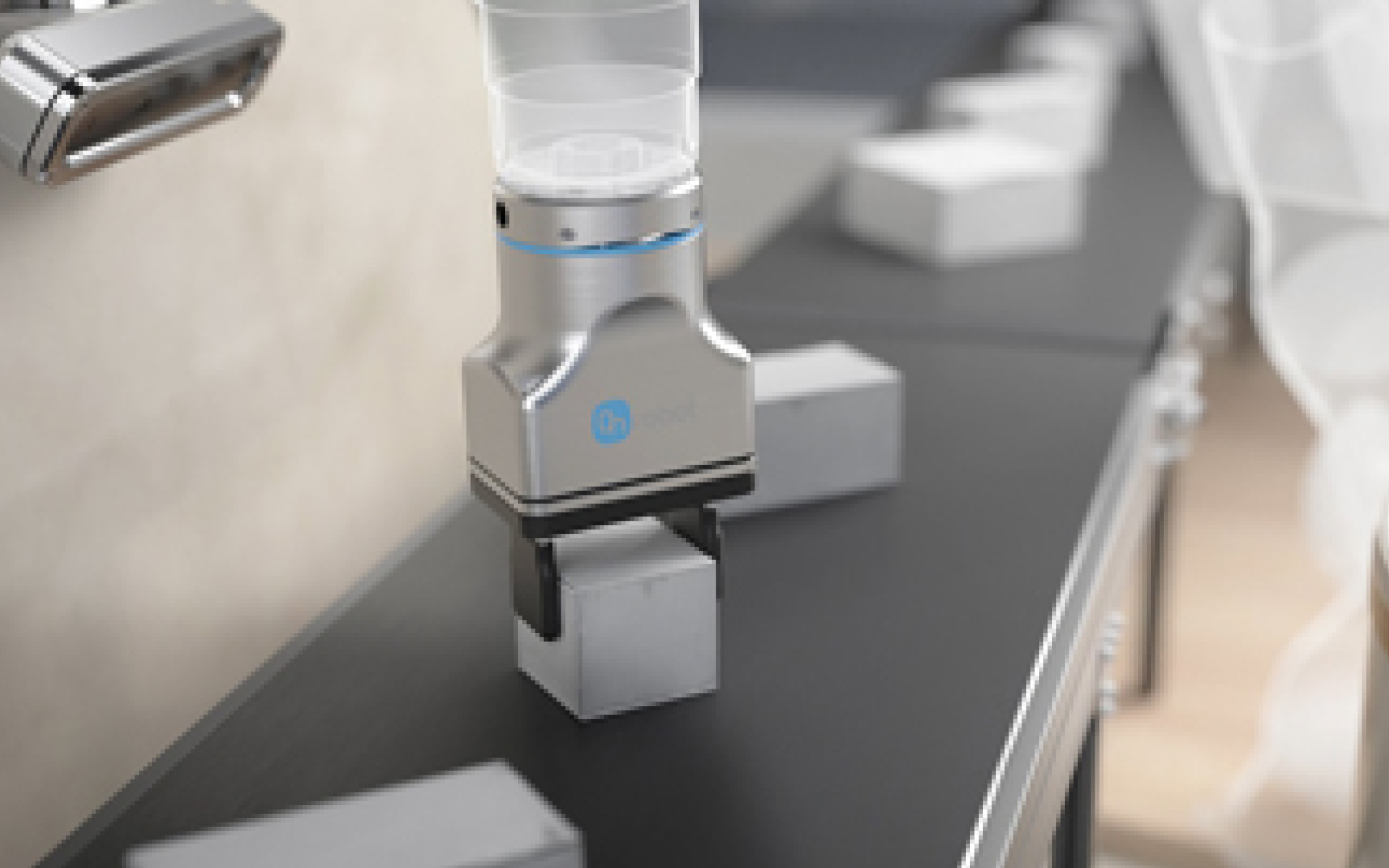

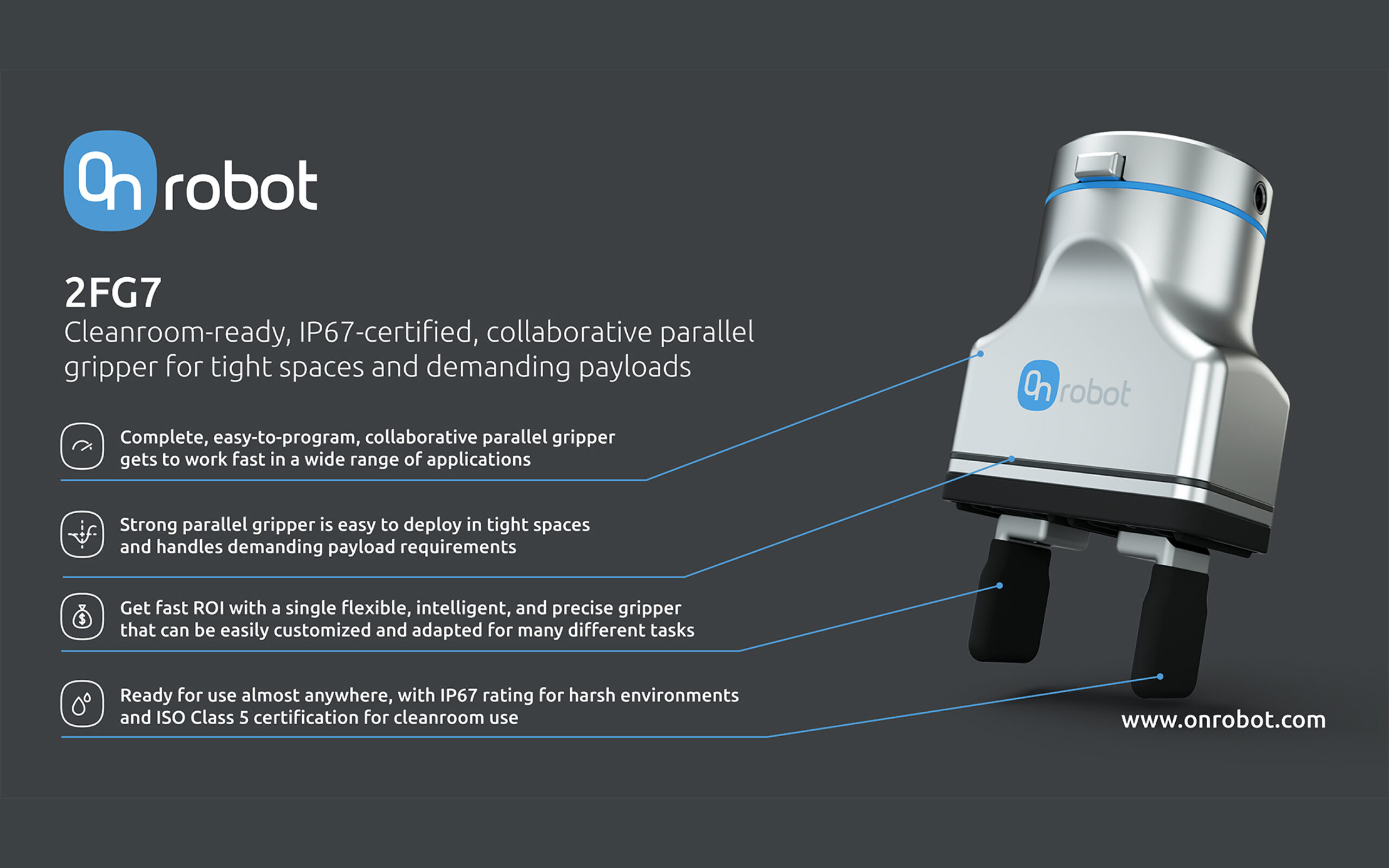

The 2FG7 is a low-cost, collaborative, electric parallel gripper that is ready to be deployed quickly and easily without the need for specialised engineering for installation, programming and maintenance.
This OnRobot gripper has a compact design, suitable for use in applications where space is limited. With a maximum load of 11 kg and a gripping force of 20 N to 140 N, it is capable of handling workpieces of various sizes and shapes with precision.
In addition, it offers a high repeatability of ±0.01 mm, ensuring consistency in repetitive tasks.
Main features
-
- Easy integration and programming.
- Low cost.
- Compact size.
- IP67.
Applications
-
- Material handling.
- Machinery maintenance.
- Component assembly.
| Model Nº | 2FG7 |
| Manufacturer | OnRobot |
| Size | 144 x 90 x 71 mm |
| Weight | 1,1 Kg |
| Enclosure class | IP67 |
| Gripper strength | 20 - 140 N |
| Payload | 11 kg |
| Reach | 38 mm |
| Power input | 20 -25 V |
| Temperature | 0ºC - 60ºC |
