Showing 1–12 of 17 results

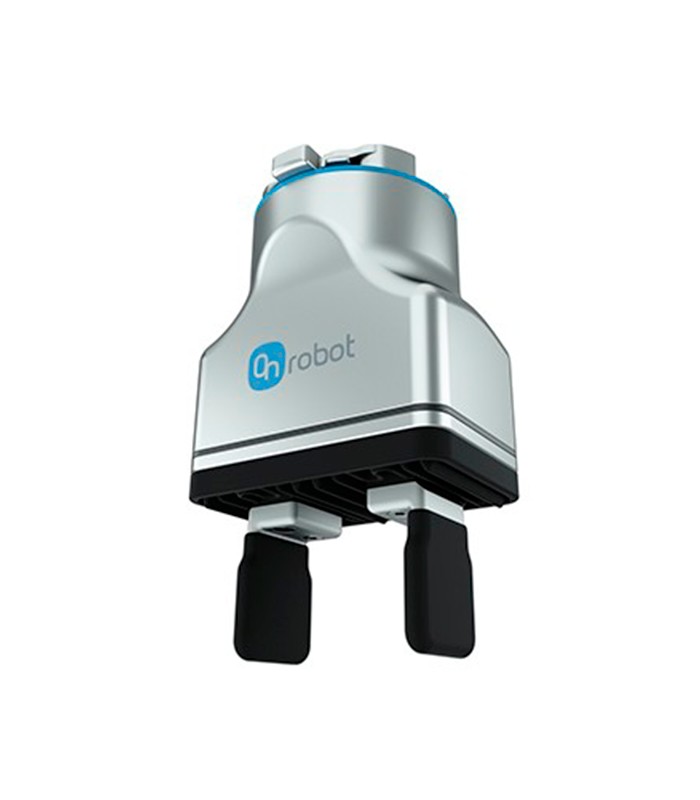

2FGP20
In stock
| Weight | 8,5 kg |
|---|---|
| Dimensions | 29 × 38 × 20 cm |
| Manufacturer |
OnRobot |
| Size |
400 x 121.6 x 188 mm |
| Weight |
3,7 kg |
| Payload |
20 kg |
| Enclosure class |
IP54 |
| Temperature |
0ºC – 60ºC |
| Drives |
Integrated, electric BLDC |
| Vacuum |
5 % – 80 % Vacuum -0.05 – -0.810 Bar 1.5 – 24 inHg |
| Power supply |
Min 20.4 V / Typical 24 V / Max 28.8 V |
| Gripping time |
0,25 s |
| Releasing time |
0,4 s |
Co-act EGP-C 40-N-N
In stock
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Manufacturer |
Schunk |
| Model Nº |
Co-act EGP-C |
| Temperature |
5°C – 55°C |
| Weight |
0,62 kg |
| Scan Angle |
30º |
| Repeatability |
0,02 mm |
| Compatible robot |
UR 3/5/10 |
| Robot flange |
Standard flange |
| LED strip light |
Integrated |
| Displayable colors |
Green, yellow, red |
| Integrated sensors |
Yes, inductive in two directions |
| Length X |
93,8 mm |
| Width Y |
90,2 mm |
| Height Z |
123 mm |
| Stroke per jaw |
6 mm |
| Min. gripping force |
35 N |
| Max. gripping force |
140 N |
| Min. force per jaw |
17,5 N |
| Max. stroke per jaw |
70 N |
| Recommended workpiece weight |
0,7 kg |
| Closing time |
0,2 s |
| Opening time |
0,2 s |
| Max. permissible finger length |
50 mm |
| Max. permissible mass per finger |
0,08 kg |
EGK 25-IL-M-B
In stock
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Manufacturer |
Schunk |
| Model Nº |
EGK 25-IL-M-B |
| Height Z |
78 mm |
| Length X |
83 mm |
| Width Y |
62 mm |
| Weight |
0,62 kg |
| Temperature |
5°C – 55°C |
| Max. gripping force |
50 N |
| Min. gripping force |
20 N |
| Stroke per jaw |
26,5 mm |
| Voltage |
24 V |
| Enclosure class |
Electronic system: IP67 Guides/Jaws: IP20 |
| Max. permissible finger length |
70 mm |
| Max. permissible mass per finger |
0,13 kg |
| Closing time |
0,37 s |
| Opening time |
0,37 s |
EGP
In stock
| Weight | 1,500000 kg |
|---|---|
| Dimensions | 17,000000 × 12,000000 × 8,000000 cm |
| Manufacturer |
Schunk |
| Model Nº |
EGP |
| Weight |
Consult according to specific model |
| Temperature |
5°C – 55°C |
| Enclosure class |
IP30 |
| Current |
0,14 A |
| Voltage |
24 V |
| Max. stroke per jaw |
3 – 10 mm (depending on the model) |
| Min. gripping force |
40 – 150 N (depending on the model) |
| Max. gripping force |
40 – 150 N (depending on the model) |
| Recommended workpiece weight |
Up to 1,3 kg (depending on the model) |
| Max. permissible finger length |
Up to 50 mm or more (depending on the model) |
| Max. permissible mass per finger |
Consult according to specific model |
| Closing time |
0,2 s |
| Opening time |
0,2 s |
| Repeatability |
0,02 mm |
| Integrated sensors |
Position sensors |
| Size |
Consult according to specific model |
EGS 25-N-N-B
In stock
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Manufacturer |
Schunk |
| Model Nº |
EGS 25-N-N-B |
| Ambient illuminance |
5º C – 55ªC |
| Weight |
0,45 kg |
| Voltage |
24 V |
| Current |
Max: 1,2 A – Nominal: 0,8 A |
| Length X |
69,8 mm |
| Width Y |
45 mm |
| Height Z |
88,8 mm |
| Stroke per jaw |
3 mm |
| Min. gripping force |
15 N |
| Max. gripping force |
30 N |
| Recommended workpiece weight |
0,15 kg |
| Max. permissible finger length |
32 mm |
| Max. permissible mass per finger |
0,02 kg |
| Opening time |
0,05 s |
| Closing time |
0,05 s |
EGU 50-PN-N-B
In stock
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Manufacturer |
Schunk |
| Model Nº |
EGU 50-PN-N-B |
| Temperature |
5°C – 55°C |
| Weight |
1,44 kg |
| Length X |
122 mm |
| Height Z |
88 mm |
| Width Y |
72 mm |
| Enclosure class |
Electronics: IP67 Guide/base jaws: IP40 |
| Repeatability |
Repeat accuracy (gripping): 0.02 mm Repeat accuracy (positioning, unidirectional): 0.05 mm Repeat accuracy (positioning, bi-directional): 0.15 mm |
| Interface |
PROFINET |
| Stroke per jaw |
51 mm |
| Min. gripping force |
150 N |
| Max. gripping force |
300 N |
| Max. permissible finger length |
80 mm |
| Recommended workpiece weight |
0,4 kg |
| Opening time |
0,8 s |
| Closing time |
0.8 s |
Electric Screwdriver
In stock
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Manufacturer |
OnRobot |
| Model Nº |
V 1.5 |
| Size |
308 x 86 x 114 mm |
| Accuracy |
0,04 – 3 Nm |
| Temperature |
5º C – 50º C / 95% |
| Operating Temperature |
0 °C – 50 °C |
| Power supply |
Min 20 V / Typical 24 V / Max 25 V |
| Storage Temperature |
0 °C – 60 °C |
| Torque |
0,15 – 5 Nm |
| Weight |
2,5 kg |
| Current consumption |
Min: 75 mA – Max: 4500 mA |
| Enclosure class |
IP54 |
EMH-RP 036-B
In stock
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Manufacturer |
Schunk |
| Model Nº |
EMH-RP 036-B |
| Temperature |
5°C – 50°C |
| Enclosure class |
IP52 |
| Weight |
1 kg |
| Length X |
64 mm |
| Height Z |
128 mm |
| Width Y |
64 mm |
| Magnetic surfaces |
6,08 cm² |
| Response Time |
300 ms |
| Strength |
530 N |
| Voltage |
24 V |
| Current |
Max: 3,1 A / Nominal: 0,15 A |
Gecko SP
In stock
| Weight | 1,5 kg |
|---|---|
| Dimensions | 17 × 12 × 8 cm |
| Manufacturer |
OnRobot |
| Model Nº |
Gecko Single Pad (SP) |
| Size |
69 x 71 mm |
| Payload |
1 kg / 3 kg / 5 kg |
| Weight |
0,267 kg / 0,297 kg / 0,318 kg |
| Enclosure class |
IP42 |
| Operating Temperature |
0 °C – 50 °C |
| Storage Temperature |
-30 °C – 150 °C |
| Gripper - Detachment time |
100-1000 |
| Pads - Change-out interval |
~200,000 cycles |
| Pads - Robotic cleaning interval and % recovery |
Variable / 100% |
| Pads - Material |
Proprietary silicone blend |
