LMS100
Manufacturer: SICK
Laser range finder
Estimated order delivery time: 1 week
EL-SE-L-LMS100-10000
New product
Optional components
Product Options
Sick LMS100 laser scanners are economical, high-performance measurement sensors.
Main features:
- Consistent reliability
- High accuracy
- Outdoors
Applications
- Collision avoidance for automated guided vehicles (AGV)
- Object measurement and detection
- Monitoring of objects in the field of building automation
- Pallet detection
- Navigation of automated guided vehicles (AGV)

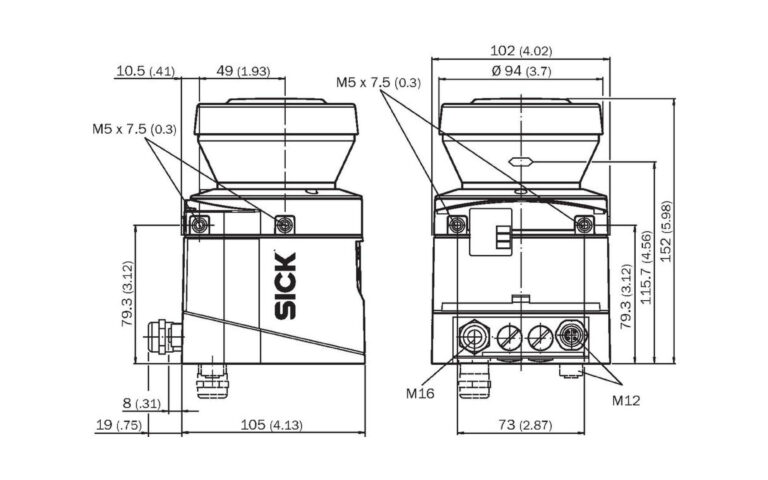

Dimensional Drawing

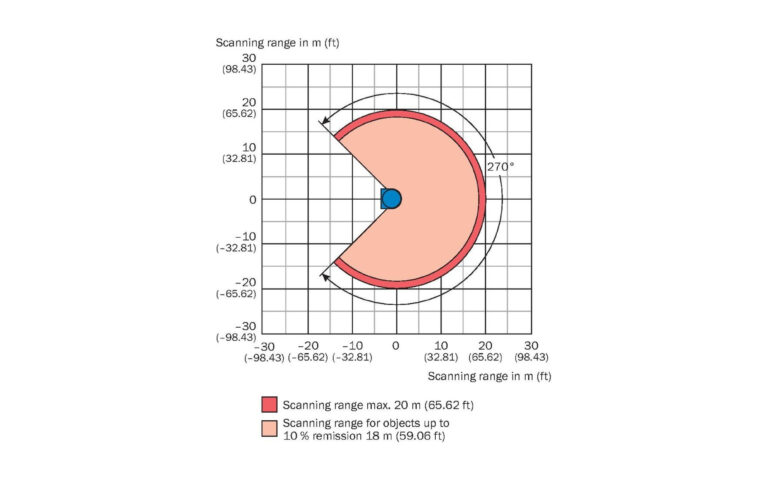

Operating range diagram
| Model Nº | LMS 100 |
| Accuracy | +- 30 mm |
| Interface | Ethernet, Serial, CAN-Bus |
| Ambient temperature / humidity | 0º to +50ºC |
| Size | 105 x 102 x 162 mm |
| Weight | 1.1 Kg |
| Voltage | 10.8 - 30 VDC |
| Resolution angle | 0.25, 0.5 |
| Range | 0.5 - 20 m |
| Scan Angle | 270° |
| IP | IP65 |
| Scan frecuency | 25 Hz /50 Hz |
| Power Comsution | 60 W |
Official ros-package:
- http://wiki.ros.org/LMS1xx
- Sources: https://github.com/clearpathrobotics/lms1xx
- Supported versions: Groovy, Hydro, Indigo, Jade, Kinetic
