Ready for the integration of a Universal Robots e-Series arm
Tienda
Featured Robots
Airy
Available on backorder
| Weight | 1 kg |
|---|---|
| Dimensions | 34,000000 × 39,000000 × 39,000000 cm |
| Manufacturer |
Robosense |
| Model Nº |
Airy |
| Temperature |
-40°C ~ +60°C |
| Size |
Ø 60 mm |
| Weight |
230 ± 20 g |
| Voltage |
9 ~32 V |
| Range |
60m (30m @10% NIST) |
| Resolution angle |
Horizontal: 0.4º | Vertical: 0.947º |
| Enclosure class |
IP67, IP6K9K |
| Power Consumption |
8W (Typical) |
| Ethernet |
100 MBps |
| Field of view (horizontal) |
0~360° |
| Field of view (vertical) |
0~90° |
| Accuracy |
1.5 cm (1σ) |
D435f
Available on backorder
| Weight | 4,000000 kg |
|---|---|
| Dimensions | 22,000000 × 33,000000 × 23,000000 cm |
| Manufacturer |
Intel® RealSense™ |
| Model Nº |
D435f |
| Size |
90 mm × 25,8 mm × 25 mm |
| Field of View |
87° × 58° (FOV (H x V) is measured +/-3° of stated value) |
| Environment |
Indoors/Outdoors |
| Connectivity |
USB-C * 3.1 Gen 1 |
| Image Sensor |
Rolling Shutter |
| Depth Image Size |
1280×720 |
| RGB Image Size |
1920×1080 |
| RGB FOV |
86° ±3° × 57° ±3° |
| Frame Rate |
30 fps |
Electric Screwdriver
Available on backorder
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Manufacturer |
OnRobot |
| Model Nº |
V 1.5 |
| Size |
308 x 86 x 114 mm |
| Accuracy |
0,04 – 3 Nm |
| Temperature |
5º C – 50º C / 95% |
| Operating Temperature |
0 °C – 50 °C |
| Power supply |
Min 20 V / Typical 24 V / Max 25 V |
| Storage Temperature |
0 °C – 60 °C |
| Torque |
0,15 – 5 Nm |
| Weight |
2,5 kg |
| Current consumption |
Min: 75 mA – Max: 4500 mA |
| Enclosure class |
IP54 |
G1
Available on backorder
| Weight | 0,000000 kg |
|---|---|
| Dimensions | 0,000000 × 0,000000 × 0,000000 cm |
| Model Nº |
G1 |
| Manufacturer |
Unitree |
| Dimensions (folded) |
690 x 450 x 300 mm |
| Dimensions (unfolded) |
1.270 x 450 x 200 mm |
| Height |
1.320 mm |
| Weight |
~35 kg |
| Speed |
2 m/s |
| Processor |
8-core high-performance CPU |
| Autonomy |
2 h |
| Battery |
9000mAh |
| Front camera |
Intel RealSense D435 |
| LIDAR |
LIVOX-MID360 |
| Load capacity |
2 kg |
| Microphones |
Yes |
| DOF |
G1: 23 DOF |
Gen2
Available on backorder
| Weight | 25 kg |
|---|---|
| Dimensions | 45 × 65 × 35 cm |
| Manufacturer |
Kinova Robotics |
| Model Nº |
Gen2 6 DoF |
| Interface |
RS-485 |
| Weight |
4,4 kg |
| Voltage |
18 – 29 VDC |
| Payload |
2.6 Kg (mid-range continuous payload capabilities) / 2.2 Kg (full-reach peak/temporary payload capabilities) |
| Materials |
Carbon fiber (links), aluminum (actuators) |
| Joint range after start-up (Software limitation) |
+- 27,7 turns |
| Maximun linear arm speed |
20 cm/s |
| Average power |
25 W (5W in Standby) |
| Water resistance |
IPX2 |
Go2 AIR
Available on backorder
| Weight | 48 kg |
|---|---|
| Dimensions | 74 × 46 × 53 cm |
| Manufacturer |
Unitree |
| Model Nº |
Go2 AIR |
| Size |
70x31x40cm |
| Weight |
15 kg (including battery) |
| Load capacity |
About 7 kg (limit~10kg) |
| Autonomy |
1 – 2 h |
| Communication |
WIFI6 dual-frequency wireless 802.11ax Bluetooth 5.2/4.2/2.1 |
| Materials |
aluminum alloy + high-strength engineering plastics |
| Max. climbing angle |
30º |
| Power |
About 3000W |
| Scan Angle |
150×170º |
| Speed |
0 ~ 2.5m/s |
| Vertical reach |
body：-48~48° thigh：-200°~90° shank：-156°~-48° |
| Voltage |
28V~33.6V |
| Battery |
Standard: 8000mAh |
H1
Available on backorder
| Weight | 50 kg |
|---|---|
| Dimensions | 172 × 57 × 22 cm |
| Model Nº |
H1 |
| Manufacturer |
Unitree |
| Size |
(1520+285)mm × 570mm × 220mm |
| Weight |
About 47kg |
| Width of the body |
570 m |
| Thickness of the body |
220 m |
| Height of the body |
1560 mm |
| Height of the head |
200 m |
| Arm length |
338 mm |
| Length of forearm |
338 mm |
| Calf length |
400 mm |
| Thigh length |
400 mm |
| Total height |
1760 m |
| Processor |
Intel Core i5 (Platform Function) ,Intel Core i7(User Development) |
| Battery |
15 Ah (0,0864 KWh) |
| Voltage |
Max Voltage 67.2V |
| Front camera |
Depth camera |
| Laser class |
LIDAR 3D |
| Ultimate torque of joint unit |
Knee: 360 N. m / Hip: 220 N. m / Ankle: 45 N. m / Arm: 75 N. m |
OnRobot Eyes
Available on backorder
| Weight | 4,000000 kg |
|---|---|
| Dimensions | 22,000000 × 33,000000 × 23,000000 cm |
| Manufacturer |
OnRobot |
| Model Nº |
OnRobot Eyes |
| Interface |
USB-C 3.x |
| Voltage |
24V (6.25A) |
| Weight |
0,260 kg |
| Field of View |
69,4 x 42,5 x 77 (+/- 3) |
| Vision |
2.5 D |
| Image Sensor |
Rolling Shutter |
| Resolution |
1280×720 |
| Temperature |
0ºC – 35ºC |
| Enclosure class |
IP54 |

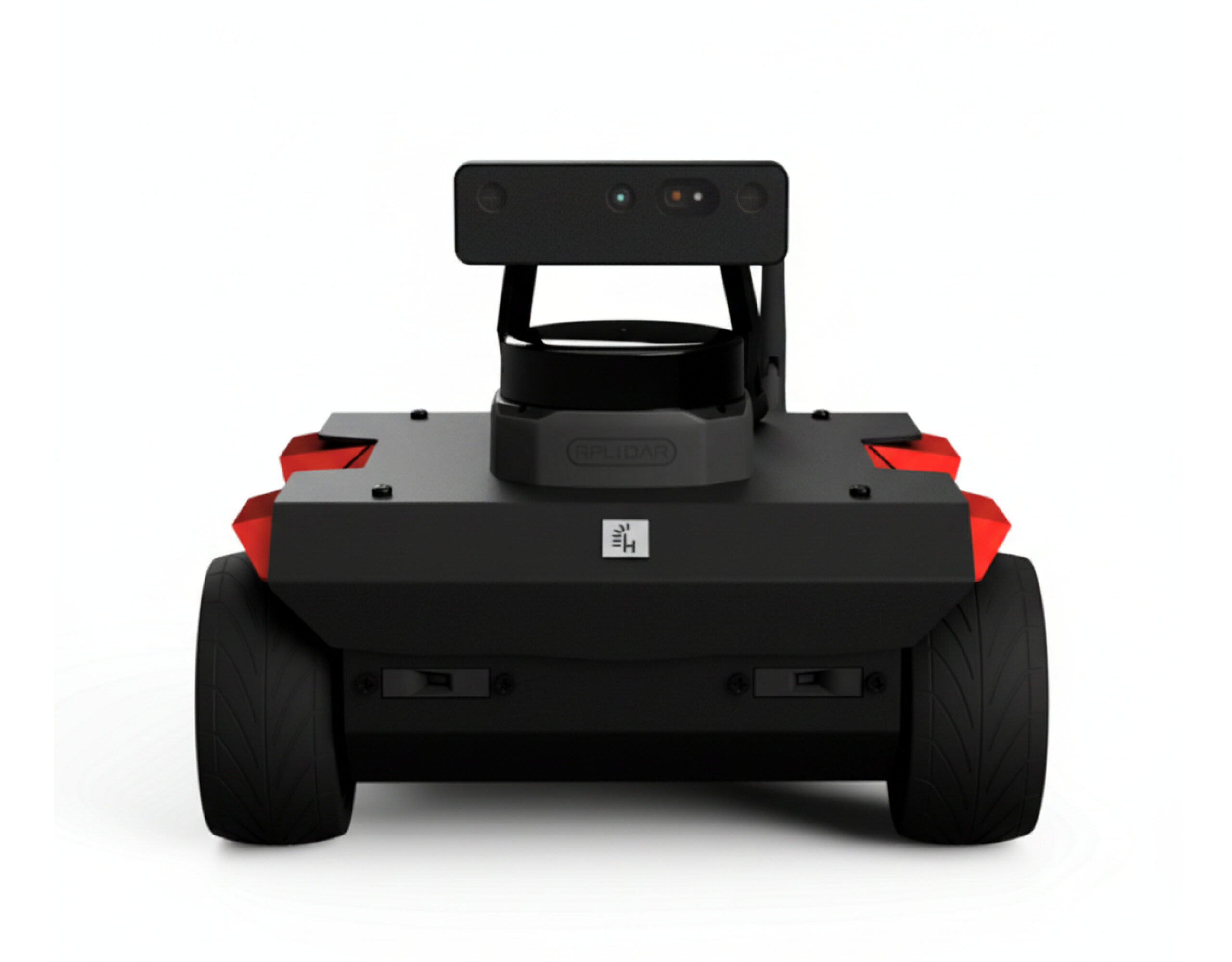

ROSbot 3
Available on backorder
| Weight | 15 kg |
|---|---|
| Dimensions | 45 × 38 × 44 cm |
| Model Nº |
ROSbot 3 |
| Manufacturer |
HUSARION |
| Size |
With camera and LiDAR: 200 x 233 x 197 mm ,Without camera and LiDAR: 200 x 233 x 103 mm ,Without camera: 200 x 233 x 141 mm |
| Weight |
With camera and LiDAR: 2,84 kg ,Without camera and LiDAR: 2,45 kg |
| Speed |
1 m/s |
| Payload |
Up to 5 kg (not in continuous work) |
| Battery |
1,5 – 5 h. |
SoftHand2 Research
Available on backorder
| Weight | 20,000000 kg |
|---|---|
| Dimensions | 45,000000 × 53,000000 × 43,000000 cm |
| Manufacturer |
qb Robotics |
| Model Nº |
qb SoftHand2 Research |
| Communication Protocol |
RS485 |
| Gripping time |
From wide open to clenched fist in 1.1 s |
| Interface |
USB & RS485 |
| Max. gripping force |
62 N |
| Payload |
2 kg (pinch configuration) / 3 kg (grasp configuration) |
